Watts KA2-BD Ball Valve, Union

The Watts KA2-BD is a replacement part for the Watts IntelliFlow automatic washing machine shutoff. It features a rubber seat. Rated to 150 psi and up to 180°F.

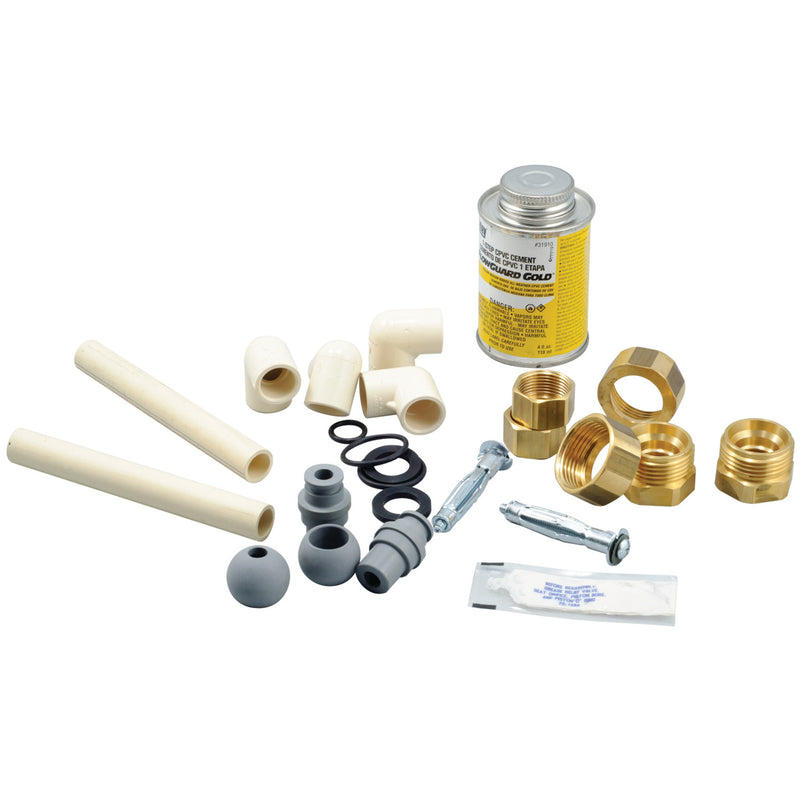

This retrofit mounting kit, model KA2-BD, is specifically used to install the Watts® model A2C-M1 IntelliFlow® automatic washing machine shutoff valve to existing drain installations. This kit can be used for either left, right or center drain installations with straight or angle shutoff valves. This kit contains (2) brass adapters, (2) wall anchors, (4) brass union nuts, (2) CPVC ball, (4) O-rings, (2) rubber gaskets, (4) CPVC 90 degree elbows, (2) CPVC adapters and (1) grease packet.

Features

• Easy installation
• Silent reliable operation
• Replaceable internal strainer screen
• Leak sensor on Intelliflow models
• Includes: Strainer

Common Questions

Is this a complete valve?

No. This is a service part for the Watts IntelliFlow automatic washing machine shutoff — it does not shut water off on its own and is only useful alongside an IntelliFlow valve. Check the model list on the IntelliFlow you own before ordering.

Specifications

• Type: Ball
• Connection: Union
• Seat / Seal Material: Rubber
• Max Pressure (psi): 150
• Pack Quantity: 12
• Country of Origin: United States
• Warranty: 1 Year Limited
• MPN: KA2-BD
• Temperature: up to 180°F
• Certifications: UL
• Lead-Free: No
• Contractor (Bulk) Pack: No
