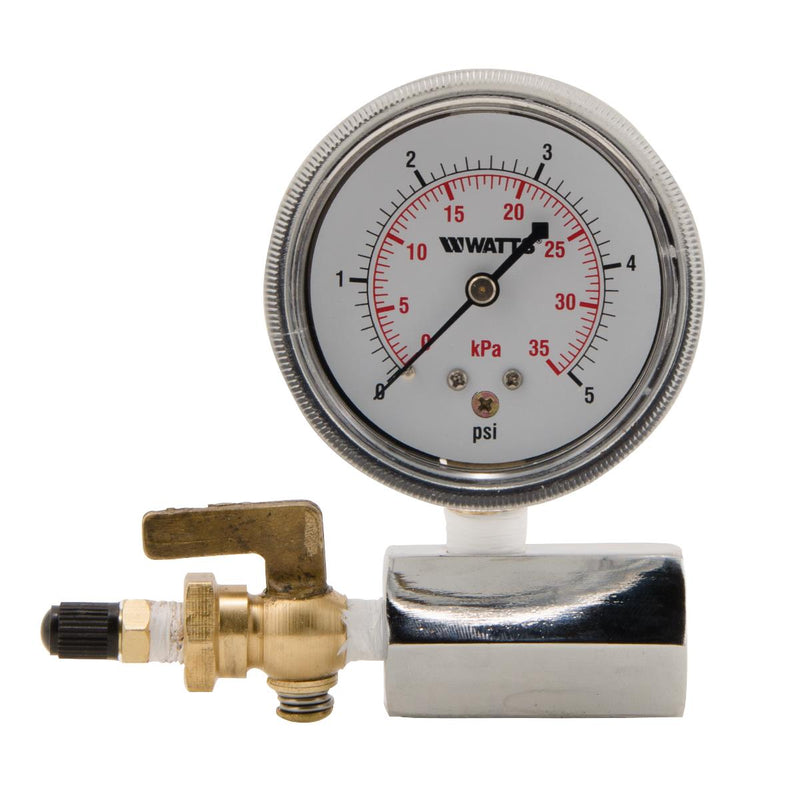

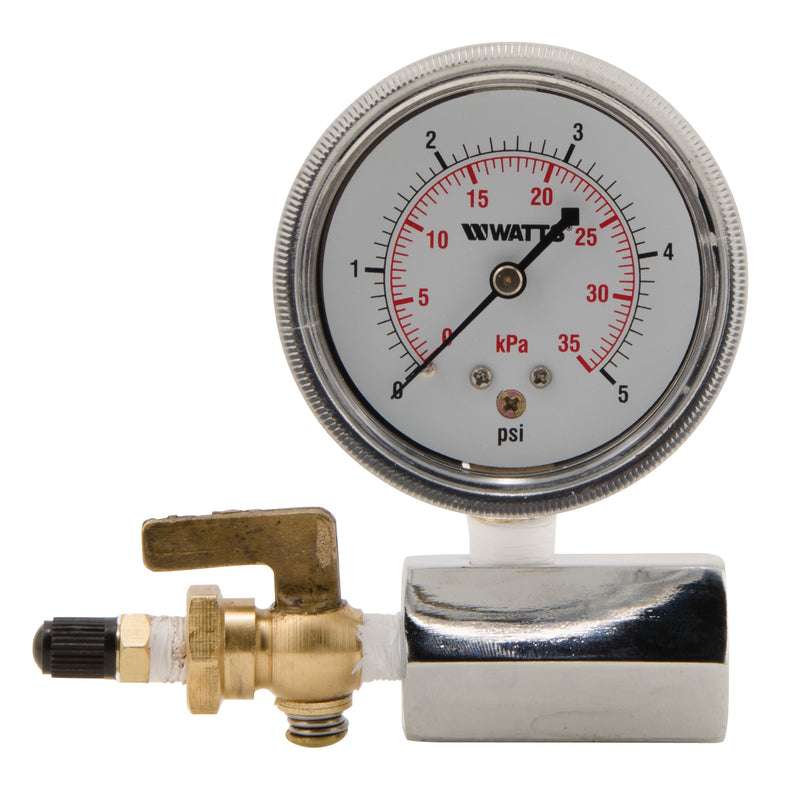

The Watts IWTG-NYC-0-05 is a 3/4" pressure gauge reading 0-05 psi. It features a steel body. Rated to 14°F to 176°F.
This air test assembly gauge, model IWTG-NYC, is used in commercial, residential, and institutional HVAC applications. This gauge consists of a 3/4 inch FPT chrome-plated brass manifold with shutoff valve, steel case, Kostil Polymer window, 3/4 inch FPT x Schrader type air valve with cap connection and copper alloy Bourdon tube pressure element with 2% Accuracy and full range. The pressure rating scale is 0 to 5 psi (0 kPa to 34 kPa).
Features
- Black enamel steel case
- Kostil polymer window
- 2 percent accuracy, full range
- Schrader type air valve with cap
Common Questions
- What is the indicating range?
- The dial reads 0-05 psi. Size the range to your working pressure — an oversized dial reads too coarse to be useful.
Specifications
- Size: 3/4"
- Connection: FNPT
- Connection Gender: Female
- Body Material: Steel
- Application: Air
- Pack Quantity: 20
- Country of Origin: China
- Warranty: 1 Year Limited
- MPN: IWTG-NYC-0-05
- Temperature: 14°F to 176°F
- Certifications: ASME B40.100
- Lead-Free: No
- Type: Pressure Gauge
- Gauge Range: 0-05 psi
Product Information
Dimensions
| Size Nominal | 3/4" | End Connection | FNPT |
| Connection Gender | Female | — | — |
Details
| Series | IWTG-NYC | Body Material | Steel |
| Application | Air | Max Temp °F | 176.0 °F |
| Pack Qty | 20 | Min Temp °F | 14.0 °F |
| Gauge range | 0-05 psi | Tool role | Pressure Gauge |
Certifications & Standards
| ASME B40.100 | — |
Compare with similar products
| Dial Size | — | 2"
| 3"
| 2-1/2"
| 2"
| 2"
|
| Series | IWTG-NYC
| LFDPG-3
| LFDPG-1
| LFDPG-1
| LFDPG-1
| LFDPG-5
|
| Country Of Origin | China
| BG
| BG
| BG
| BG
| BG
|
| Warranty | 1 Year Limited
| 1 Year Limited
| 1 Year Limited
| 1 Year Limited
| 1 Year Limited
| 1 Year Limited
|
| Spec Sheet | ||||||
| Size Nominal | 3/4"
| 1/4"
| 1/4"
| 1/4"
| 1/4"
| 1/8"
|
| Lead Free | — | Yes | Yes | Yes | Yes | Yes |
| End Connection | FNPT
| NPT
| NPT
| NPT
| NPT
| NPT
|
| Body Material | Steel
| ABS
| ABS
| ABS
| ABS
| ABS
|
| Application | Air
| General Service
| General Service
| General Service
| General Service
| General Service
|
| Max Temp °F | 176.0 °F | 176.0 °F | 176.0 °F | 176.0 °F | 176.0 °F | 176.0 °F |
| Certifications | ASME B40.100
| ASME B40.100
| ASME B40.100
| ASME B40.100
| ASME B40.100
| ASME B40.100
|
| Pack Qty | 20
| 100
| 18
| 24
| 36
| 36
|
| Min Temp °F | 14.0 °F | -4.0 °F | -4.0 °F | -4.0 °F | -4.0 °F | -4.0 °F |
