Description

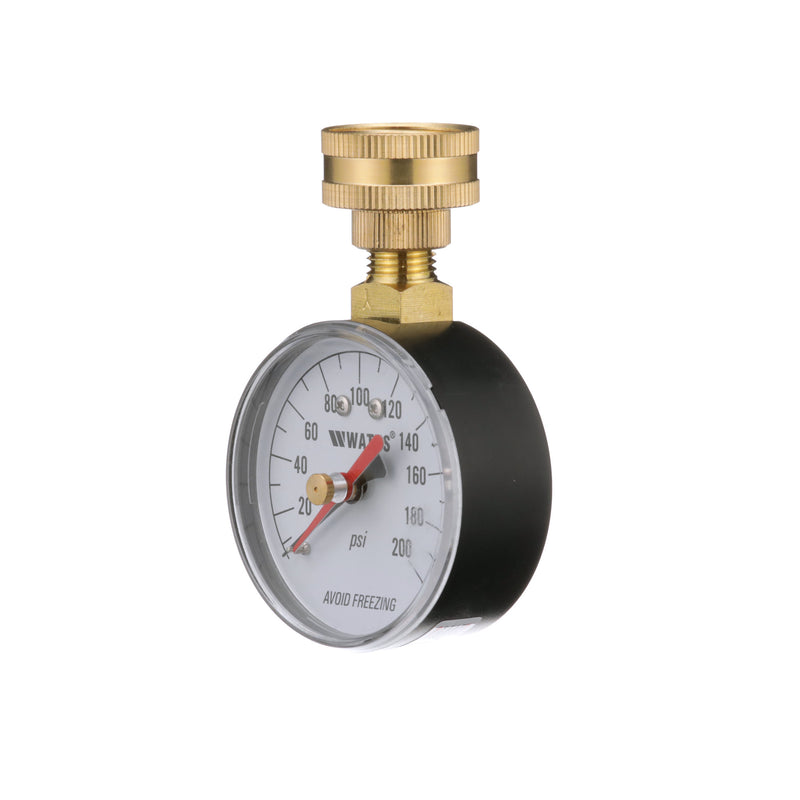

The Watts IWTG is a 3/4" pressure gauge. It features a steel body. Rated to 40°F to 140°F.
This IWTG hose connection gauge is used to test water supply pressures within a distribution system. It has a red indicator hand holds at the highest reading registered for detection of thermal expansion pressure surges. It features a black enamel steel case, Kostil Polymer window, 3/4 in. H.T. hose connection, and copper alloy Bourdon tube sensing element. Accuracy is ASME, Type B. Available in 0 to 200 psi (14 bar) pressure rating scale.
Features
- Black enamel steel case
- Kostil polymer window
- Copper alloy Bourdon sensing element
- Tin alloy welding
Specifications
- Size: 3/4"
- Connection: Hose
- Body Material: Steel
- Application: General Service
- Pack Quantity: 32
- Country of Origin: Taiwan
- Warranty: 1 Year Limited
- MPN: IWTG
- Temperature: 40°F to 140°F
- Certifications: ASME B40.100
- Lead-Free: No
- Type: Pressure Gauge
Product Information
Dimensions
| Size Nominal | 3/4" | End Connection | Hose |
Details
| Series | IWTG | Body Material | Steel |
| Application | General Service | Max Temp °F | 140.0 °F |
| Pack Qty | 32 | Min Temp °F | 40.0 °F |
| Tool role | Pressure Gauge | — | — |
Certifications & Standards
| ASME B40.100 | — |
Compare with similar products
| Dial Size | — | 2"
| 3"
| 2-1/2"
| 2"
| 2"
|
| Series | IWTG
| LFDPG-3
| LFDPG-1
| LFDPG-1
| LFDPG-1
| LFDPG-5
|
| Country Of Origin | Taiwan
| BG
| BG
| BG
| BG
| BG
|
| Warranty | 1 Year Limited
| 1 Year Limited
| 1 Year Limited
| 1 Year Limited
| 1 Year Limited
| 1 Year Limited
|
| Spec Sheet | ||||||
| Size Nominal | 3/4"
| 1/4"
| 1/4"
| 1/4"
| 1/4"
| 1/8"
|
| Lead Free | — | Yes | Yes | Yes | Yes | Yes |
| End Connection | Hose
| NPT
| NPT
| NPT
| NPT
| NPT
|
| Body Material | Steel
| ABS
| ABS
| ABS
| ABS
| ABS
|
| Application | General Service
| General Service
| General Service
| General Service
| General Service
| General Service
|
| Max Temp °F | 140.0 °F | 176.0 °F | 176.0 °F | 176.0 °F | 176.0 °F | 176.0 °F |
| Certifications | ASME B40.100
| ASME B40.100
| ASME B40.100
| ASME B40.100
| ASME B40.100
| ASME B40.100
|
| Pack Qty | 32
| 100
| 18
| 24
| 36
| 36
|
| Min Temp °F | 40.0 °F | -4.0 °F | -4.0 °F | -4.0 °F | -4.0 °F | -4.0 °F |
