Watts ISCA-151-D Carrier, Cast Iron, No-Hub

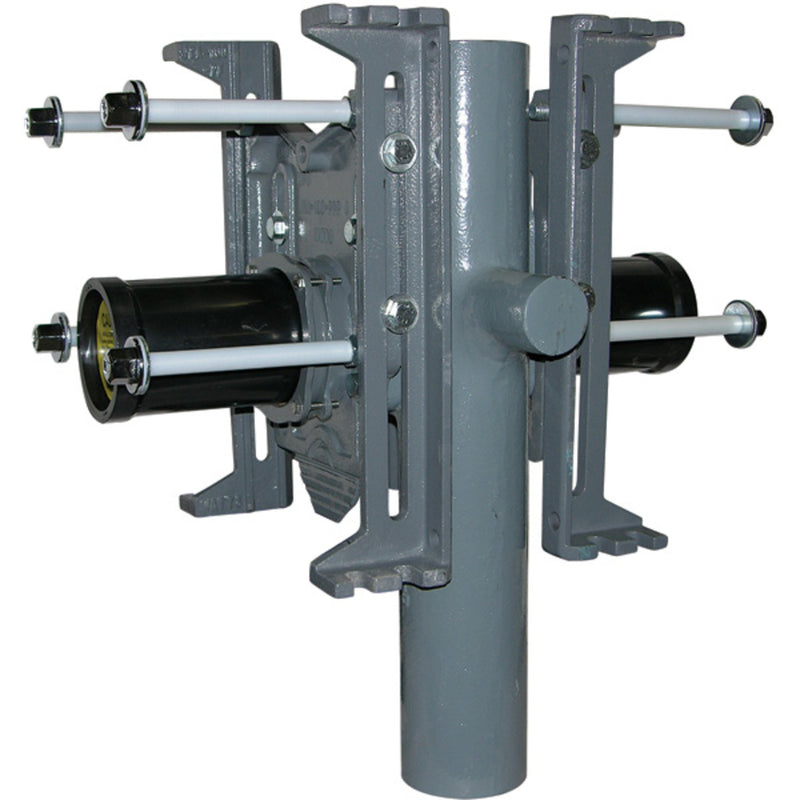

The Watts ISCA-151-D is a double vertical left cast iron water closet carrier. It features a cast iron body.

This Watts Drains industry standard back-to-back, vertical offset, thin wall adjustable water closet carrier features an epoxy coated cast iron fitting, 4 inch waste and 2 inch vent no hub connections, epoxy coated cast iron patented compression seal faceplate assembly, epoxy coated cast iron foot supports embossed with incremental standard and wheelchair heights for easy adjustment, adjustable ABS nipple with integral test cap and neoprene bowl gasket, plated hardware and chrome cap nuts. This carrier complies with ASME requirements of up to a 500 pound static load.

Features

• Industry standard
• Floor mounted
• Adjustable height
• Offset vertical left and right

Common Questions

What fixture does this carry?

It is a carrier for a water closet. It is configured double.

What are the connection sizes?

It has 4" waste and 2" vent connections (No-Hub).

Will it fit my waste run?

This is the vertical left configuration. Confirm the hand against the rough-in before ordering — carriers are not reversible on site.

Specifications

• Connection: No-Hub
• Body Material: Cast Iron
• Application: Drainage
• Country of Origin: China
• Warranty: 1 Year Limited
• MPN: ISCA-151-D
• Fixture Served: Water Closet
• Orientation: Vertical Left
• Single / Double: Double
• Waste Connection: 4"
• Vent Connection: 2"
• Spec.Adjustable: Yes
• Spec.Coating: Epoxy
