Watts ISCA-131-D Carrier, Cast Iron, No-Hub

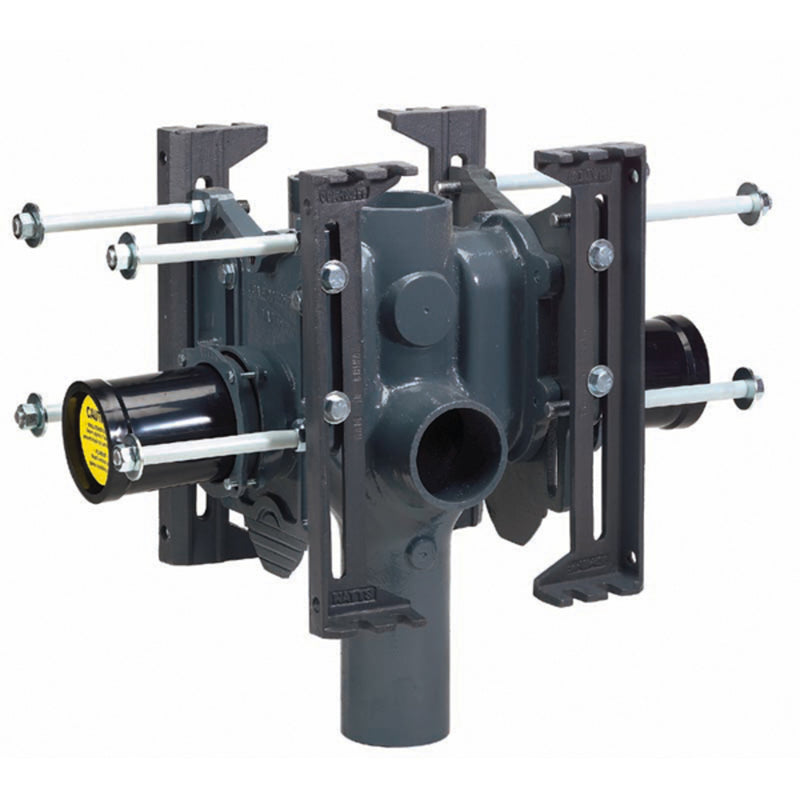

The Watts ISCA-131-D is a double vertical cast iron water closet carrier. It features a cast iron body.

This Watts Drains industry standard back-to-back, vertical, adjustable water closet carrier features an epoxy coated cast iron fitting, 4 inch waste and 2 inch vent no hub connections, a 4 inch no hub side outlet, epoxy coated cast iron patented compression seal faceplate assembly, epoxy coated cast iron foot supports embossed with incremental standard and wheelchair heights for easy adjustment, adjustable ABS nipple with integral test cap and neoprene bowl gasket, plated hardware and chrome cap nuts. This carrier complies with ASME requirements of up to a 500 pound static load.

Features

• Industry standard
• Side Inlet
• Adjustable height
• Vertical

Common Questions

What fixture does this carry?

It is a carrier for a water closet. It is configured double.

What are the connection sizes?

It has 4" waste and 2" vent connections (No-Hub).

Will it fit my waste run?

This is the vertical configuration. Confirm the hand against the rough-in before ordering — carriers are not reversible on site.

Specifications

• Connection: No-Hub
• Body Material: Cast Iron
• Application: Drainage
• Country of Origin: China
• Warranty: 1 Year Limited
• MPN: ISCA-131-D
• Fixture Served: Water Closet
• Orientation: Vertical
• Single / Double: Double
• Waste Connection: 4"
• Vent Connection: 2"
• Spec.Adjustable: Yes
• Spec.Coating: Epoxy
