Specifications
Description

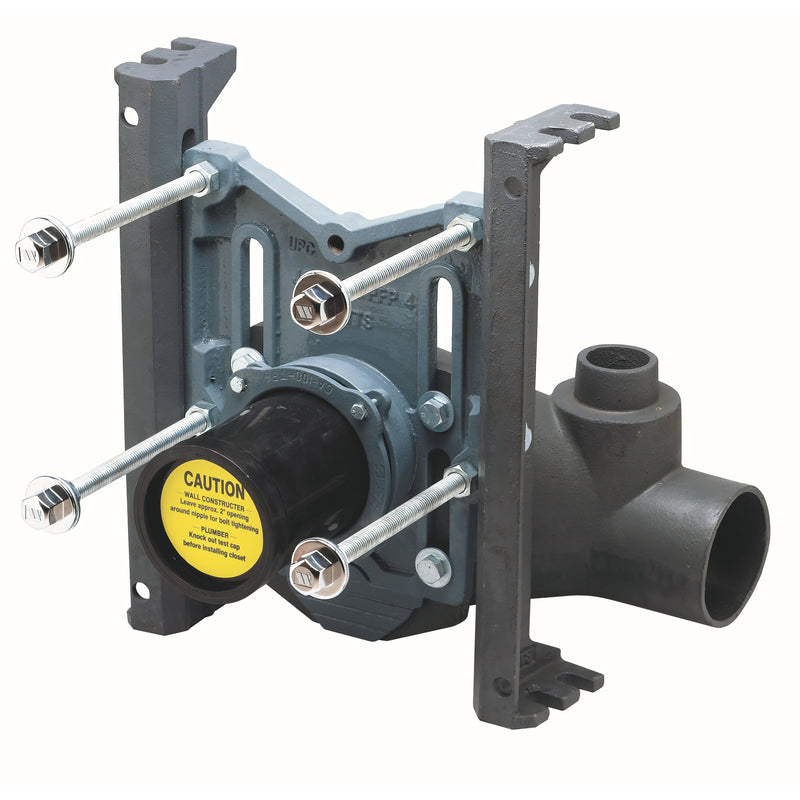

The Watts ISCA-101-R is a single horizontal right cast iron water closet carrier. It features a cast iron body.
This Watts Drains industry standard single, horizontal right, adjustable water closet carrier features an epoxy coated cast iron fitting, 4 inch waste and 2 inch vent no hub connections, epoxy coated cast iron patented compression seal faceplate assembly, epoxy coated cast iron foot supports embossed with incremental standard and wheelchair heights for easy adjustment, adjustable ABS nipple with integral test cap and neoprene bowl gasket, plated hardware and chrome cap nuts. This carrier complies with ASME requirements of up to a 500 pound static load.
Features
- Industry standard
- Floor mounted
- Adjustable height
- Horizontal right
Common Questions
- What fixture does this carry?
- It is a carrier for a water closet. It is configured single.
- What are the connection sizes?
- It has 4" waste and 2" vent connections (No-Hub).
- Will it fit my waste run?
- This is the horizontal right configuration. Confirm the hand against the rough-in before ordering — carriers are not reversible on site.
Specifications
- Connection: No-Hub
- Body Material: Cast Iron
- Application: Drainage
- Country of Origin: China
- Warranty: 1 Year Limited
- MPN: ISCA-101-R
- Fixture Served: Water Closet
- Orientation: Horizontal Right
- Single / Double: Single
- Waste Connection: 4"
- Vent Connection: 2"
- Spec.Adjustable: Yes
- Spec.Coating: Epoxy
Product Information
Dimensions
| End Connection | No-Hub | — | — |
Details
| Series | ISCA-101-L/R | Body Material | Cast Iron |
| Application | Drainage | Waste Size | 4" |
| Vent Size | 2" | Orientation | Horizontal Right |
| Fixture Served | Water Closet | Fixture Count | Single |
| Adjustable | Yes | Coating | Epoxy |
Compare with similar products
| Waste Size | 4"
| 4"
|
| Vent Size | 2"
| 2"
|
| Orientation | Horizontal Right
| Vertical
|
| Fixture Served | Water Closet
| Water Closet
|
| Series | ISCA-101-L/R
| ISCA-141
|
| Country Of Origin | China
| China
|
| Warranty | 1 Year Limited
| 1 Year Limited
|
| Spec Sheet | ||
| Install Sheet | ||
| End Connection | No-Hub
| No-Hub
|
| Body Material | Cast Iron
| Cast Iron
|
| Application | Drainage
| Drainage
|
