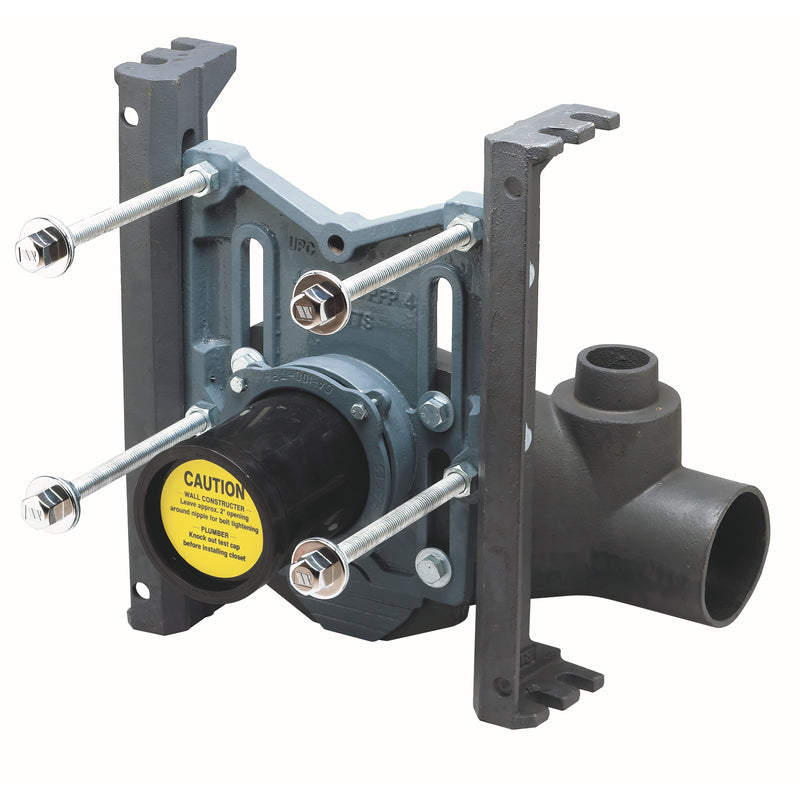

Watts ISCA-101-L Hor Carrier, Cast Iron, No-Hub

The Watts ISCA-101-L Hor is a single horizontal left cast iron water closet carrier. It features a cast iron body.

This industry standard, single horizontal left, adjustable water closet carrier features an epoxy coated cast iron fitting, a 4 inch no hub waste and 2 inch no hub vent, a 2-1/8 inch bend auxiliary inlet and an epoxy coated cast iron compression seal faceplate assembly. The carrier is easily adjustable to the most commonly used fixture requirements from standard to handicapped with the epoxy coated cast iron foot supports and legs which are embossed with incremental measurements. An ABS nipple with an integral test cap, a neoprene bowl gasket, plated hardware and chrome cap nuts are also included. This carrier is rated up to a 500 pound static load.

Features

• Left horizontal
• Auxiliary inlet
• Adjustable
• Cast iron

Common Questions

What fixture does this carry?

It is a carrier for a water closet. It is configured single.

Will it fit my waste run?

This is the horizontal left configuration. Confirm the hand against the rough-in before ordering — carriers are not reversible on site.

Specifications

• Connection: No-Hub
• Body Material: Cast Iron
• Application: Drainage
• Country of Origin: China
• Warranty: 1 Year Limited
• MPN: ISCA-101-L Hor
• Fixture Served: Water Closet
• Orientation: Horizontal Left
• Single / Double: Single
• Spec.Adjustable: Yes
• Spec.Coating: Epoxy
