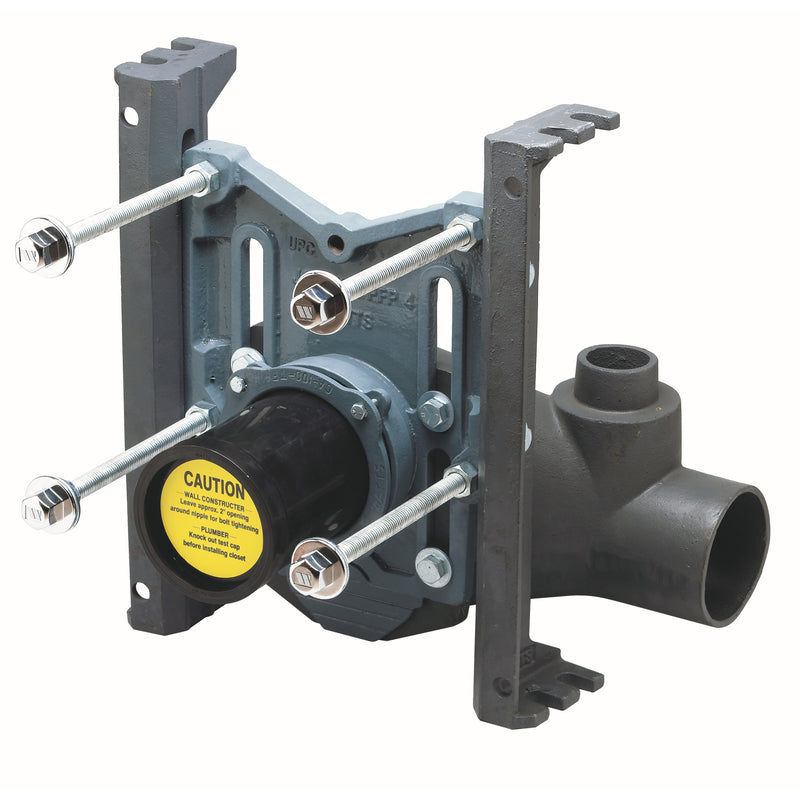

Watts ISCA-101-L-AUX-US Carrier, Cast Iron, No-Hub

The Watts ISCA-101-L-AUX-US is a single horizontal left cast iron water closet carrier. It features a cast iron body.

This Watts Industry Standard left-hand single horizontal, adjustable water closet carrier has an epoxy coated cast iron fitting, compression assembly and foot supports for a smooth finish and long life. The legs embossed with incremental markings allow contractors to easily adjust the height to the most commonly used fixture requirements. Its 4 inch no hub waste, 2 inch auxiliary inlet and 2 inch no hub connections allow for easy installation. It features an adjustable ABS nipple with integral test cap, a neoprene bowl gasket and is adjustable to standard and wheelchair heights. The carrier complies with ASME A1112.6.1.M up to a 500 lb. static load and is BAA compliant.

Features

• Left-Hand Single Horizontal
• 500 LB Static Load
• Adjustable ABS Nipple
• 4" NH Waste and 2" NH Vent

Common Questions

What fixture does this carry?

It is a carrier for a water closet. It is configured single.

Will it fit my waste run?

This is the horizontal left configuration. Confirm the hand against the rough-in before ordering — carriers are not reversible on site.

Specifications

• Connection: No-Hub
• Body Material: Cast Iron
• Application: Drainage
• Country of Origin: United States
• Warranty: 1 Year Limited
• MPN: ISCA-101-L-AUX-US
• Fixture Served: Water Closet
• Orientation: Horizontal Left
• Single / Double: Single
• Spec.Adjustable: Yes
• Spec.Coating: Epoxy
