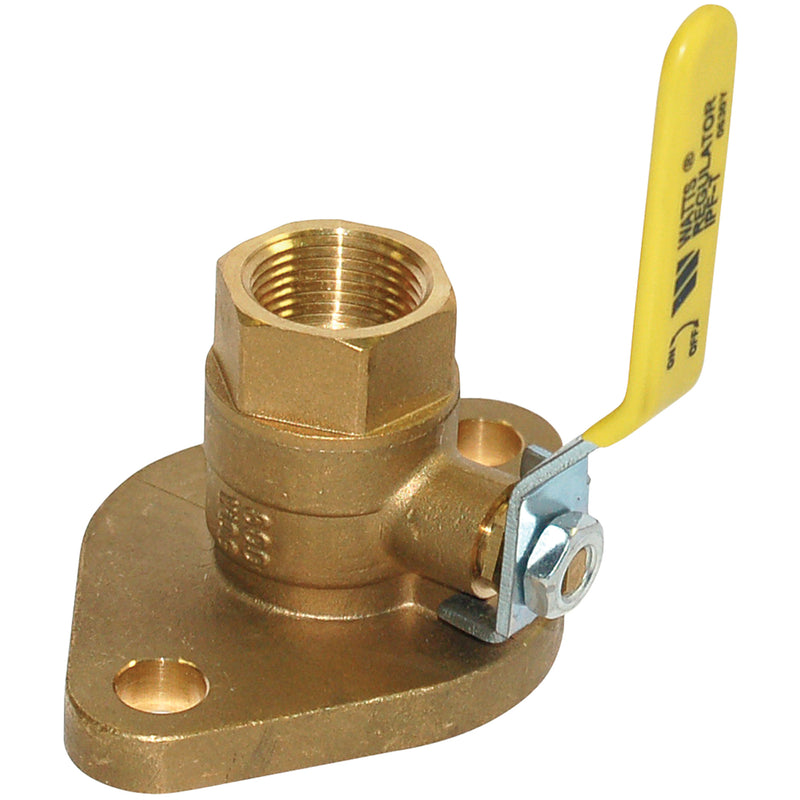

Watts IPF-T-M1 2 Ball Valve, Brass, Flanged

The Watts IPF-T-M1 2 is a 2" ball valve with Flanged connections. It features a brass body and a buna-n seat. Rated to 600 psi and up to 406°F.

This 2 inch isolation pump flange is designed to isolate circulator pumps to facilitate circulator pump replacement or repairs. It features a brass body and flange with bottom loaded blowout proof stem, Buna-N stem O-Ring seal, virgin PTFE seat, and optional T-handle included. The pressure is rated 600 psi (41.4 bar) WOG and the maximum temperature is 406 F (208 C) at 100 psi (6.9 bar).

Features

• Brass body and flange
• Buna-N stem and O-ring seal
• NPT threaded end connection
• Virgin PTFE seats

Common Questions

Can I use this on natural gas or propane?

No. This valve carries no fuel-gas listing, and code requires an ANSI Z21.15 / CSA listed valve for natural gas or LP. Use a Watts GBV series gas ball valve instead.

Is this rated for potable water?

No. This is a leaded model and cannot be installed in US potable-water systems. Watts builds a lead-free (LF-prefix) equivalent for potable service.

Specifications

• Type: Ball
• Size: 2"
• Inlet Size: 2"
• Outlet Size: 2"
• Connection: Flanged
• Body Material: Brass
• Seat / Seal Material: Buna-N
• Max Pressure (psi): 600
• Ways: 2-Way
• Pack Quantity: 10
• Country of Origin: China
• Warranty: 1 Year Limited
• MPN: IPF-T-M1 2
• Temperature: up to 406°F
• Lead-Free: No
• Blowout-Proof Stem: Yes
• Handle Type: Tee
• Actuation: Manual
• Fuel Gas Rated: No
• Integral Drain / Waste Port: No
