Specifications
Description

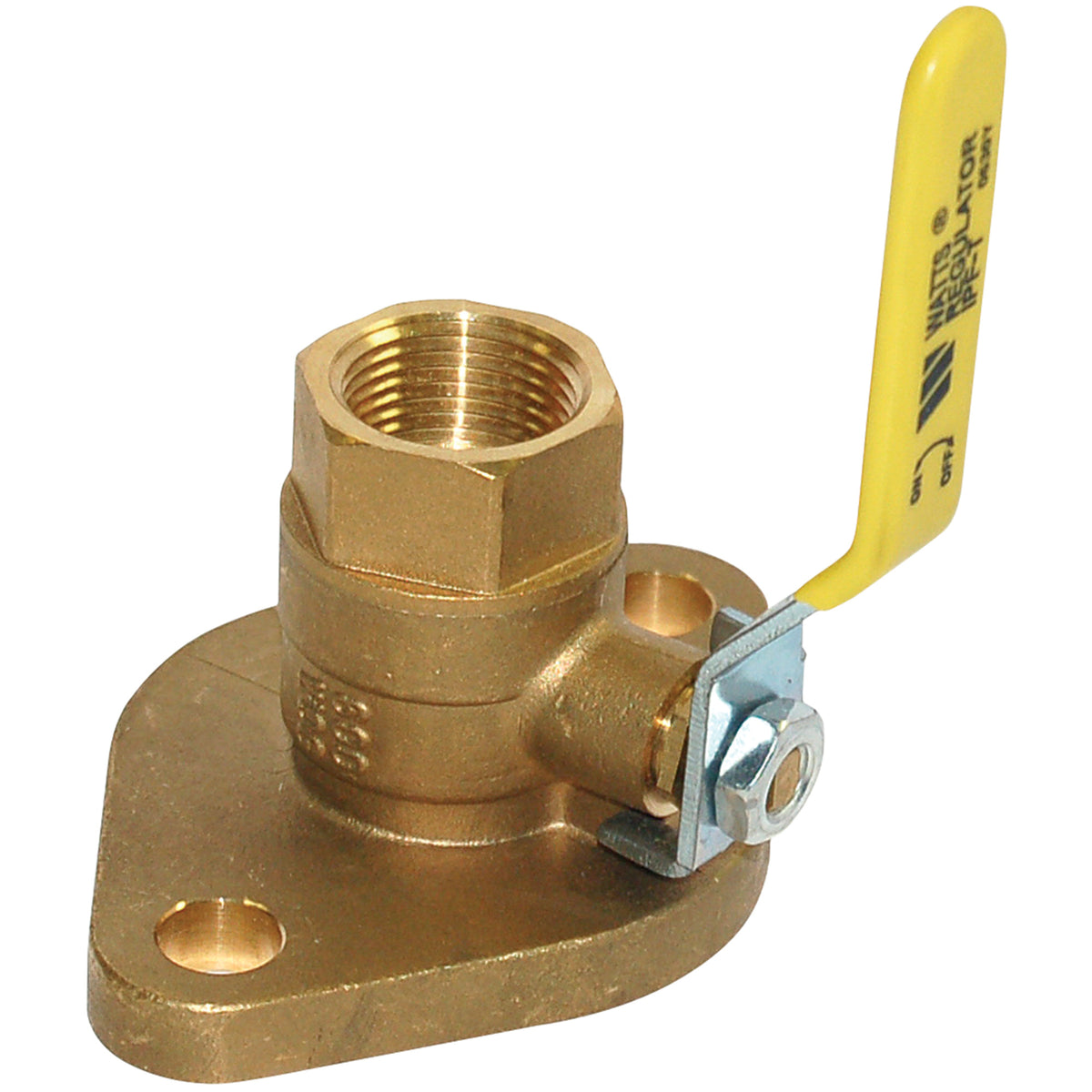

The Watts IPF-T-M1 1 is a 1" ball valve with Flanged connections. It features a brass body and a buna-n seat. Rated to 600 psi and up to 406°F.
This 1 inch isolation pump flange is designed to isolate circulator pumps to facilitate circulator pump replacement or repairs. It features a brass body and flange with bottom loaded blowout proof stem, Buna-N stem O-Ring seal, virgin PTFE seat, and optional T-handle included. The pressure is rated 600 psi (41.4 bar) WOG and the maximum temperature is 406 F (208 C) at 100 psi (6.9 bar).
Features
- Brass body and flange
- Buna-N stem and O-ring seal
- NPT threaded end connection
- Virgin PTFE seats
- Bottom loaded blowout proof stem
- Optional T-handle included
- Designed to isolate circulator pumps to facilitate circulator pump replacement or repairs
- Pressure is rated 600 psi WOG
- Maximum temperature is 406 F at 100 psi
Common Questions
- Can I use this on natural gas or propane?
- No. This valve carries no fuel-gas listing, and code requires an ANSI Z21.15 / CSA listed valve for natural gas or LP. Use a Watts GBV series gas ball valve instead.
- Is this rated for potable water?
- No. This is a leaded model and cannot be installed in US potable-water systems. Watts builds a lead-free (LF-prefix) equivalent for potable service.
Specifications
- Type: Ball
- Size: 1"
- Inlet Size: 1"
- Outlet Size: 1"
- Connection: Flanged
- Body Material: Brass
- Seat / Seal Material: Buna-N
- Max Pressure (psi): 600
- Ways: 2-Way
- Pack Quantity: 20
- Country of Origin: China
- Warranty: 1 Year Limited
- MPN: IPF-T-M1 1
- Temperature: up to 406°F
- Lead-Free: No
- Blowout-Proof Stem: Yes
- Handle Type: Tee
- Actuation: Manual
- Fuel Gas Rated: No
- Integral Drain / Waste Port: No
Product Information
Dimensions
| Size Nominal | 1" | Inlet Size | 1" |
| Outlet Size | 1" | End Connection | Flanged |
Details
| Series | IPF | Device Type | Ball |
| Body Material | Brass | Seat Material | Buna-N |
| Max Pressure PSI | 600.0 psi | Max Temp °F | 406.0 °F |
| Pack Qty | 20 | Valve Ways | 2-Way |
| Blowout Proof Stem | Yes | Handle Type | Tee |
| Actuation | Manual | — | — |
Compare with similar products
| Port Style | — | Full
| Full
| Full
| Full
| Full
|
| Valve Ways | 2-Way
| 2-Way
| 2-Way
| 2-Way
| 2-Way
| 2-Way
|
| Body Construction | — | 2-Piece
| 2-Piece
| 2-Piece
| 2-Piece
| 2-Piece
|
| Ball Material | — | Chrome-Plated Brass
| Chrome-Plated Brass
| Chrome-Plated Brass
| Chrome-Plated Brass
| Chrome-Plated Brass
|
| Blowout Proof Stem | Yes | Yes | Yes | Yes | Yes | Yes |
| Handle Type | Tee
| Lever
| Lever
| Lever
| Lever
| Lever
|
| Actuation | Manual
| Manual
| Manual
| Manual
| Manual
| Manual
|
| WSP PSI | — | 150.0 psi | — | 150.0 psi | — | — |
| Series | IPF
| LFFBV-3C
| LFFBV-4
| LFFBV-3C
| LFFBV-PEX-F1960
| LFFBV-PEX-F1960
|
| Country Of Origin | China
| China
| Mexico
| China
| China
| China
|
| Warranty | 1 Year Limited
| 1 Year Limited
| 1 Year Limited
| 1 Year Limited
| 1 Year Limited
| 1 Year Limited
|
| Spec Sheet | ||||||
| Install Sheet | — | — | — | |||
| Device Type | Ball
| Ball
| Ball
| Ball
| Ball
| Ball
|
| Size Nominal | 1"
| 1"
| 2"
| 2"
| 1-1/4"
| 1-1/2"
|
| Inlet Size | 1"
| 1"
| 2"
| 2"
| 1-1/4"
| 1-1/2"
|
| Outlet Size | 1"
| 1"
| 2"
| 2"
| 1-1/4"
| 1-1/2"
|
| Lead Free | — | Yes | Yes | Yes | Yes | Yes |
| End Connection | Flanged
| FNPT
| NPT
| Sweat
| PEX
| PEX
|
| Body Material | Brass
| Brass
| Brass
| Brass
| Brass
| Brass
|
| Seat Material | Buna-N
| PTFE
| PTFE
| PTFE
| EPDM
| EPDM
|
| Application | — | Domestic Water
| — | Domestic Water
| Domestic Water
| Domestic Water
|
| Max Pressure PSI | 600.0 psi | 600.0 psi | 600.0 psi | 600.0 psi | 160.0 psi | 160.0 psi |
| Max Temp °F | 406.0 °F | 400.0 °F | — | 400.0 °F | — | — |
| Certifications | — | UL, FM, NSF-61
| — | UL, FM, NSF-61
| NSF-61, NSF-372
| NSF-61, NSF-372
|
| Pack Qty | 20
| 30
| 6
| 6
| 16
| 16
|
| Min Temp °F | — | 0.0 °F | — | 0.0 °F | — | — |
