Specifications
Description

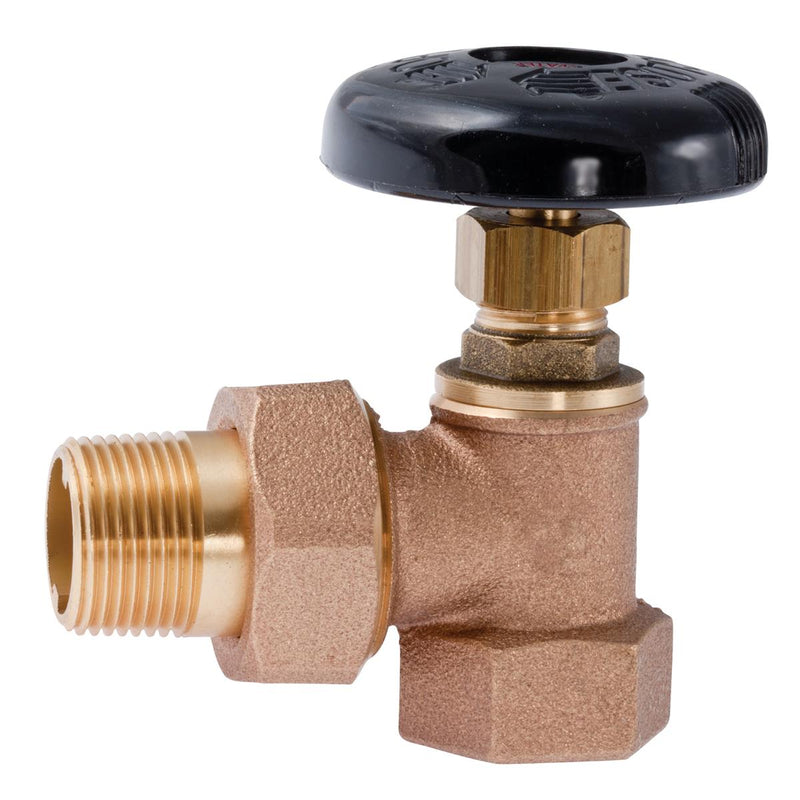

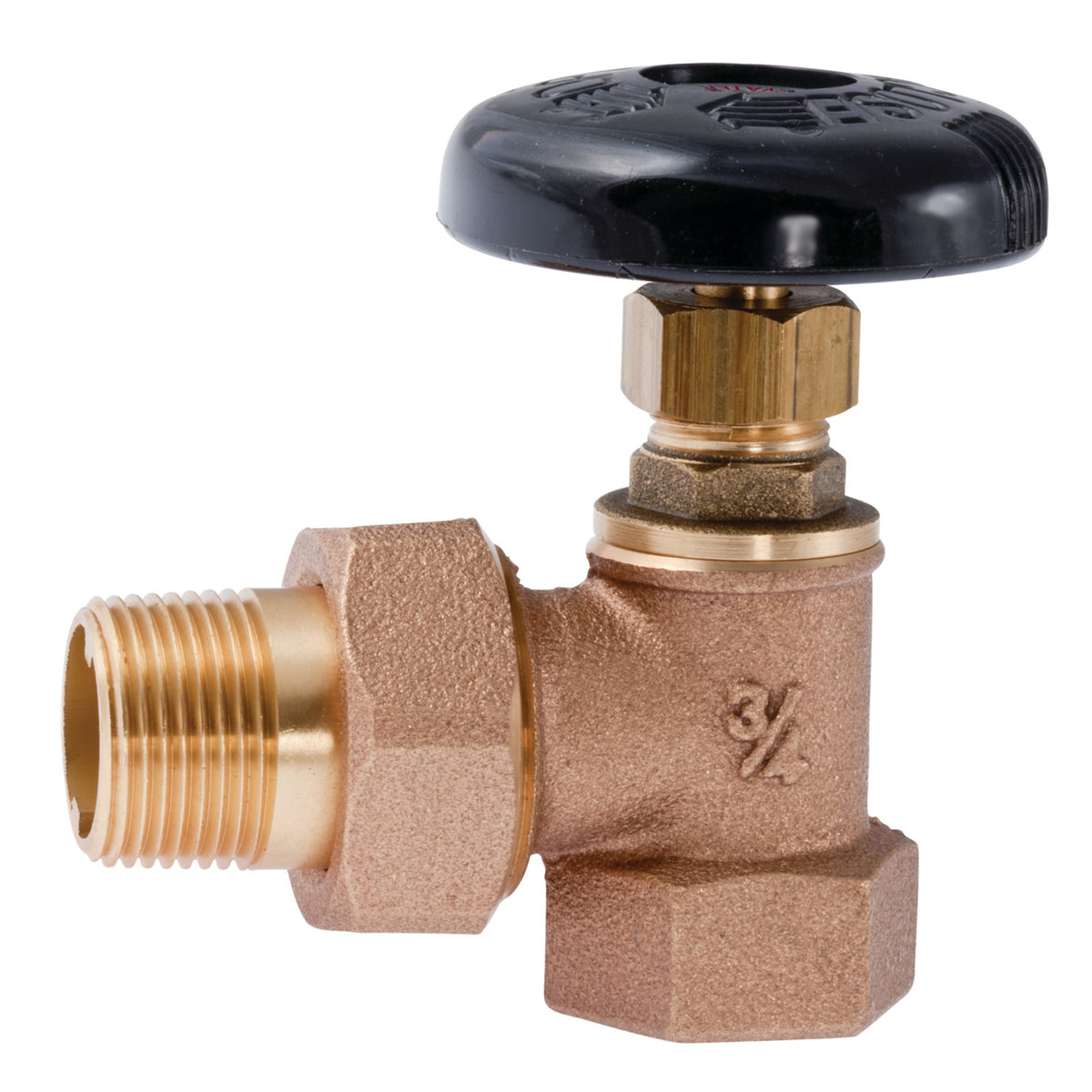

The Watts HWA-TXTMU 3/4 is a 3/4" hot water angle valve with female FNPT connections. It features a bronze body and a buna-n seat. Rated to 60 psi.
This 3/4 inch hot water angle valve is used in heating applications for gravity hot water heating systems only. It feature a bronze disc, rising stem and phenolic handwheel. The maximum working pressure is 60 psi (4.2 bar) (non shock) for hot water. It has FIP by male union connection.
Features
- Bronze body
- Screwed in bonnet
- FIP x male union connection
- Rising stem
Common Questions
- Can I use this on a pressurized or forced-hot-water system?
- No. HWA angle valves are rated 60 psi non-shock and are intended for gravity hot water heating systems only.
- Rising or non-rising stem?
- Rising stem with a phenolic handwheel and a screwed-in bonnet, in an angle pattern with a female inlet by male union outlet.
Specifications
- Type: Angle
- Size: 3/4"
- Inlet Size: 3/4"
- Outlet Size: 3/4"
- Connection: FNPT
- Connection Gender: Female
- Body Material: Bronze
- Seat / Seal Material: Buna-N
- Max Pressure (psi): 60
- Application: Heating
- Pack Quantity: 70
- Country of Origin: Taiwan
- Warranty: 1 Year Limited
- MPN: HWA-TXTMU 3/4
- Lead-Free: No
- Valve Style: Angle Heating
- Stem Type: Rising
- Pressure Rating: 60 psi (non-shock, hot water)
- Operator / Handle: Handwheel
- Bonnet Style: Threaded
- Waste / Drain Port: No
- Replacement Part: No
Product Information
| SKU | UPC | Country of Origin | Warranty | Spec Sheet |
|---|---|---|---|---|
| 0067621 | 098268589627 | Taiwan | 1 Year Limited | Download |
Dimensions
| Size Nominal | 3/4" | Inlet Size | 3/4" |
| Outlet Size | 3/4" | End Connection | FNPT |
| Connection Gender | Female | — | — |
Details
| Series | HWA | Device Type | Angle |
| Body Material | Bronze | Seat Material | Buna-N |
| Application | Heating | Max Pressure PSI | 60.0 psi |
| Pack Qty | 70 | Valve Style | Angle Heating |
| Stem Type | Rising | WOG WSP Rating | 60 psi (non-shock, hot water) |
| Operator | Handwheel | Bonnet Type | Threaded |
