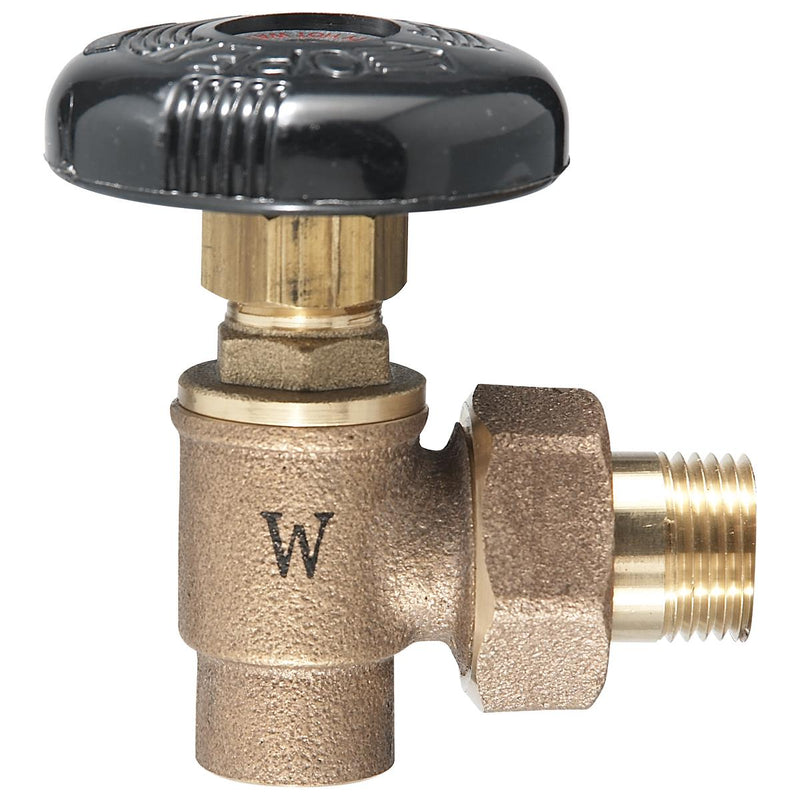

Watts HWA-CXTMU 3/4 Angle Valve, Bronze, Sweat

The Watts HWA-CXTMU 3/4 is a 3/4" hot water angle valve with Sweat connections. It features a bronze body and a buna-n seat. Rated to 60 psi.

This 3/4 inch hot water angle valve is used in heating applications for gravity hot water heating systems only. It feature a bronze disc, rising stem and phenolic handwheel. The maximum working pressure is 60 psi (4.2 bar) (non shock) for hot water. It has solder by male union connection.

Features

• Bronze disc
• Angle pattern
• Screwed in bonnet
• Rising stem

Common Questions

Can I use this on a pressurized or forced-hot-water system?

No. HWA angle valves are rated 60 psi non-shock and are intended for gravity hot water heating systems only.

Rising or non-rising stem?

Rising stem with a phenolic handwheel and a screwed-in bonnet, in an angle pattern with a female inlet by male union outlet.

Specifications

• Type: Angle
• Size: 3/4"
• Inlet Size: 3/4"
• Outlet Size: 3/4"
• Connection: Sweat
• Body Material: Bronze
• Seat / Seal Material: Buna-N
• Max Pressure (psi): 60
• Application: Heating
• Pack Quantity: 70
• Country of Origin: Taiwan
• Warranty: 1 Year Limited
• MPN: HWA-CXTMU 3/4
• Lead-Free: No
• Valve Style: Angle Heating
• Stem Type: Rising
• Pressure Rating: 60 psi (non-shock, hot water)
• Operator / Handle: Handwheel
• Bonnet Style: Threaded
• Waste / Drain Port: No
• Replacement Part: No
