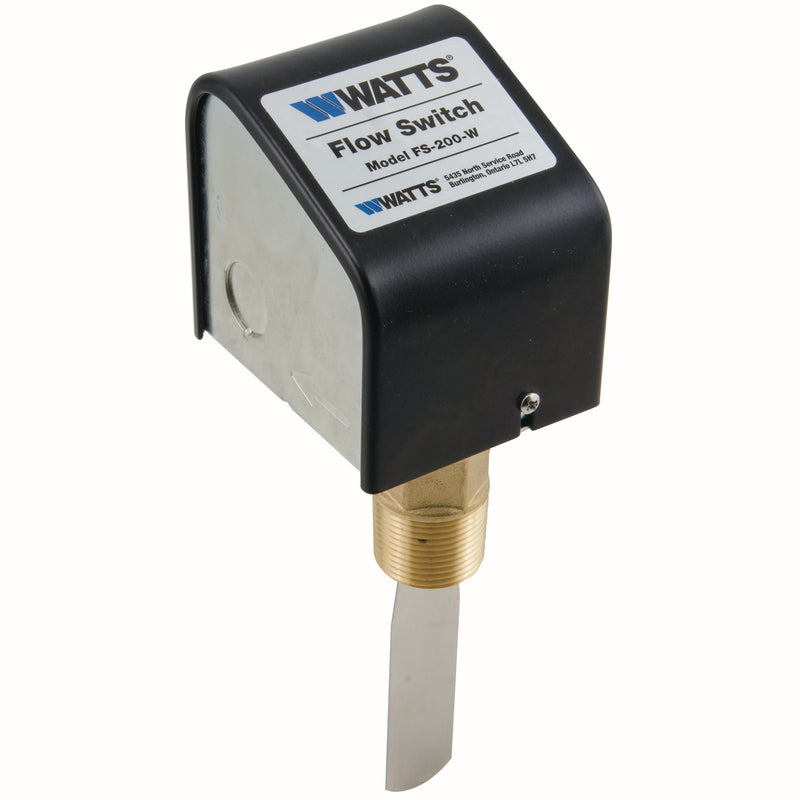

Watts FS-200-W 1" Flow Switch, NPT

The Watts FS-200-W is a flow switch. It features a epdm seat. Rated to 160 psi and up to 250°F.

This general purpose flow switch, model FS-200-W, is used to start or stop electrically operated equipment such as burners, pumps, or alarms by detecting liquid flow through piping. It is designed for use in water media application and is not intended for use of highly corrosive fluids. This flow switch has switch enclosure rating of NEMA 1, for accurate monitoring of liquid flow in pipelines.

Features

• EPDM seal for superior performance over mechanical bellows
• Universal design - replaces switches by McDonnell & Miller, Taco, Penn and others
• Single pole double throw switch for operating signal devices
• Four heavy duty stainless steel paddles

Specifications

• Size: 1"
• Inlet Size: 1"
• Connection: NPT
• Seat / Seal Material: EPDM
• Max Pressure (psi): 160
• Pack Quantity: 16
• Country of Origin: China
• Warranty: 1 Year Limited
• MPN: FS-200-W
• Temperature: up to 250°F
• Lead-Free: No
• Accessory Type: Flow Switch
