Specifications
Description

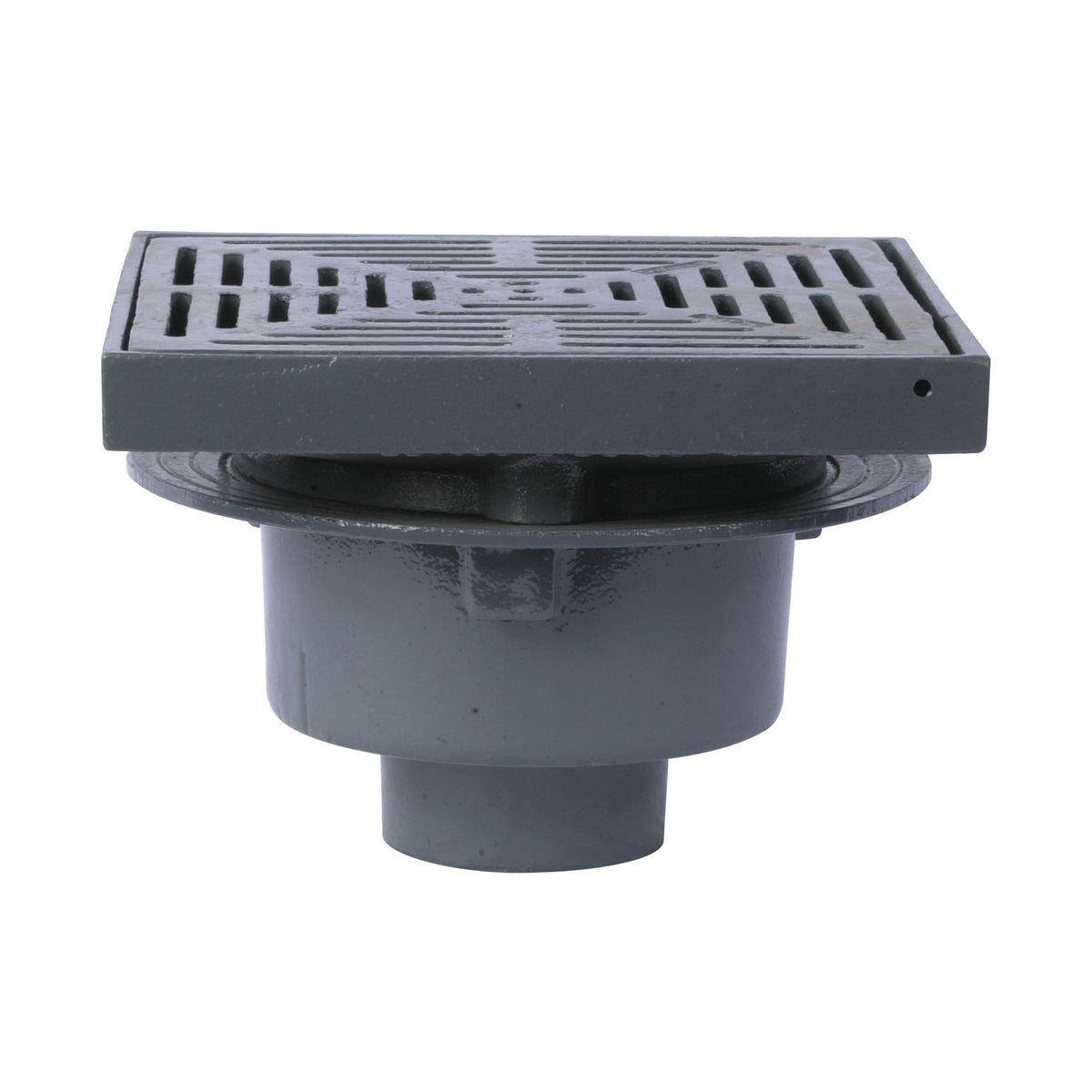

The Watts FD-466-F is a epoxy-coated cast iron floor drain with a 6" No-Hub outlet. It features a cast iron body.
This Watts Drains epoxy coated, cast iron floor drain is ideal for interior area applications. It features a 12 3/4 inch square fixed top with heel-proof ductile iron grate, weepholes, anchor flange and 6 inch no hub connection. This item carries an extra heavy duty load rating.
Features
- Cast iron
- Weeping holes
- Fixed ductile iron top
- Extra heavy duty load rating
Common Questions
- What size is the strainer or grate?
- The top is 12 3/4" square.
- What pipe does it connect to?
- It has a 6" No-Hub outlet.
- Can it take traffic?
- It carries a Extra Heavy Duty load rating. The grate is heel-proof for walking surfaces.
- What is it made of?
- It has a cast iron body with a epoxy coating.
Specifications
- Size: 6"
- Outlet Size: 6"
- Connection: No-Hub
- Body Material: Cast Iron
- Application: Drainage
- Country of Origin: China
- Warranty: 1 Year Limited
- MPN: FD-466-F
- Top Material: Ductile Iron
- Top Shape: Square
- Top / Strainer Size: 12 3/4"
- Spec.Coating: Epoxy
- Load Rating: Extra Heavy Duty
- Heel Proof: Yes
Product Information
| SKU | UPC | Country of Origin | Warranty | Spec Sheet |
|---|---|---|---|---|
| FD-466-F | 098268037982 | China | 1 Year Limited | Download |
Dimensions
| Size Nominal | 6" | Outlet Size | 6" |
| End Connection | No-Hub | — | — |
Details
| Series | FD-460-F | Body Material | Cast Iron |
| Application | Drainage | Top Size | 12 3/4" |
| Coating | Epoxy | Heel proof | Yes |
| Load rating | Extra Heavy Duty | Top material | Ductile Iron |
| Top shape | Square | — | — |
