Specifications
Description

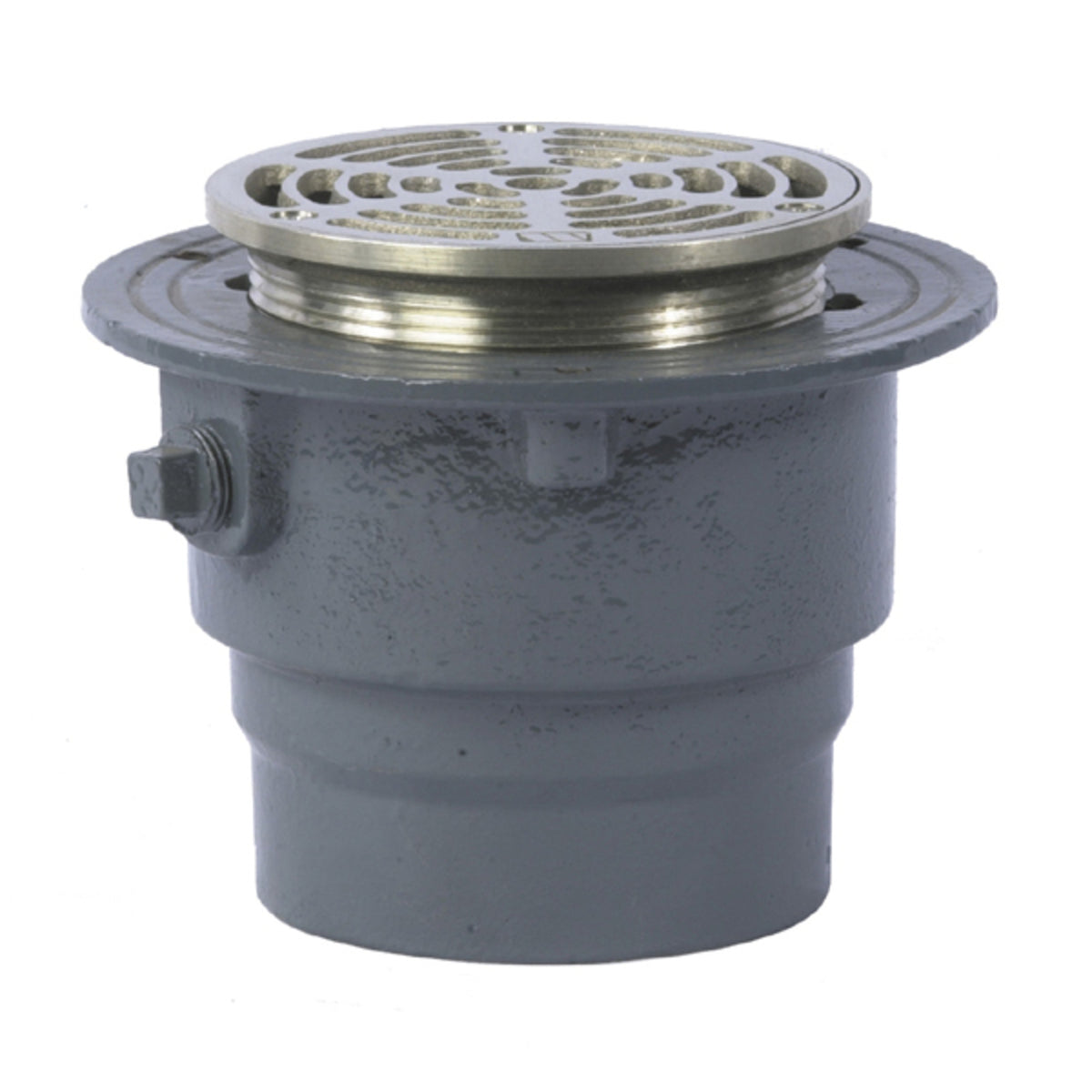

The Watts FD-202-A6 is a epoxy-coated cast iron floor drain with a 2" No-Hub outlet. It features a cast iron body.
This Watts Drains on-grade, adjustable, epoxy coated, cast iron floor drain features an anchor flange, weepholes, an adjustable, round, heel-proof, 6 inch nickel bronze strainer with 9 square inches of free area and a 2 inch no hub outlet. It carries a medium duty load rating.
Features
- Cast iron
- On-grade
- 2 inch no hub
- Adjustable top
Common Questions
- What size is the strainer or grate?
- The top is 6". It adjusts vertically to the finished floor.
- What pipe does it connect to?
- It has a 2" No-Hub outlet.
- Can it take traffic?
- It carries a Medium Duty load rating. The grate is heel-proof for walking surfaces.
- What is it made of?
- It has a cast iron body with a epoxy coating.
Specifications
- Size: 2"
- Outlet Size: 2"
- Connection: No-Hub
- Body Material: Cast Iron
- Application: Drainage
- Country of Origin: China
- Warranty: 1 Year Limited
- MPN: FD-202-A6
- Top Material: Nickel Bronze
- Top / Strainer Size: 6"
- Spec.Coating: Epoxy
- Load Rating: Medium Duty
- Spec.Adjustable: Yes
- Heel Proof: Yes
Product Information
| SKU | UPC | Country of Origin | Warranty |
|---|---|---|---|
| FD-202-A6 | 098268066951 | China | 1 Year Limited |
Dimensions
| Size Nominal | 2" | Outlet Size | 2" |
| End Connection | No-Hub | — | — |
Details
| Series | FD-200 | Body Material | Cast Iron |
| Application | Drainage | Top Size | 6" |
| Adjustable | Yes | Coating | Epoxy |
| Heel proof | Yes | Load rating | Medium Duty |
| Top material | Nickel Bronze | — | — |
