Watts FD-1103-A5-LR Floor Drain, Cast Iron, No-Hub

The Watts FD-1103-A5-LR is a epoxy-coated cast iron floor drain with a 3" No-Hub outlet. It features a cast iron body.

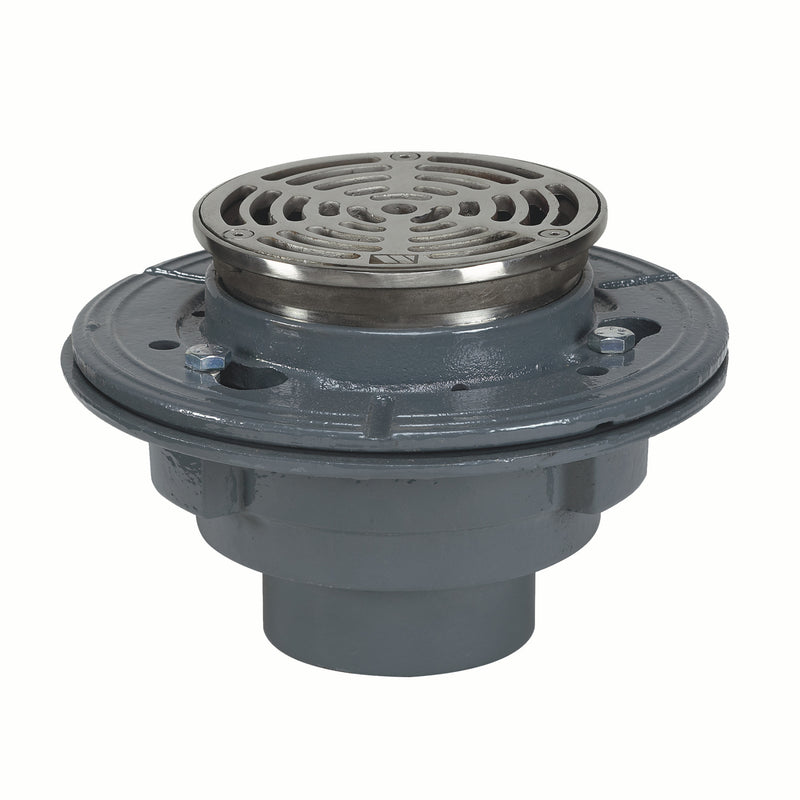

This Watts floor drain has an epoxy coated cast iron body and anchor flange for long life and durability. It features an adjustable, 5 inch stainless steel, ligature resistant, round strainer and a 3 inch no hub outlet for fast and easy installation. Vandal proof screws are standard.

Features

• Epoxy coated cast iron body and anchor flange
• Ligature resistant SS Strainer
• Adjustable
• 3" no hub outlet

Common Questions

What size is the strainer or grate?

The top is round. It adjusts vertically to the finished floor.

What pipe does it connect to?

It has a 3" No-Hub outlet.

What is it made of?

It has a cast iron body with a epoxy coating.

Is it suitable for behavioral health facilities?

Yes. The top is ligature resistant.

Specifications

• Size: 3"
• Outlet Size: 3"
• Connection: No-Hub
• Body Material: Cast Iron
• Application: Drainage
• Country of Origin: China
• Warranty: 1 Year Limited
• MPN: FD-1103-A5-LR
• Top Material: Stainless
• Top Shape: Round
• Spec.Coating: Epoxy
• Spec.Adjustable: Yes
• Ligature Resistant: Yes
