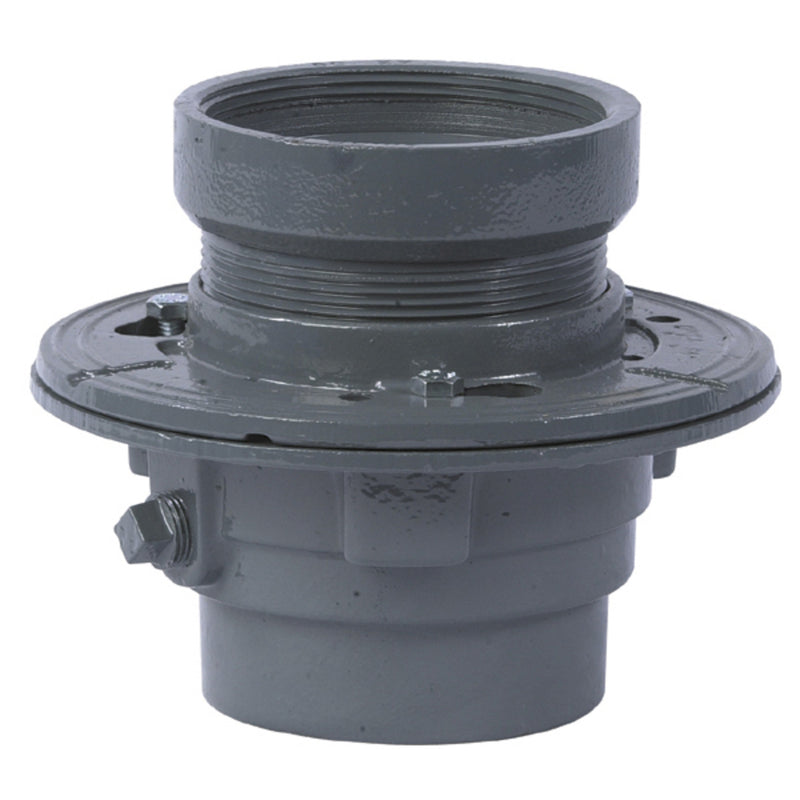

Watts FD-103-DD-50-US Floor Drain, Cast Iron, No-Hub

The Watts FD-103-DD-50-US is a epoxy-coated cast iron floor drain with a 3" No-Hub outlet. It features a cast iron body.

This Watts cast iron floor drain is epoxy coated for long life. It features a 5 inch round, adjustable, cast iron hub funnel, an anchor flange and a reversible clamping collar with primary and secondary weepholes. The double drainage feature re-captures perimeter seepage and the open throat accepts indirect waste or condensate lines. A 3 inch no hub outlet allows for easy installation. It is BAA compliant.

Features

• Epoxy coated cast iron
• 5" Diameter cast iron hub funnel
• 3" No hub outlet
• Reversible clamping collar

Common Questions

What size is the strainer or grate?

The top is 5" round. It adjusts vertically to the finished floor.

What pipe does it connect to?

It has a 3" No-Hub outlet.

What is it made of?

It has a cast iron body with a epoxy coating.

Specifications

• Size: 3"
• Outlet Size: 3"
• Connection: No-Hub
• Body Material: Cast Iron
• Application: Drainage
• Country of Origin: United States
• Warranty: 1 Year Limited
• MPN: FD-103-DD-50-US
• Top Material: Cast Iron
• Top Shape: Round
• Top / Strainer Size: 5"
• Spec.Coating: Epoxy
• Spec.Adjustable: Yes
