Watts F127SS-208 3 Pressure Reducing Valve, Cast Iron, Flanged

The Watts F127SS-208 3 is a 3" process steam pressure regulator with Flanged connections. It reduces high or fluctuating inlet pressure to a lower, constant downstream pressure. It features a cast iron body and a buna-n seat. Rated to 100 psi.

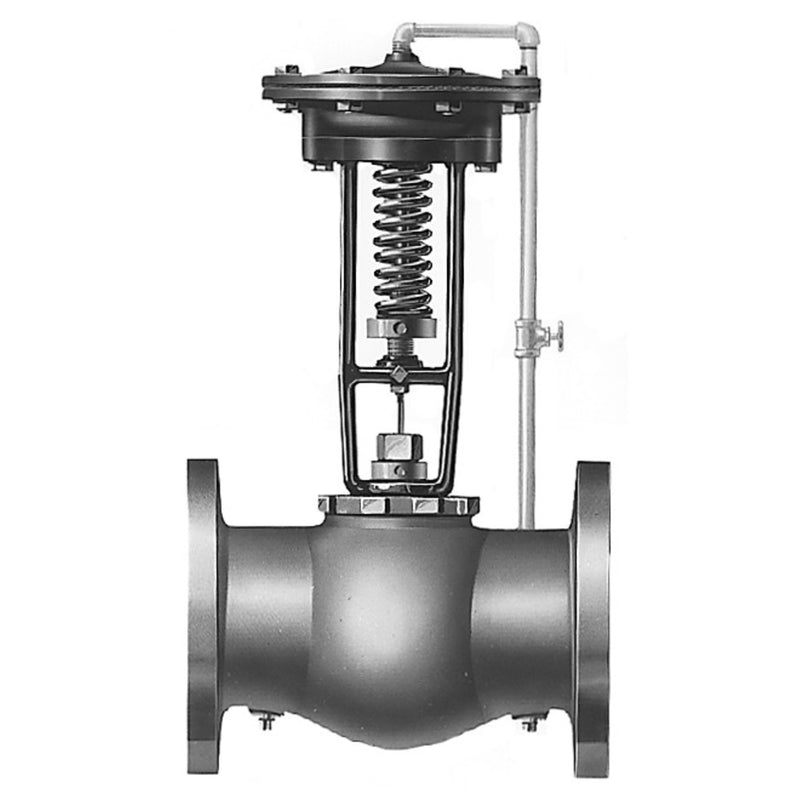

This 3 inch process steam pressure regulator, model 208, is a single seated, direct acting, diaphragm type regulator. It is ideal for institutional, industrial, and commercial applications to regulate steam pressure in the mainline and high capacity process service heating applications. It features a cast iron body, flanged end connections and stainless steel diaphragm, seat and disc internals to extend the service life. The springs and diaphragm chamber assembly is easily changed and the valve is simple to adjust when the need to quickly restore the regulator service is required. The maximum working initial pressures is up to 125 psi (8.6 bar).

Features

• Cast iron body with flanged connections
• Stainless steel single seated
• Direct acting diaphragm
• Standardly furnished with stainless steel valve disc
• Replaceable springs and diaphragm
• Quickly and easily serviceable in line without special tools
• Maximum working initial pressure up to 125 psi (8.6 bar)
• Engineered and recommended for mainline and high capacity process service heating applications
• Valve is simple to adjust

Common Questions

Does it come with a gauge?

No - F127SS-208 3 has no gauge and no gauge tapping. Set the outlet pressure using a gauge elsewhere on the downstream piping.

Specifications

• Type: Pressure Regulator
• Size: 3"
• Inlet Size: 3"
• Outlet Size: 3"
• Connection: Flanged
• Body Material: Cast Iron
• Seat / Seal Material: Buna-N
• Max Pressure (psi): 100
• Shutoff: None
• Country of Origin: United States
• Warranty: 1 Year Limited
• MPN: F127SS-208 3
• Lead-Free: No
• Thermal Expansion Bypass: No
• Gauge: None
• Union Configuration: None
• Regulated Media: Steam
