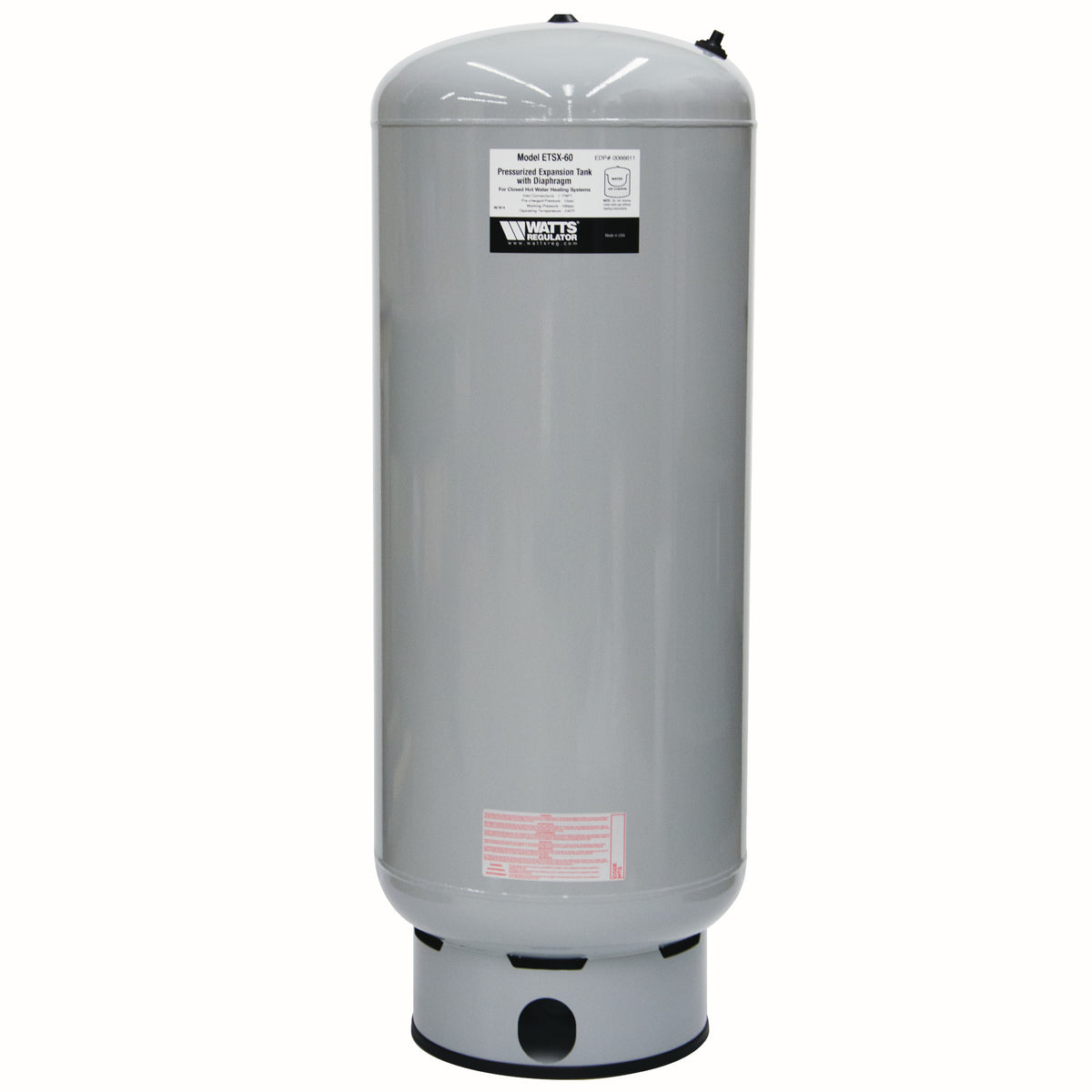

The Watts ETSX-60 is a 1" expansion tank with a 33.0 gallon capacity. It is rated to 75 psi.
This non-potable water expansion tank is designed for use in commercial and residential closed loop hydronic heating system piping to control the thermal expansion of hot water and maintain system pressure below the relief setting of the relief valve. This carbon steel tank is pre-charged at 12 psi, tank volume is 33.0 gallons and features a durable expansion membrane that prevents contact of the water with the air in the tank. This rugged butyl diaphragm minimizes loss of the air change and ensures long and trouble-free life for the system. This tank is made of carbon steel with epoxy finish, free-standing, 1 inch FNPT system connection and a 0.302-32 inch charging valve connection (standard tire valve) to facilitate on-site charging of the tank to meet system requirements. The maximum working pressure is 75 psi (5.3 bar).
Features
- Precharged to 12 psi
- Rugged flexible butyl diaphragm
- Inline and free standing models
- Steel construction
Common Questions
- Is it rated for potable water?
- No. This is a closed-loop hydronic tank and must not be used on potable water.
- What is the factory pre-charge?
- It ships pre-charged to 12 psi. Match this to system fill pressure or the tank cannot accept expansion.
- What size is the tank?
- It holds 33.0 gallons.
- What is it designed for?
- It is intended for hydronic heating service.
Specifications
- Size: 1"
- Inlet Size: 1"
- Connection: FNPT
- Connection Gender: Female
- Max Pressure (psi): 75
- Application: Hydronic Heating
- Country of Origin: United States
- Warranty: 1 Year Limited
- MPN: ETSX-60
- Lead-Free: No
- Component Role: Expansion Tank
- Tank Volume (gal): 33.0
- Pre-Charge Pressure (psi): 12
- Potable Water Rated: No
Product Information
Dimensions
| Size Nominal | 1" | Inlet Size | 1" |
| End Connection | FNPT | Connection Gender | Female |
Details
| Series | ETX | Application | Hydronic Heating |
| Max Pressure PSI | 75.0 psi | Tank Volume | 33.0 gal |
| Precharge Pressure | 12 PSI | Component role | Expansion Tank |
| Potable | No | — | — |
Compare with similar products
| Tank Volume | 33.0
| 8.5
| 15.0
| 2.1
| 26
| 5.0
|
| Precharge Pressure | 12
| 20
| 12
| 20
| 40
| 40
|
| Series | ETX
| PLT
| ETX
| PLT
| DETA
| DETA
|
| Country Of Origin | United States
| Taiwan
| United States
| Taiwan
| United States
| United States
|
| Warranty | 1 Year Limited
| 1 Year Limited
| 1 Year Limited
| 1 Year Limited
| 1 Year Limited
| 1 Year Limited
|
| Spec Sheet | ||||||
| Install Sheet | ||||||
| Size Nominal | 1"
| 3/4"
| 1"
| 3/4"
| 1"
| 3/4"
|
| Inlet Size | 1"
| 3/4"
| 1"
| 3/4"
| 1"
| 3/4"
|
| End Connection | FNPT
| — | FNPT
| — | MNPT
| MNPT
|
| Application | Hydronic Heating
| Domestic Water
| Hydronic Heating
| Domestic Water
| Domestic Water
| Domestic Water
|
| Max Pressure PSI | 75.0 psi | 150.0 psi | 75.0 psi | 150.0 psi | — | — |
| Certifications | — | NSF-61, IAPMO
| — | NSF-61, IAPMO
| FDA
| FDA
|
| Connection Gender | Female
| — | Female
| — | Male
| Male
|
