Specifications
Description

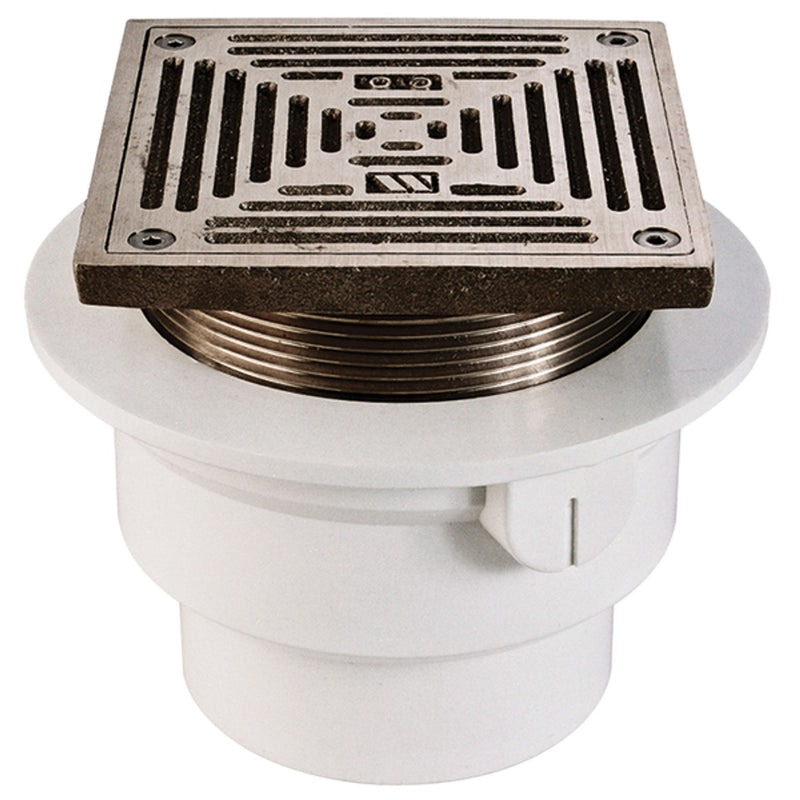

The Watts CO12-3PVC-SQ-DI is a pvc cleanout with a 3" Solvent outlet. It features a pvc body.
This Watts light commercial PVC, adjustable floor cleanout features a 3 inch solvent weld connection, poly plug and 5 inch square, ductile iron, non-skid top. The top has a maximum adjustability of 2 3/4 inches with an extra heavy duty load rating.
Features
- PVC Body
- 3" Solvent weld
- Poly plug
- 5" Ductile iron top
Common Questions
- What size is the strainer or grate?
- The top is 5" square. It adjusts vertically to the finished floor.
- What pipe does it connect to?
- It has a 3" Solvent outlet.
- Can it take traffic?
- It carries a Extra Heavy Duty load rating.
- What is it made of?
- It has a pvc body.
Specifications
- Size: 3"
- Outlet Size: 3"
- Connection: Solvent
- Body Material: PVC
- Application: Drainage
- Country of Origin: China
- Warranty: 1 Year Limited
- MPN: CO12-3PVC-SQ-DI
- Top Material: Ductile Iron
- Top Shape: Square
- Top / Strainer Size: 5"
- Load Rating: Extra Heavy Duty
- Spec.Adjustable: Yes
Product Information
| SKU | UPC | Country of Origin | Warranty | Spec Sheet |
|---|---|---|---|---|
| CO12-3PVC-SQ-DI | 098268230178 | China | 1 Year Limited | Download |
Dimensions
| Size Nominal | 3" | Outlet Size | 3" |
| End Connection | Solvent | — | — |
Details
| Series | CO12-SQ | Body Material | PVC |
| Application | Drainage | Top Size | 5" |
| Adjustable | Yes | Load rating | Extra Heavy Duty |
| Top material | Ductile Iron | Top shape | Square |
Compare with similar products
| Top Size | 5"
| 8"
| 8"
| — | — | 5"
|
| Series | CO12-SQ
| Cleanout Components
| Cleanout Components
| CO-200-S
| CO-200-S
| CO12-SQ
|
| Country Of Origin | China
| China
| China
| China
| China
| China
|
| Warranty | 1 Year Limited
| 1 Year Limited
| 1 Year Limited
| 1 Year Limited
| 1 Year Limited
| 1 Year Limited
|
| Spec Sheet | ||||||
| Size Nominal | 3"
| — | — | 3"
| 2"
| 4"
|
| Outlet Size | 3"
| — | — | 3"
| 2"
| 4"
|
| End Connection | Solvent
| — | — | No-Hub
| No-Hub
| Solvent
|
| Body Material | PVC
| Nickel Bronze
| Stainless
| Cast Iron
| Cast Iron
| — |
| Application | Drainage
| Drainage
| Drainage
| Drainage
| Drainage
| Drainage
|
