Specifications
Description

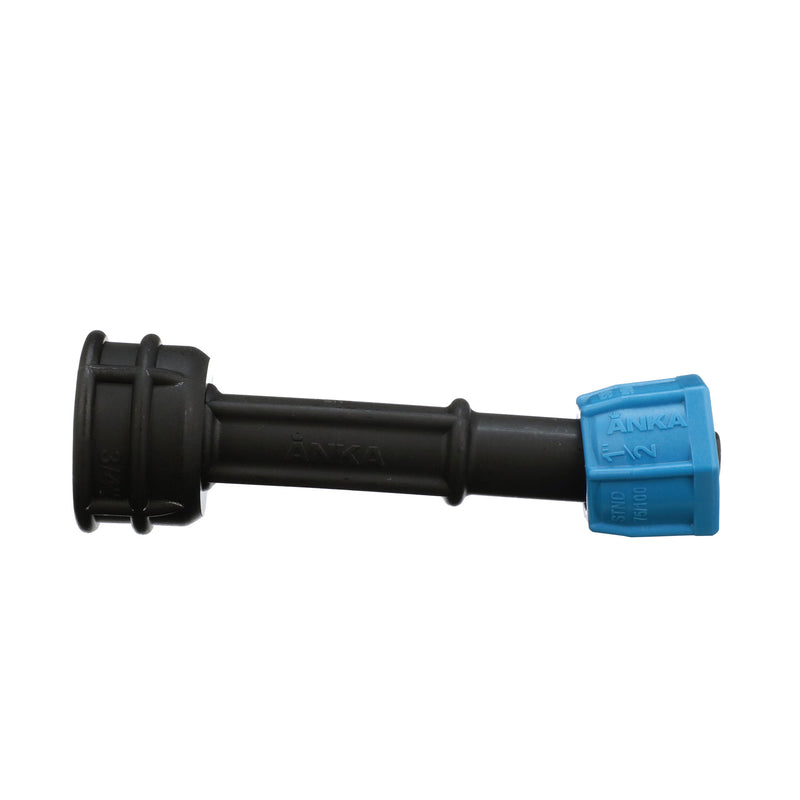

The Watts ARFA1234 is a Threaded nut.
This 3/4 inch female NPT x 1/2 inch barb reducing adapter is manufactured from high grade fiberglass reinforced nylon. It is non corrosive; using high quality materials approved for use with drinkable water. Designed to connect a range of ID nominally sized polyethylene pipe, tube and hose with varying wall thicknesses. Connection can be made by hand, without tools. It is re-usable and utilizes a unique way to connect pipe without the need for multiple replacement parts. The unique blue captive nut seals stays on the ridge and seals the pipe on the ridge. Female NPT inlet and barb outlet connection type, fits 1/2 and 3/4 inch nominally sized polyethylene pipe, tube and hose. Used for the most rigorous agricultural and horticultural uses. Maximum pressure is 230 psi and maximum temperature is 140 degrees F.
Features
- Ideal for agricultural, irrigation, rural and municipal, and plumbing applications
- Efficiently connects polyethylene pipe, tube, and hose
- Fast and easy to install, connection can be made by hand, with no special tools required
- High grade fiberglass reinforced nylon construction offers corrosion resistance and long-lasting, reusable wear
- Approved for use with potable water
- Provides Leak Free protection and is UV stabilized for above ground or below grade applications
Common Questions
- How does it join the pipe?
- It is a Threaded fitting.
Specifications
- Size: 1/2"
- Inlet Size: 3/4"
- Outlet Size: 1/2"
- Connection: FNPT
- Connection Gender: Female
- Application: Domestic Water
- Pack Quantity: 180
- Country of Origin: NZ
- Warranty: 1 Year Limited
- MPN: ARFA1234
- Lead-Free: No
- Fitting Type: Nut
- Connection System: Threaded
Product Information
| SKU | UPC | Country of Origin | Warranty | Spec Sheet |
|---|---|---|---|---|
| 88005262 | 098268149586 | NZ | 1 Year Limited | Download |
Dimensions
| Size Nominal | 1/2" | Inlet Size | 3/4" |
| Outlet Size | 1/2" | End Connection | FNPT |
| Connection Gender | Female | — | — |
Details
| Series | ARFA | Application | Domestic Water |
| Pack Qty | 180 | Connection system | Threaded |
| Fitting type | Nut | — | — |
