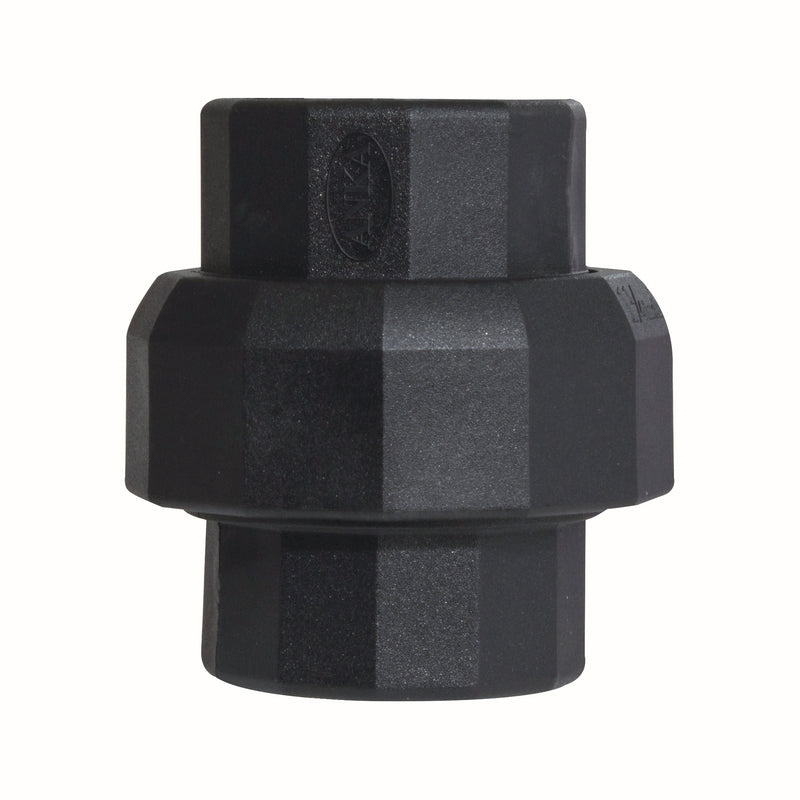

Watts AFU112 1-1/2" Union, Nylon, FNPT

The Watts AFU112 is a nylon Threaded union in 1 1/2" x 1 1/2". It features a nylon body.

This 1 1/2 inch x 1 1/2 inch straight pipe union with female NPT thread is manufactured from high grade glass fiber reinforced nylon. It is non corrosive; using high quality materials approved for use with drinkable water. Designed to connect a range of ID nominally sized polyethylene pipe, tube, and hose with varying wall thicknesses. Connection can be made by hand, without tools. It is re-usable and utilizes a unique way to connect pipe without the need for multiple replacement parts. The unique blue captive nut seals stays on the ridge and seals the pipe on the ridge. Barb inlet and outlet connection type, fits 1 1/2 inch nominally sized polyethylene pipe, tube and hose. Used for the most rigorous agricultural and horticultural uses. Maximum pressure is 230 psi and maximum temperature is 140 degrees F.

Features

• Ideal for agricultural, irrigation, rural and municipal, and plumbing applications
• Use in place of traditional metal, brass, or copper fittings
• Fast and easy to install, can be taken apart for servicing and winterizing
• High grade fiberglass reinforced nylon construction offers corrosion resistance and long-lasting, reusable wear
• Provides Leak Free protection and is UV stabilized for above ground or below grade applications

Common Questions

How does it join the pipe?

It is a Threaded fitting. The port configuration is 1 1/2" x 1 1/2".

What is it made of?

The body is nylon.

Is this a reducing fitting?

The ports are 1 1/2" x 1 1/2". Match this against the run before ordering.

Specifications

• Size: 1-1/2"
• Inlet Size: 1-1/2"
• Outlet Size: 1-1/2"
• Connection: FNPT
• Connection Gender: Female
• Body Material: Nylon
• Application: Irrigation
• Pack Quantity: 60
• Country of Origin: NZ
• Warranty: 1 Year Limited
• MPN: AFU112
• Lead-Free: No
• Fitting Type: Union
• Connection System: Threaded
• Port Configuration: 1 1/2" x 1 1/2"
