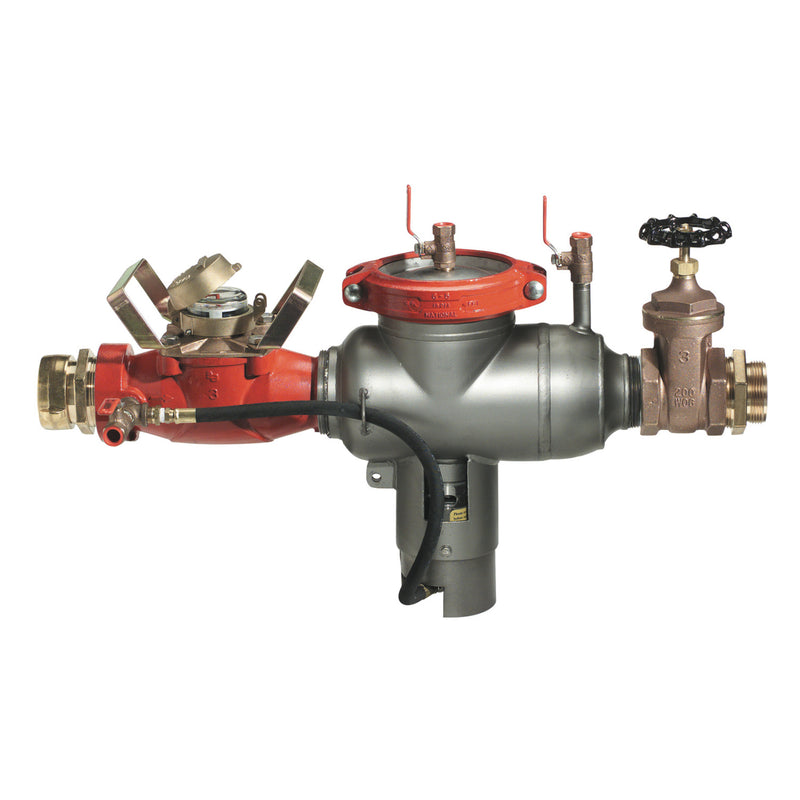

Watts 994HMB-GPM 2 1/2 X 3 Relief Valve, Stainless, Hose

The Watts 994HMB-GPM 2 1/2 X 3 is a 3" backflow preventer with Hose connections. It features a stainless body. Rated to 150 psi.

This 2 1/2 to 7 NST by 3 inch portable hydrant backflow preventer with a GPM meter is designed to accurately measure the flow and protect the water supply from possible contaminations. It is ideal for protection where the flow is in one direction and the possibility of cross-connection exists, such as on an existing hydrant hookup or other non-permanent installation. It prevents the reverse backflow through the fire hydrant of fire protection substances and water of non-potable quality from being pumped or siphoned into the potable water supply due to backsiphonage and or backpressure in accordance with national plumbing codes and water authority requirements. It consists of a stainless steel body, NST fire hose coupling, test cocks, built-in leg, gate valve, stainless steel bottom mounted relief valve, and torsion spring check valves. Its portable design is made to transport between job sites and will provide long-term service with minimal maintenance.

Features

• Backflow preventer is made from 300 series stainless steel for corrosion resistance
• Swivel 2 1/2 NST connector for fast and easy connection to hydrant
• Furnished with a gallons per minute meter
• Detects underground leaks and unauthorized water use
• Built-in support leg is adjustable in the field
• No special tools are required for servicing
• Torsion spring check valves provides maximum flow at low pressure drop
• Accurately measures flow and protects the water supply from possible contamination
• Designed and manufactured to provide long-term service with minimal maintenance
• Includes: Test Cocks

Common Questions

Can this be installed on potable water?

No. This model is not certified lead-free, so it may not be installed in potable water systems in states enforcing the NSF/ANSI 372 weighted-average lead rule. Use it on non-potable service — fire lines, irrigation or industrial water — or order the LF (lead-free) version of this model for drinking-water use.

Specifications

• Type: Relief
• Size: 3"
• Inlet Size: 3"
• Outlet Size: 3"
• Connection: Hose
• Body Material: Stainless
• Max Pressure (psi): 150
• Application: Domestic Water
• Country of Origin: United States
• Warranty: 1 Year Limited
• MPN: 994HMB-GPM 2 1/2 X 3
• Lead-Free: No
• Shutoff Valves: None
• Flood Sensor (SentryPlus Alert): No
• Strainer Included: No
• Air Gap Fitting Included: No
