Specifications
Description

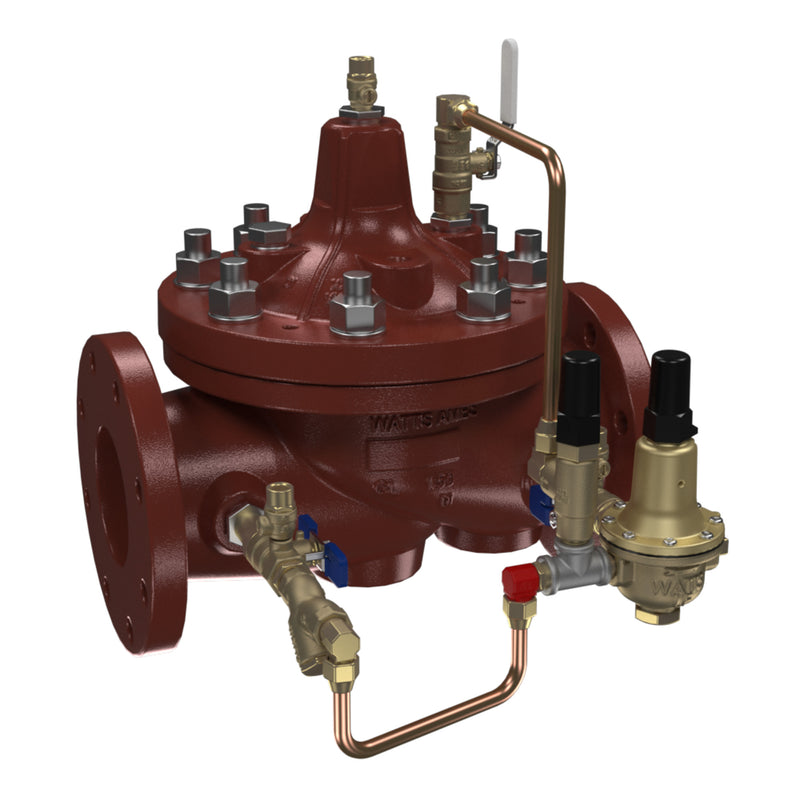

The Watts MF1115 2 is a 2" lead-free angle-pattern pilot-operated pressure reducing control valve. It features a ductile iron body and a epdm seat. Rated to 600 psi and up to 300°F. This model is certified lead-free for potable-water installations.
Common Questions
- What fluid temperature can the EPDM trim handle?
- This valve is built with EPDM elastomers, good to about 300°F. Watts offers the same body with Buna-N (to 160°F), FKM/Viton (to 250°F) or EPDM (to 300°F) — pick the elastomer for your fluid temperature, not the body.
- Is this valve UL Listed and FM Approved for fire protection?
- Yes — this model carries the UL listing and FM approval required for fire-protection service. Non-listed control valves cannot be substituted on a fire job even when the body and pilot are otherwise identical.
Specifications
- Type: Pressure Regulator
- Size: 2"
- Inlet Size: 2"
- Outlet Size: 2"
- Body Material: Ductile Iron
- Seat / Seal Material: EPDM
- Max Pressure (psi): 600
- Operation: Pilot-Operated Diaphragm
- Country of Origin: United States
- Warranty: 1 Year Limited
- MPN: MF1115 2
- Temperature: up to 300°F
- Certifications: UL, FM
- Lead-Free: Yes
- Item Type: Valve
- Control Function: Pressure Reducing
- Valve Platform: Mustang (M-Series)
- Body Pattern: Angle
- Coating: ArmorTek 3-Part Epoxy
- UL Listed / FM Approved: Yes
Product Information
Dimensions
| Size Nominal | 2" | Inlet Size | 2" |
| Outlet Size | 2" | — | — |
Details
| Series | LFM115 | Device Type | Pressure Regulator |
| Lead Free | Yes | Body Material | Ductile Iron |
| Seat Material | EPDM | Operation | Pilot-Operated Diaphragm |
| Max Pressure PSI | 600.0 psi | Max Temp °F | 300.0 °F |
| Item Type | Valve | Control Function | Pressure Reducing |
| Valve Platform | Mustang (M-Series) | Body Pattern | Angle |
| Coating | ArmorTek 3-Part Epoxy | UL FM Listed | Yes |
Certifications & Standards
| UL | FM |
Compare with similar products



| Port Style | — | Full
| Full
| Full
| Full
| Full
|
| Item Type | Valve
| Valve
| Valve
| Valve
| Valve
| Valve
|
| Control Function | Pressure Reducing
| Pressure Reducing (Low-Flow Bypass)
| Pressure Reducing
| Pressure Reducing
| Pressure Reducing
| Pressure Reducing
|
| Valve Platform | Mustang (M-Series)
| Mustang (M-Series)
| Classic (F-Series)
| Mustang (M-Series)
| Mustang (M-Series)
| Mustang (M-Series)
|
| Body Pattern | Angle
| Globe
| Globe
| Globe
| Globe
| Globe
|
| Pilot Range PSI | — | 10-75
| 2-30
| 30-300
| 30-300
| 2-30
|
| Pressure Class End | — | 300# Flanged
| THD (NPT Threaded)
| 150# Flanged
| GRV (Grooved)
| GRV (Grooved)
|
| Options | — | Low-Flow Bypass, Limit Switch, Strainer, Bypass
| Test Cocks, Strainer
| Position Indicator, Strainer
| Position Indicator, Strainer
| Test Cocks, Strainer
|
| Coating | ArmorTek 3-Part Epoxy
| ArmorTek 3-Part Epoxy
| ArmorTek 3-Part Epoxy
| ArmorTek 3-Part Epoxy
| ArmorTek 3-Part Epoxy
| ArmorTek 3-Part Epoxy
|
| UL FM Listed | Yes | Yes | — | Yes | Yes | Yes |
| Series | LFM115
| LFM115-74
| LFF115
| LFM115
| LFM115
| LFM115
|
| Country Of Origin | United States
| United States
| United States
| United States
| United States
| United States
|
| Warranty | 1 Year Limited
| 1 Year Limited
| 1 Year Limited
| 1 Year Limited
| 1 Year Limited
| 1 Year Limited
|
| Spec Sheet | ||||||
| Install Sheet | ||||||
| Device Type | Pressure Regulator
| Pressure Regulator
| Pressure Regulator
| Pressure Regulator
| Pressure Regulator
| Pressure Regulator
|
| Size Nominal | 2"
| 4"
| 2-1/2"
| 8"
| 1-1/4"
| 6"
|
| Inlet Size | 2"
| 4"
| 2-1/2"
| 8"
| 1-1/4"
| 6"
|
| Outlet Size | 2"
| 4"
| 2-1/2"
| 8"
| 1-1/4"
| 6"
|
| Lead Free | Yes | Yes | Yes | Yes | Yes | Yes |
| End Connection | — | Flanged
| NPT
| Flanged
| Grooved
| Grooved
|
| Body Material | Ductile Iron
| Ductile Iron
| Ductile Iron
| Ductile Iron
| Ductile Iron
| Ductile Iron
|
| Seat Material | EPDM
| Buna-N
| Buna-N
| EPDM
| EPDM
| EPDM
|
| Operation | Pilot-Operated Diaphragm
| Pilot-Operated Diaphragm
| Pilot-Operated Diaphragm
| Pilot-Operated Diaphragm
| Pilot-Operated Diaphragm
| Pilot-Operated Diaphragm
|
| Pressure Class | — | Class 300
| — | Class 150
| — | — |
| Max Pressure PSI | 600.0 psi | 600.0 psi | 300.0 psi | 600.0 psi | 600.0 psi | 600.0 psi |
| Max Temp °F | 300.0 °F | 160.0 °F | 160.0 °F | 300.0 °F | 300.0 °F | 300.0 °F |
| Certifications | UL, FM
| ASSE-1003, UL, FM
| — | UL, FM
| UL, FM
| UL, FM
|
