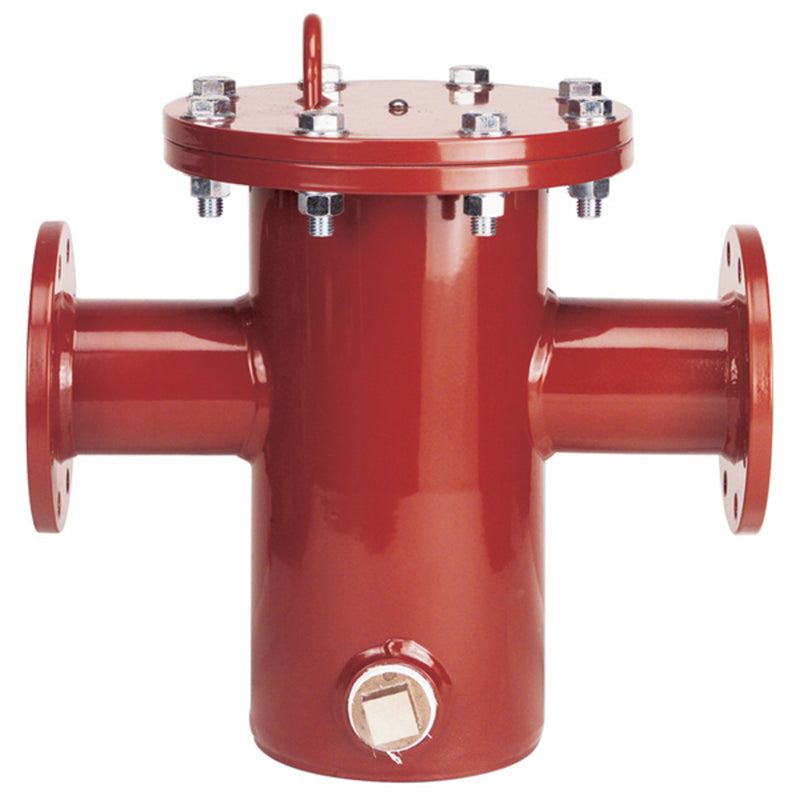

Watts 97FB-FSFE 4 Strainer, Flanged

The Watts 97FB-FSFE 4 is a 4" basket strainer with Flanged connections that removes pipeline debris and particulates to protect downstream equipment. It is rated to 175 psi.

This fire service strainer, 4 inch Watts Model 97FB-FSFE Steel, is UL and FM approved and is used in fire service protection applications in conjunction with a water spray system. The strainer features an epoxy-coated, steel body with flanged connections.

Features

• Flanged connections
• Fabricated steel epoxy lined and coated
• Clean out plug
• 304 stainless steel strainer element
• Includes: Strainer

Common Questions

Does it have a blowoff / blowdown port?

Yes. The retainer cap/cover is tapped for a blowoff connection, so you can flush accumulated debris by pulling the plug or piping a blowdown valve to it -- no need to break the strainer apart. The closure plug is included.

Specifications

• Type: Strainer
• Size: 4"
• Connection: Flanged
• Max Pressure (WOG, psi): 175
• Application: Fire Protection
• Country of Origin: United States
• Warranty: 1 Year Limited
• MPN: 97FB-FSFE 4
• Certifications: UL, FM
• Lead-Free: No
• Strainer Pattern: Basket – Simplex
• Screen Material: 304 Stainless Steel
• Blowoff / Drain Tapping: Yes
• Blowoff Plug Included: Yes
• Body Coating: Epoxy
