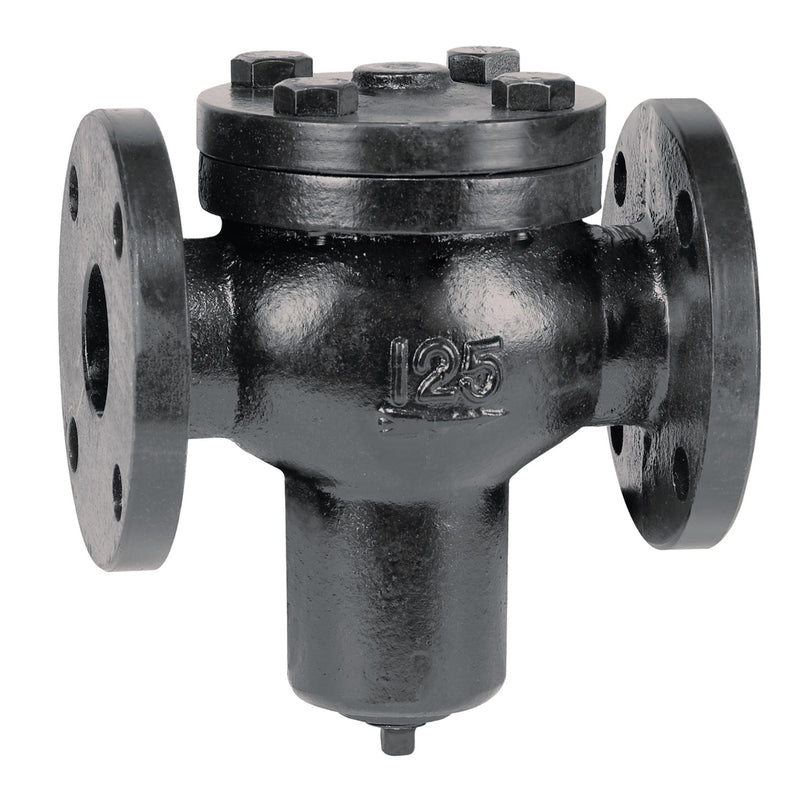

Watts 97FB-CIB 2 Strainer, Cast Iron, Flanged

The Watts 97FB-CIB 2 is a 2" basket strainer with Flanged connections that removes pipeline debris and particulates to protect downstream equipment. It features a cast iron body. Rated to 200 psi.

This cast iron simplex basket strainer, 2 inch Watts Model 97FB-CI, is for use in liquid and steam applications. It has a plugged blow off connection and angle designed baskets. The basket strainer comes with a bolted cover and a graphite gasket and may only be installed in a horizontal position.

Features

• Angle-designed basket
• Cast iron body
• Flanged connections
• Stainless steel screen
• Includes: Strainer

Common Questions

Can I use this on steam?

97FB-CIB 2 is listed by Watts for steam and liquid service. Its 200 psi WOG rating is a cold-service number, not the steam limit -- check the spec sheet for the WSP rating at your operating temperature.

Does it have a blowoff / blowdown port?

Yes. The retainer cap/cover is tapped for a blowoff connection, so you can flush accumulated debris by pulling the plug or piping a blowdown valve to it -- no need to break the strainer apart. The closure plug is included.

Specifications

• Type: Strainer
• Size: 2"
• Connection: Flanged
• Body Material: Cast Iron
• Pressure Class: Class 125
• Max Pressure (WOG, psi): 200
• Application: Steam
• Country of Origin: China
• Warranty: 1 Year Limited
• MPN: 97FB-CIB 2
• Certifications: UL, FM
• Lead-Free: No
• Strainer Pattern: Basket – Simplex
• Blowoff / Drain Tapping: Yes
• Blowoff Plug Included: Yes
• Body Coating: None
