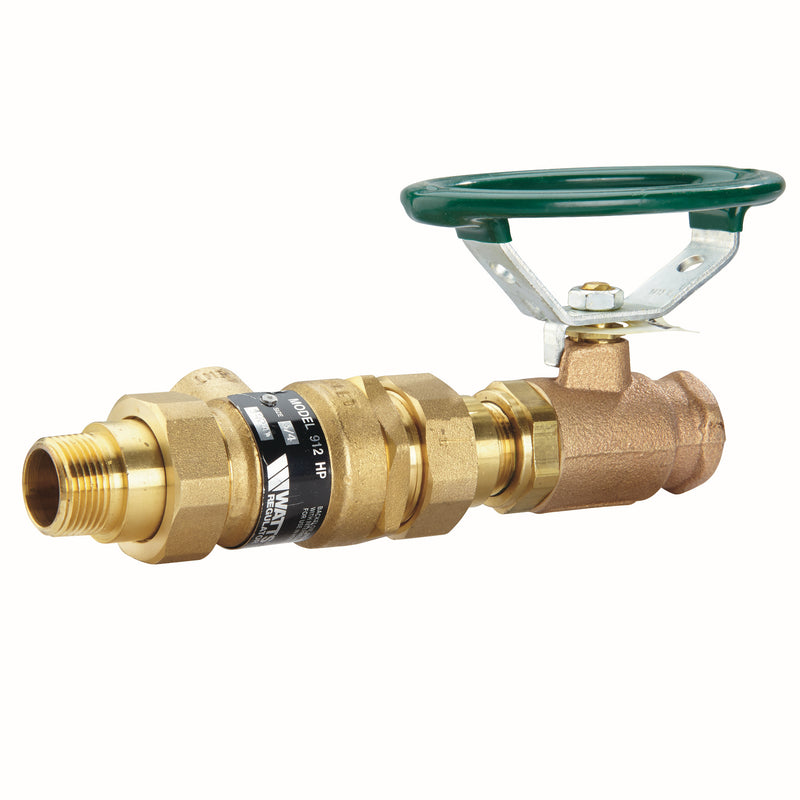

Watts 912HP 3/4 Dual Check Valve Backflow Preventer, Brass, Hose

The Watts 912HP 3/4 is a 3/4" dual check valve with Hose connections, approved for low health hazard protection. It features a brass body and a ptfe seat. Rated to 400 psi.

Series 912HP high pressure hose drop dual check vacuum breaker backflow preventer helps prevent the reverse flow of polluted water from processing and rendering areas from entering into the potable water supply. It consists of a brass body construction, stainless steel internal parts, dual check valves, bronze ball valve shutoff, and an atmospheric vent. It is specifically designed for non-health hazard, continuous pressure applications such as lines used for washdown of equipment. It can be installed vertically or horizontally and is ideal for use in food processing plants. Maximum working pressure is 400psi (27.5 bar).

Features

• High pressure
• Oval handle shutoff
• Strainer screen
• Horizontal or vertical installation
• Includes: Strainer

Common Questions

What hazard level is this Dual Check approved for?

It is rated for low health hazard (non-toxic, "pollutant") cross-connections only. Where the substance downstream could be a health hazard, codes require a reduced pressure zone (RPZ) assembly instead.

Can this be installed on potable water?

No. This model is not certified lead-free, so it may not be installed in potable water systems in states enforcing the NSF/ANSI 372 weighted-average lead rule. Use it on non-potable service — fire lines, irrigation or industrial water — or order the LF (lead-free) version of this model for drinking-water use.

Can this device be field tested?

No. It has no test cocks and is not a testable assembly, so it cannot be certified by a backflow tester. Where a jurisdiction requires an annually tested device, specify a testable assembly (double check, RPZ, or PVB) instead.

How does this have to be installed?

It is approved for either horizontal or vertical installation, with the flow arrow on the body pointing in the direction of flow.

Specifications

• Type: Dual Check
• Size: 3/4"
• Inlet Size: 3/4"
• Outlet Size: 3/4"
• Connection: Hose
• Body Material: Brass
• Seat / Seal Material: PTFE
• Max Pressure (psi): 400
• Application: Domestic Water
• Backflow Protection: Backpressure
• Operation: Continuous
• Pack Quantity: 6
• Country of Origin: United States
• Warranty: 1 Year Limited
• MPN: 912HP 3/4
• Lead-Free: No
• Assembly Type: Dual Check
• Hazard Protection Level: Low Health Hazard
• Field Testable: No
• Number of Test Cocks: 0
• Shutoff Valves: None
• Approved Orientation: Horizontal & Vertical
• Flood Sensor (SentryPlus Alert): No
• Strainer Included: Yes
• Air Gap Fitting Included: No
