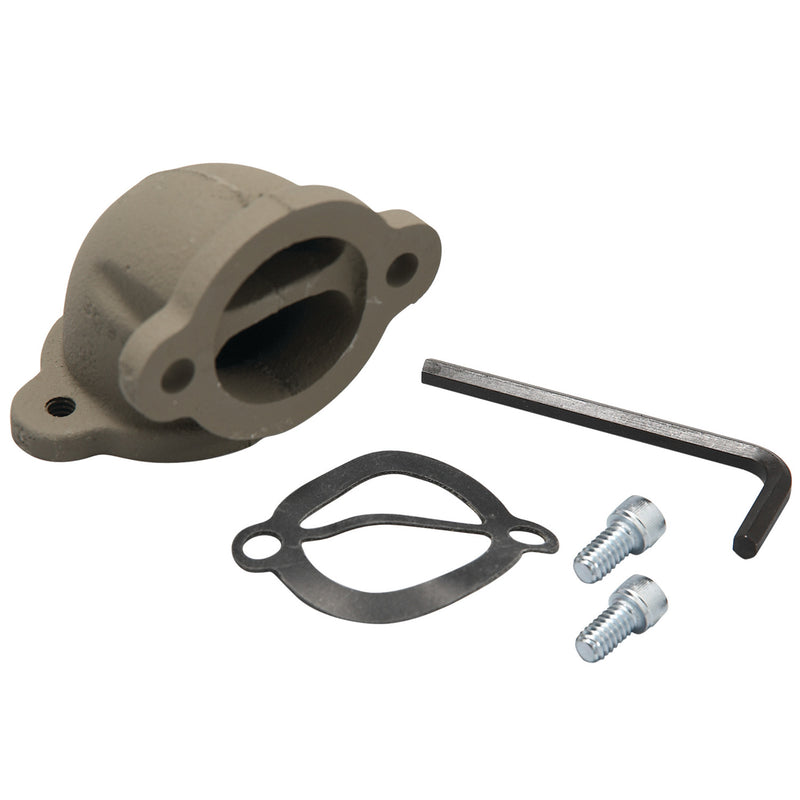

Watts 909ELC Vent Elbow, Bronze

The Watts 909ELC is a vent elbow for 3/4" to 2" Series 009, Series 909 and Series 995 reduced pressure zone (RPZ) backflow preventer assemblies. It features a bronze body and a silicone seat. Rated to 175 psi and 33°F to 180°F.

This air gap for reduced pressure zone assembly, 3/4-1" series 009 and 909, 1-1 1/2" series 0092M2, and 1 1/4-2" series 995, provides an unobstructed, physical separation between the discharge end of a potable water supply line and an open receiving vessel. The installation of an air gap and drain line are recommended on reduced pressure zone assemblies. It can be installed vertically or horizontally (vent elbow required for vertical installation).

Features

• Air gap fitting
• Nuisance discharge
• Metal construction
• Durable coating
• Includes: Air Gap

Common Questions

Will this fit my backflow preventer?

The 909ELC fits 3/4" to 1" Series 009 and Series 909; 1 1/4" to 2" Series 995. Check the series and size stamped on your assembly before ordering.

Specifications

• Body Material: Bronze
• Seat / Seal Material: Silicone
• Max Pressure (psi): 175
• Application: Domestic Water
• Operation: Continuous
• Pack Quantity: 25
• Country of Origin: United States
• Warranty: 1 Year Limited
• MPN: 909ELC
• Temperature: 33°F to 180°F
• Certifications: USC
• Lead-Free: No
• Accessory Type: Vent Elbow
• For Use With: Series 009;Series 909;Series 995
• Fits Valve Type: RPZ
• Fits Valve Size: 3/4";1";1 1/4";1 1/2";2"
