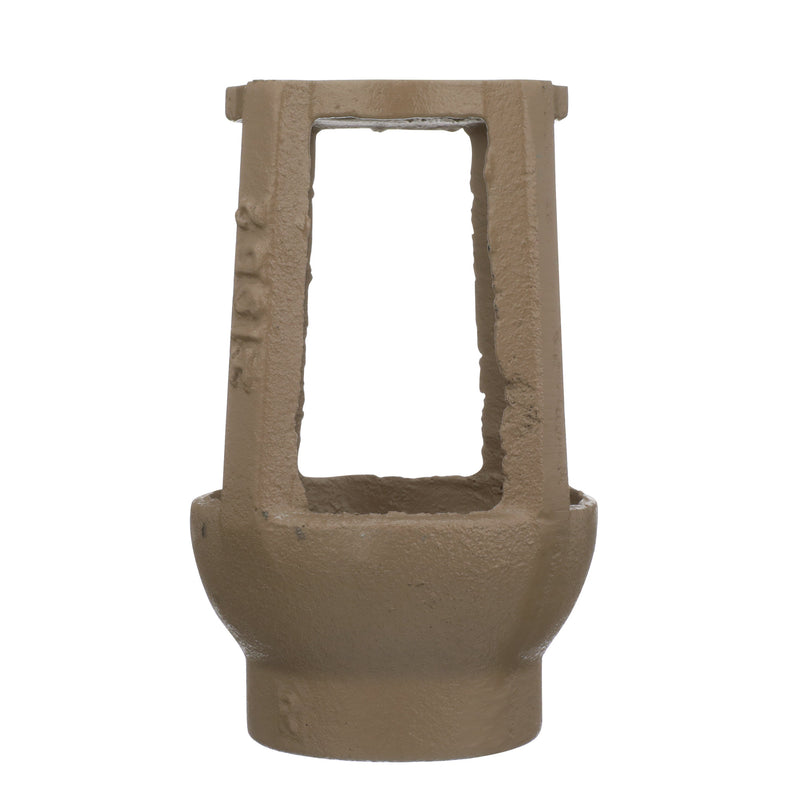

Watts 909AGF 2" Air Gap

The Watts 909AGF is an air gap for 1 1/4" to 3" Series 009, Series 909, Series 009M1 and Series 009M2 reduced pressure zone (RPZ) backflow preventer assemblies. It features a rubber seat.

This air gaps for reduced pressure zone assembly, 1 1/4 to 3" series 009 and 909, 1 1/4 to 2" series 009M1, and 2" 009M2, provide an unobstructed, physical separation between the discharge end of a potable water supply line and an open receiving vessel. The installation of an air gap and drain line are recommended on reduced pressure zone assemblies. It can be installed vertically or horizontally (vent elbow required for vertical installation).

Features

• Use with 1 1/4 to 3" 009/909, 1 1/4 to 2" 009M1, and 2" 009M2 series
• For nuisance RV discharge
• Epoxy coated
• For vertical or horizontal installation
• Includes: Air Gap

Common Questions

Will this fit my backflow preventer?

The 909AGF fits 1 1/4" to 3" Series 009 and Series 909; 1 1/4" to 2" Series 009M1; 2" Series 009M2. Check the series and size stamped on your assembly before ordering.

Specifications

• Size: 2"
• Outlet Size: 2"
• Seat / Seal Material: Rubber
• Application: Domestic Water
• Operation: Continuous
• Pack Quantity: 6
• Country of Origin: India
• Warranty: 1 Year Limited
• MPN: 909AGF
• Certifications: ANSI-A112.1.2
• Lead-Free: No
• Accessory Type: Air Gap
• For Use With: Series 009;Series 909;Series 009M1;Series 009M2
• Fits Valve Type: RPZ
• Fits Valve Size: 1 1/4";1 1/2";2";2 1/2";3"
