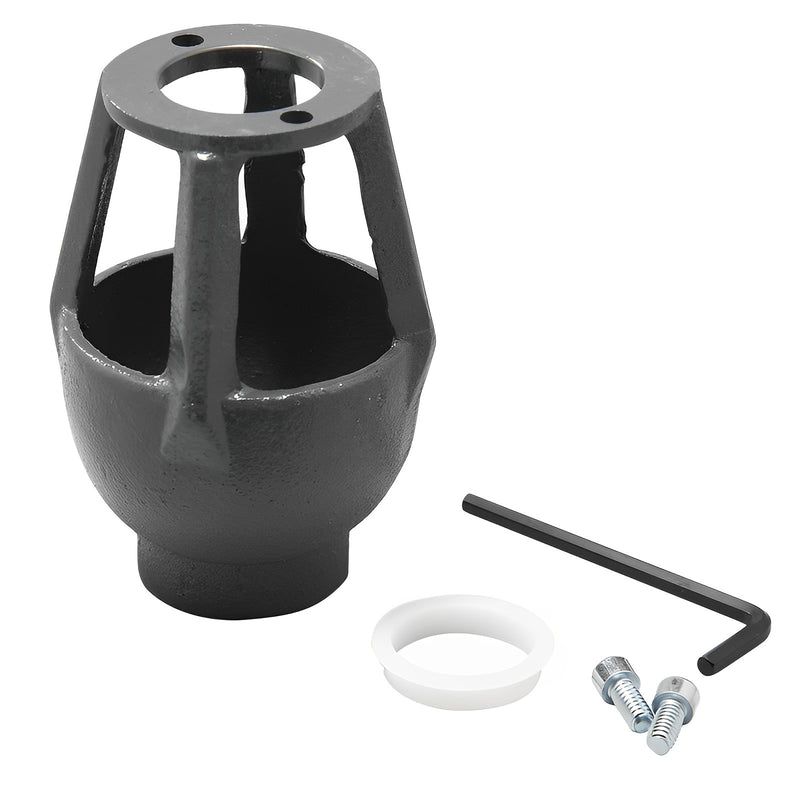

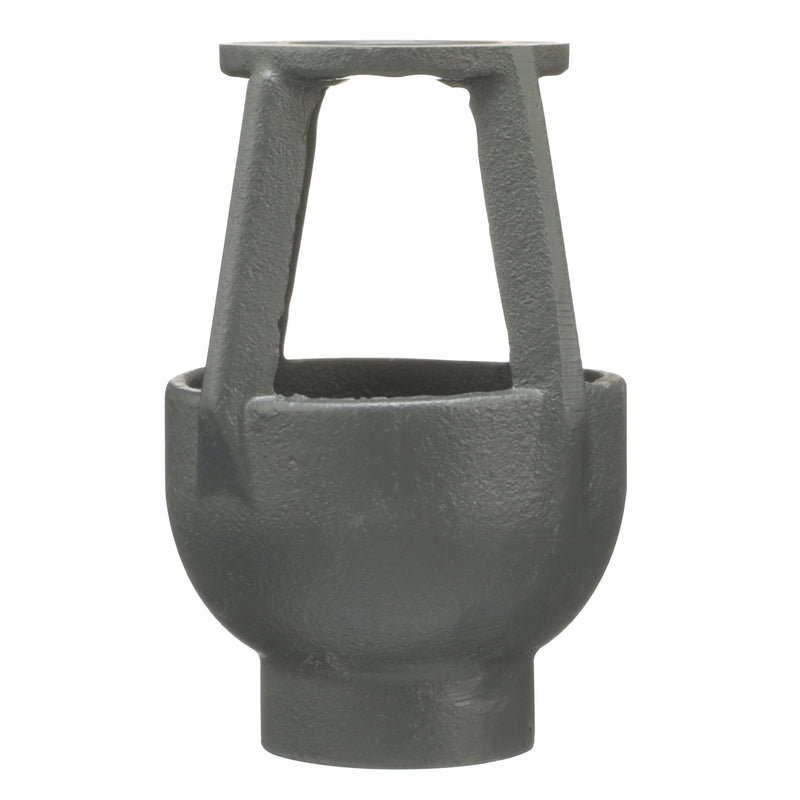

Watts 909AGC 1" Air Gap

The Watts 909AGC is an air gap for 3/4" to 2" Series 009, Series 909, Series 009M2 and Series 995 reduced pressure zone (RPZ) backflow preventer assemblies. It features a rubber seat.

This air gap for reduced pressure zone assembly, 3/4 to 1" series 009 and 909, 1 to 1 1/2" series 009M2, and 1 1/4 to 2" series 995, provides an unobstructed, physical separation between the discharge end of a potable water supply line and an open receiving vessel. The installation of an air gap and drain line are recommended on reduced pressure zone assemblies. It can be installed vertically or horizontally (vent elbow required for vertical installation).

Features

• Uese with 3/4 to 1" 009/909, 1 to 1 1/2" 009M2, and 1 1/4 to 2" 995 Series
• Hardware for installation included
• Diverts nuisance discharge
• Metal construction
• Durable coating
• Includes: Air Gap

Common Questions

Will this fit my backflow preventer?

The 909AGC fits 3/4" to 1" Series 009 and Series 909; 1" to 1 1/2" Series 009M2; 1 1/4" to 2" Series 995. Check the series and size stamped on your assembly before ordering.

Specifications

• Size: 1"
• Outlet Size: 1"
• Seat / Seal Material: Rubber
• Application: Domestic Water
• Operation: Continuous
• Pack Quantity: 6
• Country of Origin: China
• Warranty: 1 Year Limited
• MPN: 909AGC
• Certifications: ANSI-A112.1.2
• Lead-Free: No
• Accessory Type: Air Gap
• For Use With: Series 009;Series 909;Series 009M2;Series 995
• Fits Valve Type: RPZ
• Fits Valve Size: 3/4";1";1 1/4";1 1/2";2"
