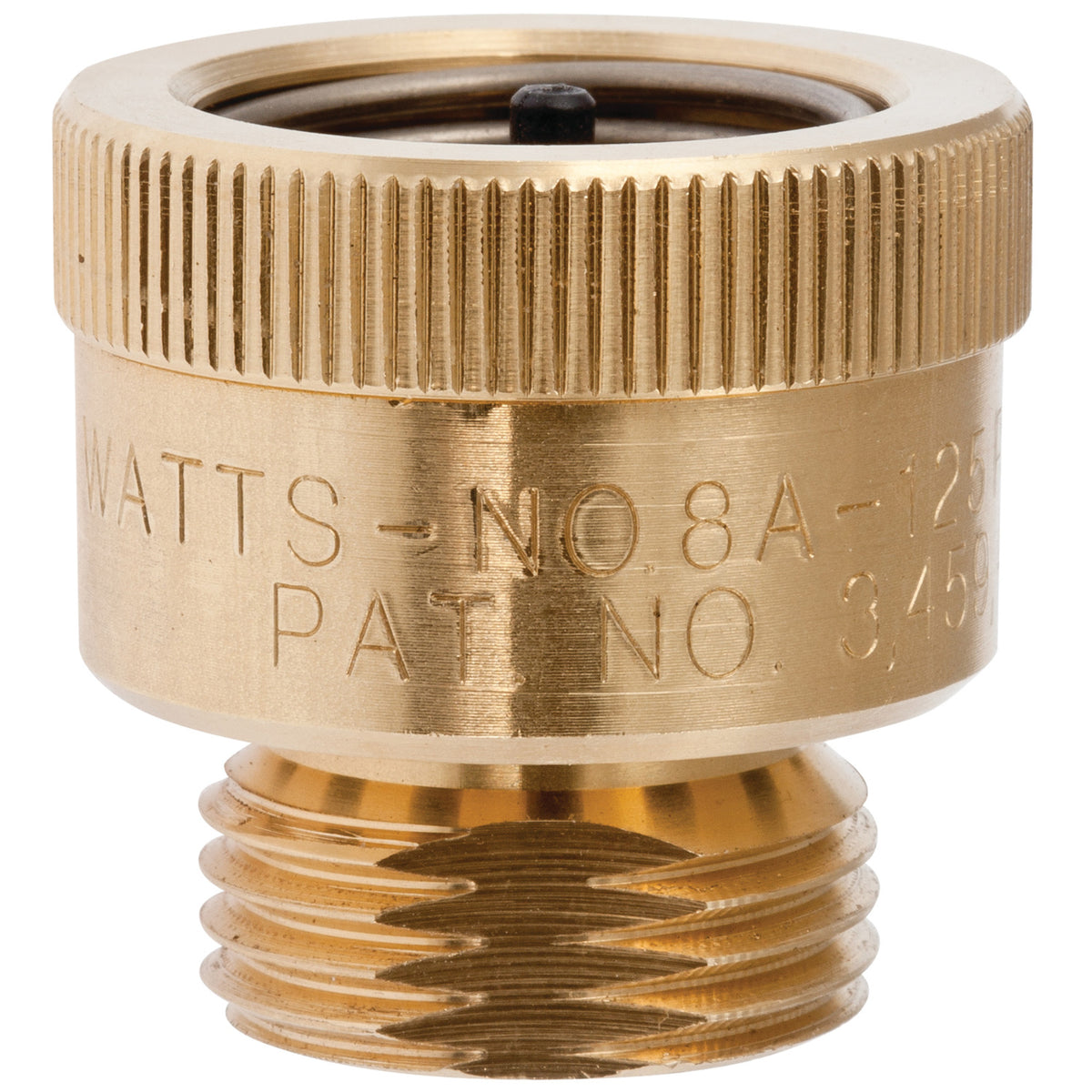

Watts 8A 3/4 Anti-Siphon Vacuum Breaker, Brass, NPT

The Watts 8A 3/4 is a 3/4" anti-siphon (atmospheric) vacuum breaker with NPT connections, approved for high health hazard protection. It features a brass body and a rubber seat. Rated to 125 psi and 33°F to 180°F.

This 3/4 inch hose bibb vacuum breaker backflow preventer permits the attachment of portable hoses to hose thread faucets and prevents the reverse flow of polluted water into the potable water supply due to backsiphonage. It consists of a brass body construction, stainless steel working parts, and a rubber diaphragm and disc. It is furnished with exclusive non-removable feature and equipped to allow sill cock to be drained. This hose bibb is ideal for inside and outside, health hazard installations requiring non-continuous pressure such as service sinks, swimming pools, photo developing tanks, laundry tubs, wash racks, dairy barns, marinas, and general outside gardening uses. Check with local inspection authorities for installation requirements.

Features

• Brass body
• Manual drain
• Non-removable once installed
• No special tools required for servicing
• 3/4 inch standard female hose thread
• Durable rubber diaphragm and disc for consistent positive seating
• Designed to prevent the backflow of polluted water from entering into the potable water supply
• Ideal for inside and outside, health hazard installations requiring non-continuous pressure such as service sinks, swimming pools, photo developing tanks, laundry tubs, wash racks, dairy barns, marinas, and general outside gardening uses
• Maximum pressure is 125 psi

Common Questions

What hazard level is this AVB approved for?

It is rated for high health hazard (toxic) cross-connections, but only against backsiphonage. The assembly is listed to ASSE 1011.

Can this be installed on potable water?

No. This model is not certified lead-free, so it may not be installed in potable water systems in states enforcing the NSF/ANSI 372 weighted-average lead rule. Use it on non-potable service — fire lines, irrigation or industrial water — or order the LF (lead-free) version of this model for drinking-water use.

Can this device be field tested?

No. It has no test cocks and is not a testable assembly, so it cannot be certified by a backflow tester. Where a jurisdiction requires an annually tested device, specify a testable assembly (double check, RPZ, or PVB) instead.

Will this protect against backpressure?

No. An anti-siphon (atmospheric) vacuum breaker protects against backsiphonage only. It will not stop backflow caused by backpressure — a downstream pump, elevated piping or a boiler — which requires a double check or RPZ assembly. It also may not be used under continuous pressure: the supply downstream of it must not stay pressurized for more than 12 hours in any 24-hour period.

Specifications

• Type: AVB
• Size: 3/4"
• Inlet Size: 3/4"
• Outlet Size: 3/4"
• Connection: NPT
• Body Material: Brass
• Seat / Seal Material: Rubber
• Max Pressure (psi): 125
• Application: Domestic Water
• Backflow Protection: Backsiphonage
• Operation: Non-Continuous
• Pack Quantity: 72
• Country of Origin: Mexico
• Warranty: 1 Year Limited
• MPN: 8A 3/4
• Temperature: 33°F to 180°F
• Certifications: ASSE-1011, ANSI-A112.1.3, IAPMO
• Lead-Free: No
• Assembly Type: AVB
• Hazard Protection Level: High Health Hazard
• ASSE Standard: ASSE 1011
• USC FCCCHR Approved: No
• Field Testable: No
• Number of Test Cocks: 0
• Shutoff Valves: None
• Flood Sensor (SentryPlus Alert): No
• Strainer Included: No
• Air Gap Fitting Included: No
