Specifications
Description

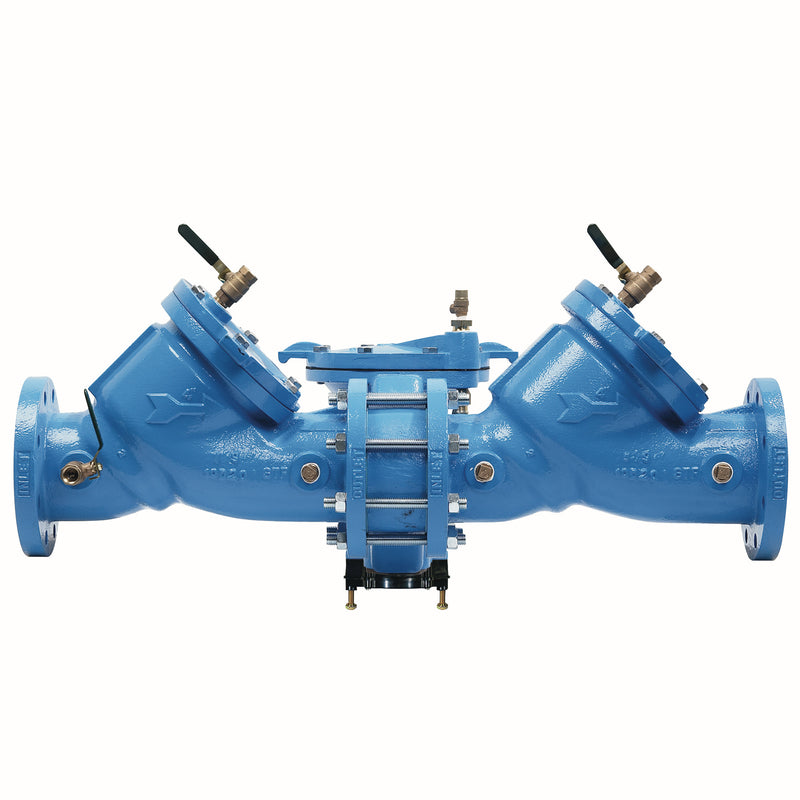

The Watts LF909-LF-NYC-FS 4 is a 4" lead-free reduced pressure zone (RPZ) backflow preventer with Flanged connections, approved for high health hazard protection. It features a cast iron body. Rated to 175 psi. This model is certified lead-free for potable-water installations.
This 4 inch lead free reduced pressure zone backflow preventer assembly prevents the reverse flow of polluted water from entering into the potable water supply due to backsiphonage and or backpressure. This assembly without gate valves consists of an epoxy coated cast iron body, captured spring check valves, replaceable seats, top mounted test cocks and a field reversible pressure differential relief valve. The coating on this backflow assembly uses ArmorTek®, a patented 3-part advanced epoxy coating system designed to limit both microbial induced (MIC) and exposed metal substrate corrosion. This NYC version comes with four sets of 304 stainless steel bolts/nuts with a 1/4 inch hole drilled axially through the bolts and a restrictor plate to limit discharge. This backflow assembly contains a flood sensor with SentryPlus Alert® technology to detect excessive water discharges from the relief valve. When activated through an add-on sensor connection kit, the flood sensor relays a signal that triggers notification of potential flooding to service personnel. The add-on sensor connection kit is available for building management systems and cellular communication.
Features
- Features a flood sensor with SentryPlus Alert technology to detect excessive water discharges from the relief valve
- Alert features available with add-on sensor connection kit
- Utilizes advanced ArmorTek coating technology to resist corrosion of internals
- Cast iron body construction with patented 3-part advanced epoxy coating system designed to limit both microbial induced (MIC) and exposed metal substrate corrosion
- Relief valve flow restrictor included
- Drilled bolts to eliminate flange drilling
- Includes: Test Cocks
- Includes: Flood Sensor
Common Questions
- What hazard level is this RPZ approved for?
- It is rated for high health hazard (toxic) cross-connections, so it may be used on either high or low hazard service. The assembly is listed to ASSE 1013.
- Is this model legal for potable water?
- Yes. It is certified lead-free to NSF/ANSI 372, which is what state plumbing codes require for any device in a drinking-water line.
- Does this assembly have to be tested every year?
- Yes. This is a field-testable assembly with 4 test cocks. Most water authorities require it to be tested and certified by a licensed backflow tester at installation and annually thereafter. It carries USC FCCCHR approval, which many jurisdictions accept as their sole approval list.
- Does this ship with inlet and outlet shutoff valves?
- No. This is the "less valves" (LF) configuration — the assembly ships without inlet and outlet shutoffs. Most jurisdictions require approved shutoffs on both sides, so order them separately or choose a QT, NRS, OSY or BFG variant of this model.
- Is this listed for fire protection service?
- Yes — it is UL Classified and FM Approved, the listings normally required for a backflow device on a fire sprinkler supply.
- Does the relief valve need a drain?
- Yes. An RPZ relief valve is designed to discharge, and it can dump a large volume of water, so it must never be installed in a pit or below grade and the discharge must be piped to an adequate drain through an air gap. The air gap fitting is not included with this model and is ordered separately. This model includes the SentryPlus Alert flood sensor, which signals a relief-valve discharge before it becomes a flood.
Specifications
- Type: RPZ
- Size: 4"
- Inlet Size: 4"
- Outlet Size: 4"
- Connection: Flanged
- Body Material: Cast Iron
- Max Pressure (psi): 175
- Application: Domestic Water
- Backflow Protection: Both
- Operation: Continuous
- Country of Origin: United States
- Warranty: 1 Year Limited
- MPN: LF909-LF-NYC-FS 4
- Certifications: ASSE-1013, CSA-B64, UL, FM, USC, IAPMO
- Lead-Free: Yes
- Assembly Type: RPZ
- Hazard Protection Level: High Health Hazard
- ASSE Standard: ASSE 1013
- USC FCCCHR Approved: Yes
- Fire Protection Listing: UL Classified;FM Approved
- Field Testable: Yes
- Number of Test Cocks: 4
- Shutoff Valves: None
- Flood Sensor (SentryPlus Alert): Yes
- Strainer Included: No
- Air Gap Fitting Included: No
Product Information
Dimensions
| Size Nominal | 4" | Inlet Size | 4" |
| Outlet Size | 4" | End Connection | Flanged |
Details
| Series | LF909 Large | Device Type | RPZ |
| Lead Free | Yes | Body Material | Cast Iron |
| Application | Domestic Water | Operation | Continuous |
| Max Pressure PSI | 175.0 psi | Backflow Protection | Both |
| Options | Test Cocks, Flood Sensor | Min Temp °F | 33.0 °F |
| Assembly Type | RPZ | Hazard Rating | High Health Hazard |
| ASSE Standard | ASSE 1013 | USC Approved | Yes |
| Fire Listing | UL Classified, FM Approved | Testable | Yes |
| Test Cocks | 4 | Shutoff Valve Type | None |
| Flood Sensor | Yes | — | — |
Certifications & Standards
| ASSE-1013 | CSA-B64 |
| UL | FM |
| USC | IAPMO |
Compare with similar products




| Backflow Protection | Both
| Both
| Both
| Both
| Both
| Both
|
| Assembly Type | RPZ
| RPZ
| RPZ
| RPZ
| RPZ
| RPZ
|
| Hazard Rating | High Health Hazard
| High Health Hazard
| High Health Hazard
| High Health Hazard
| High Health Hazard
| High Health Hazard
|
| ASSE Standard | ASSE 1013
| ASSE 909, ASSE 1013
| ASSE 909, ASSE 1013
| ASSE 1013
| ASSE 909, ASSE 1013
| ASSE 909, ASSE 1013
|
| USC Approved | Yes | Yes | Yes | Yes | Yes | Yes |
| Fire Listing | UL Classified, FM Approved
| — | — | UL Classified, FM Approved
| — | — |
| Testable | Yes | Yes | Yes | Yes | Yes | Yes |
| Test Cocks | 4
| 4
| 4
| 4
| 4
| 4
|
| Shutoff Valve Type | None
| Quarter-Turn Ball
| Quarter-Turn Ball
| Quarter-Turn Ball
| Quarter-Turn Ball
| Quarter-Turn Ball
|
| Orientation | — | Horizontal & Vertical
| Horizontal & Vertical
| — | Horizontal & Vertical
| Horizontal & Vertical
|
| Flood Sensor | Yes | Yes | Yes | — | — | — |
| Series | LF909 Large
| LF909 Small
| LF909 Small
| LF009
| LF909 Small
| LF909 Small
|
| Country Of Origin | United States
| United States
| United States
| United States
| United States
| United States
|
| Warranty | 1 Year Limited
| 1 Year Limited
| 1 Year Limited
| 1 Year Limited
| 1 Year Limited
| 1 Year Limited
|
| Spec Sheet | ||||||
| Install Sheet | ||||||
| Device Type | RPZ
| RPZ
| RPZ
| RPZ
| RPZ
| RPZ
|
| Size Nominal | 4"
| 1-1/4"
| 1"
| 3/4"
| 1-1/4"
| 1"
|
| Inlet Size | 4"
| 1-1/4"
| 1"
| 3/4"
| 1-1/4"
| 1"
|
| Outlet Size | 4"
| 1-1/4"
| 1"
| 3/4"
| 1-1/4"
| 1"
|
| Lead Free | Yes | Yes | Yes | Yes | Yes | Yes |
| End Connection | Flanged
| — | — | NPT
| — | — |
| Body Material | Cast Iron
| Copper
| Copper
| Bronze
| Copper
| Copper
|
| Application | Domestic Water
| Domestic Water
| Domestic Water
| Domestic Water
| Domestic Water
| Domestic Water
|
| Operation | Continuous
| Continuous
| Continuous
| Continuous
| Continuous
| Continuous
|
| Max Pressure PSI | 175.0 psi | 175.0 psi | 175.0 psi | 175.0 psi | 175.0 psi | 175.0 psi |
| Max Temp °F | — | 140.0 °F | 140.0 °F | — | 140.0 °F | 140.0 °F |
| Certifications | ASSE-1013, CSA-B64, UL, FM, USC, IAPMO
| ASSE-909, ASSE-1013, CSA-B64, USC, IAPMO
| ASSE-909, ASSE-1013, CSA-B64, USC, IAPMO
| ASSE-1013, CSA-B64, UL, FM, USC, IAPMO
| ASSE-909, ASSE-1013, CSA-B64, USC, IAPMO
| ASSE-909, ASSE-1013, CSA-B64, USC, IAPMO
|
| Options | Test Cocks, Flood Sensor
| Test Cocks, Flood Sensor
| Test Cocks, Flood Sensor
| Test Cocks
| Test Cocks
| Test Cocks
|
| Min Temp °F | 33.0 °F | 33.0 °F | 33.0 °F | 33.0 °F | 33.0 °F | 33.0 °F |
