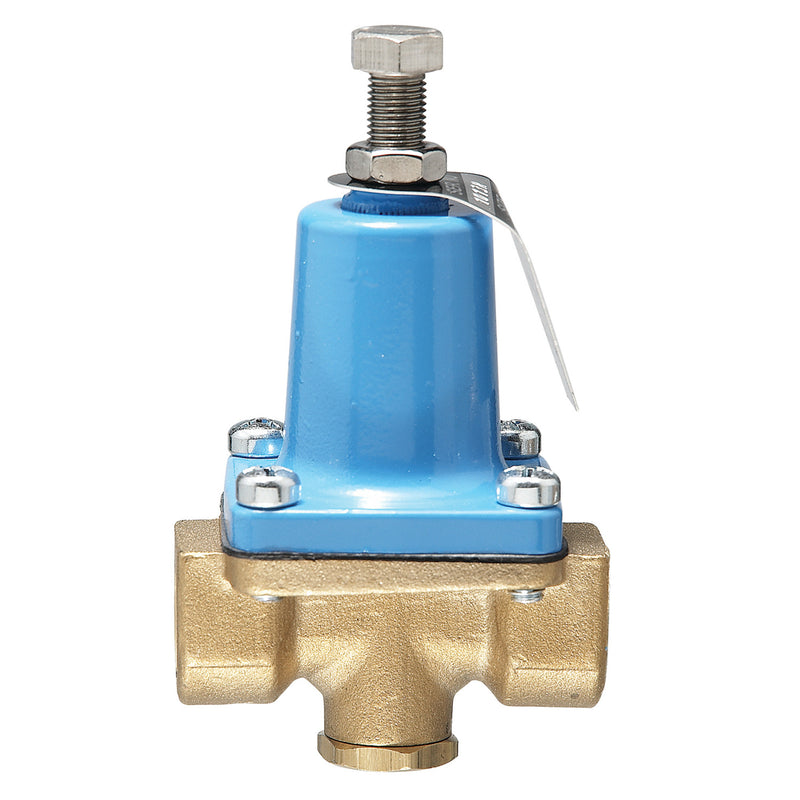

Watts 1/2 LF263AP 10-125 Lead-Free Pressure Reducing Valve, Brass, NPT

SKU: 88009265
Price:
Sale price$1,219.07 Regular price$1,751.00
Stock:

Not in regular stock. We order it, inspect it and ship it to you. Delivery times may vary.

Subtotal: $1,219.07

Free shipping over $200

Key Features

Set Pressure PSI 75.0 psi
Regulated Media Water & Fuel Oil
Capacity Class Small Process
Adj Range Max PSI 125.0 psi
See all product information

Similar products

Watts LLL100XL-2M7-150210 3/4
Watts RK N45B-EZ-N55BM1
Watts Watts RK N45B-EZ-N55BM1 Pressure Reducing Valve
Sale price$52.74 Regular price$75.75
Compare Products

Specifications

Description

The Watts 1/2 LF263AP 10-125 is a 1/2" lead-free pressure reducing valve with NPT connections. It reduces inlet pressure of up to 400 psi to an adjustable 10-125 psi downstream, factory set at 75 psi. It features a brass body and a buna-n seat. Rated to 400 psi. This model is certified lead-free for potable-water installations.

This 1/2 inch lead free small water pressure reducing pilot is used in small general purpose applications to regulate water pressure in piping systems using water and No. 2 fuel oil. It has an oversized orifice and is ideally used on beverage dispensing and paint spraying equipment, ice cube machines, humidifiers, drinking fountains, and other small process applications. It consists of a lead free brass body with an adjusting tee handle, NPT threaded female connections, three-way low water pressure gauge port, aluminum spring cage, Buna-N stainless steel disc, and a reinforced Buna-N diaphragm. The reduced water pressure range is 10 to 125 psi (1.7 to 7.9 bar) and is factory set at 75 psi (5.2 bar).

Features

  • Lead free brass body construction
  • Stainless steel stem and spring
  • Oversized orifice
  • Tee handle adjustment

Common Questions

What pressure is it set to out of the box?
1/2 LF263AP 10-125 ships factory set at 75 psi. The adjustable reduced-pressure range is 10 to 125 psi, so you can dial the outlet anywhere in that band on site with the adjusting screw - loosen the locknut, turn in to raise pressure and out to lower it, then retighten and verify with a gauge.
Does it include a strainer?
No - 1/2 LF263AP 10-125 does not have an integral strainer. On dirty or older supply lines, install a separate inline strainer upstream to keep debris off the seat.
Does it come with a gauge?
1/2 LF263AP 10-125 has a gauge tapping (port) but no gauge is included - the port ships plugged. Thread in your own gauge to read the reduced downstream pressure.

Specifications

  • Type: Pressure Regulator
  • Size: 1/2"
  • Inlet Size: 1/2"
  • Outlet Size: 1/2"
  • Connection: NPT
  • Body Material: Brass
  • Seat / Seal Material: Buna-N
  • Max Pressure (psi): 400
  • Shutoff: None
  • Pack Quantity: 12
  • Country of Origin: United States
  • Warranty: 1 Year Limited
  • MPN: 1/2 LF263AP 10-125
  • Lead-Free: Yes
  • Factory Set Pressure (psi): 75
  • Adjustable Range - Min (psi): 10
  • Adjustable Range - Max (psi): 125
  • Thermal Expansion Bypass: No
  • Integral Strainer: No
  • Gauge: Gauge Tap
  • Union Configuration: None
  • Capacity Class: Small Process
  • Regulated Media: Water & Fuel Oil

Product Information

SKUUPCCountry of OriginWarranty
88009265 098268571585 United States 1 Year Limited

Dimensions

Size Nominal 1/2" Inlet Size 1/2"
Outlet Size 1/2" End Connection NPT

Details

Series LF263AP Device Type Pressure Regulator
Lead Free Yes Body Material Brass
Seat Material Buna-N Max Pressure PSI 400.0 psi
Pack Qty 12 Shutoff None
Set Pressure PSI 75.0 psi Adj Range Min PSI 10.0 psi
Adj Range Max PSI 125.0 psi Gauge Config Gauge Tap
Union Config None Capacity Class Small Process
Regulated Media Water & Fuel Oil ——
