Specifications
Description

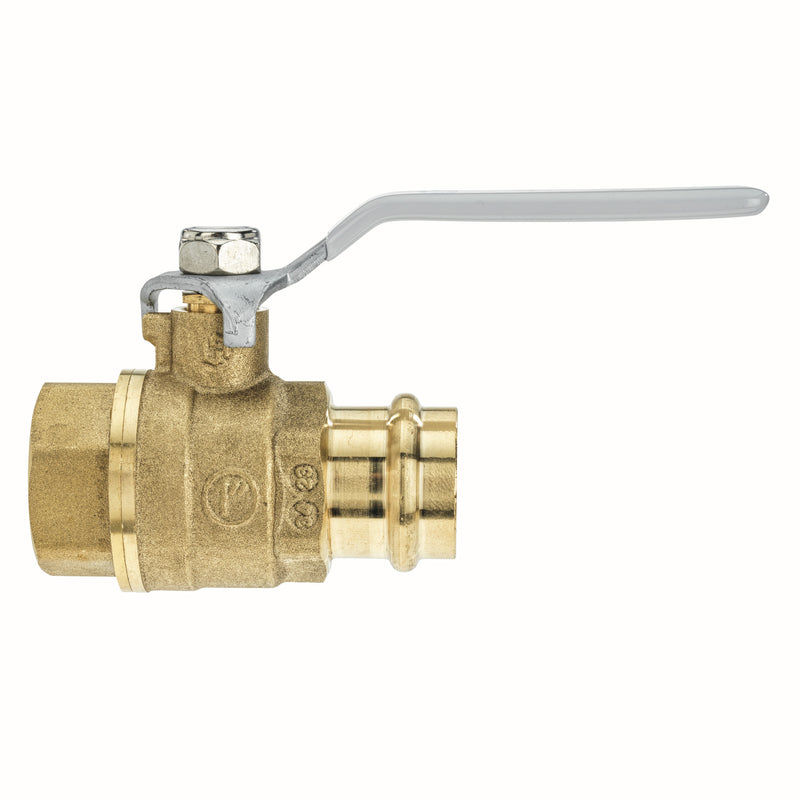

The Watts LFFBV-3 PR x FIP 1 is a 1" lead-free 2-piece full port ball valve with Press connections. It features a brass body and a epdm seat. Rated to 250 psi. This model is certified lead-free for potable-water installations.
This 1 inch lead free two-piece, full port, ball valve with integral press end fittings is designed for use in plumbing, heating, and potable water applications. It features a lead free brass body, adjustable packing gland, and bottom-loaded blowout proof stem. The valve has integral ASTM-B88 compliant press end connection on one end, with female NPT connection on the other end. The press fitting is rated to 250 psi CWP up to 210 degrees F.
Features
- Lead free brass body rated NSF61-8
- Bottom loaded blowout proof stem with packing nut
- Press end connections on one end with female NPT connection on the other
- Press end connections comply to ASTM-B88
Common Questions
- Is this full port or standard port?
- Full port. The ball bore matches the 1" pipe ID, so the valve adds almost no restriction — the right choice for pump suction, main shutoffs, and any run where you cannot give up head.
- Can I use this on natural gas or propane?
- No. This valve carries no fuel-gas listing, and code requires an ANSI Z21.15 / CSA listed valve for natural gas or LP. Use a Watts GBV series gas ball valve instead.
- Is this rated for potable water?
- Yes. It is a lead-free model certified to NSF/ANSI 61 and NSF/ANSI 372, so it meets the Safe Drinking Water Act limit for potable-water service.
- Can it be serviced without cutting it out?
- No. A 2-piece body is not designed for in-line rebuild; it is replaced as a unit. Choose a three-piece valve (LFB6800 / S-6800 series) where in-line serviceability matters.
Specifications
- Type: Ball
- Size: 1"
- Inlet Size: 1"
- Outlet Size: 1"
- Connection: Press
- Body Material: Brass
- Seat / Seal Material: EPDM
- Max Pressure (psi): 250
- Application: Domestic Water
- Port Style: Full
- Ways: 2-Way
- Pack Quantity: 24
- Country of Origin: China
- Warranty: 1 Year Limited
- MPN: LFFBV-3 PR x FIP 1
- Certifications: NSF-61, NSF-372, UL
- Lead-Free: Yes
- Valve Construction: 2-Piece
- Blowout-Proof Stem: Yes
- Handle Type: Lever
- Actuation: Manual
- Fuel Gas Rated: No
- Integral Drain / Waste Port: No
Product Information
Dimensions
| Size Nominal | 1" | Inlet Size | 1" |
| Outlet Size | 1" | End Connection | Press |
Details
| Series | LFFBV-3-PRxFIP | Device Type | Ball |
| Lead Free | Yes | Body Material | Brass |
| Seat Material | EPDM | Application | Domestic Water |
| Port Style | Full | Max Pressure PSI | 250.0 psi |
| Pack Qty | 24 | Valve Ways | 2-Way |
| Body Construction | 2-Piece | Blowout Proof Stem | Yes |
| Handle Type | Lever | Actuation | Manual |
Certifications & Standards
| NSF-61 | NSF-372 |
| UL | — |
Compare with similar products
| Port Style | Full
| Full
| Full
| Full
| Full
| — |
| Valve Ways | 2-Way
| 2-Way
| 2-Way
| 2-Way
| 2-Way
| 2-Way
|
| Body Construction | 2-Piece
| 2-Piece
| 2-Piece
| 2-Piece
| 2-Piece
| 2-Piece
|
| Ball Material | — | Stainless Steel
| Chrome-Plated Brass
| Chrome-Plated Brass
| Chrome-Plated Brass
| Chrome-Plated Brass
|
| Blowout Proof Stem | Yes | Yes | Yes | Yes | Yes | Yes |
| Handle Type | Lever
| Lever
| Lever
| Lever
| Lever
| Lever
|
| Actuation | Manual
| Manual
| Manual
| Manual
| Manual
| Manual
|
| WSP PSI | — | 150.0 psi | 150.0 psi | — | — | — |
| Series | LFFBV-3-PRxFIP
| LFB6090-SS
| LFFBV-3C
| LFFBV-PEX-F1960
| LFFBV-PEX-F1960
| LFFBV-PEX-F1960
|
| Country Of Origin | China
| China
| China
| China
| China
| China
|
| Warranty | 1 Year Limited
| 1 Year Limited
| 1 Year Limited
| 1 Year Limited
| 1 Year Limited
| 1 Year Limited
|
| Spec Sheet | ||||||
| Install Sheet | — | — | ||||
| Device Type | Ball
| Ball
| Ball
| Ball
| Ball
| Ball
|
| Size Nominal | 1"
| 3/4"
| 2"
| 1-1/4"
| 1-1/2"
| 1"
|
| Inlet Size | 1"
| 3/4"
| 2"
| 1-1/4"
| 1-1/2"
| 1"
|
| Outlet Size | 1"
| 3/4"
| 2"
| 1-1/4"
| 1-1/2"
| 1"
|
| Lead Free | Yes | Yes | Yes | Yes | Yes | Yes |
| End Connection | Press
| Sweat
| Sweat
| PEX
| PEX
| PEX
|
| Body Material | Brass
| Bronze
| Brass
| Brass
| Brass
| Brass
|
| Seat Material | EPDM
| PTFE
| PTFE
| EPDM
| EPDM
| EPDM
|
| Application | Domestic Water
| — | Domestic Water
| Domestic Water
| Domestic Water
| Domestic Water
|
| Max Pressure PSI | 250.0 psi | 600.0 psi | 600.0 psi | 160.0 psi | 160.0 psi | 160.0 psi |
| Max Temp °F | — | 400.0 °F | 400.0 °F | — | — | — |
| Certifications | NSF-61, NSF-372, UL
| NSF-61, NSF-372
| UL, FM, NSF-61
| NSF-61, NSF-372
| NSF-61, NSF-372
| NSF-61, NSF-372
|
| Pack Qty | 24
| 48
| 6
| 16
| 16
| 24
|
| Min Temp °F | — | 0.0 °F | 0.0 °F | — | — | — |
