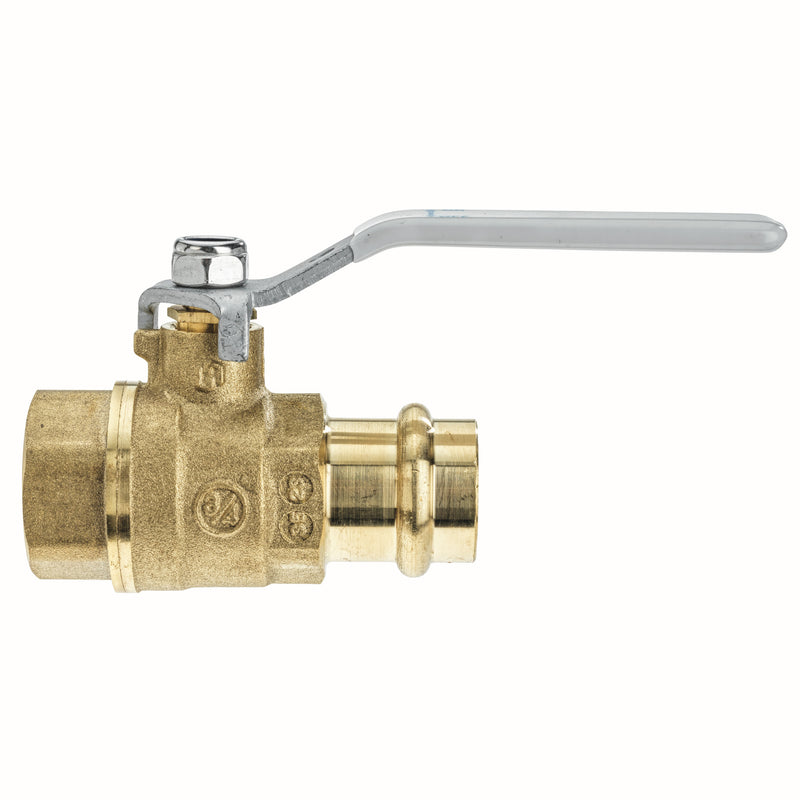

Watts LFFBV-3 PR x FIP 3/4 Lead-Free Ball Valve, Brass, Press

SKU: 88009019
Price:
Sale price$25.36 Regular price$130.50
Stock:

Not in regular stock. We order it, inspect it and ship it to you. Delivery times may vary.

Subtotal: $25.36

Free shipping over $200

Key Features

Actuation Manual
Body Construction 2-Piece
Valve Ways 2-Way
Spec Sheet Download
See all product information

Similar products

Zurn 3/4" - 1" 975XL2, Relief Valve Cover Lead Free 972-3AXL2-010F
Zurn Zurn 972-3AXL2-010F
Sale price$133.56 Regular price$190.00
Watts A2C-LS
Watts LFHK FBV-SS-TH-W 1
Watts Watts LFHK FBV-SS-TH-W 1 Lead-Free Ball Valve
Sale price$18.80 Regular price$27.00
Compare Products

Specifications

Description

The Watts LFFBV-3 PR x FIP 3/4 is a 3/4" lead-free 2-piece full port ball valve with Press connections. It features a brass body and a epdm seat. Rated to 250 psi. This model is certified lead-free for potable-water installations.

This 3/4 inch lead free two-piece, full port, ball valve with integral press end fittings is designed for use in plumbing, heating, and potable water applications. It features a lead free brass body, adjustable packing gland, and bottom-loaded blowout proof stem. The valve has integral ASTM-B88 compliant press end connection on one end, with female NPT connection on the other end. The press fitting is rated to 250 psi CWP up to 210 degrees F.

Features

  • Lead free brass body rated NSF61-8
  • Bottom loaded blowout proof stem with packing nut
  • Press end connections on one end with female NPT connection on the other
  • Press end connections comply to ASTM-B88

Common Questions

Is this full port or standard port?
Full port. The ball bore matches the 3/4" pipe ID, so the valve adds almost no restriction — the right choice for pump suction, main shutoffs, and any run where you cannot give up head.
Can I use this on natural gas or propane?
No. This valve carries no fuel-gas listing, and code requires an ANSI Z21.15 / CSA listed valve for natural gas or LP. Use a Watts GBV series gas ball valve instead.
Is this rated for potable water?
Yes. It is a lead-free model certified to NSF/ANSI 61 and NSF/ANSI 372, so it meets the Safe Drinking Water Act limit for potable-water service.
Can it be serviced without cutting it out?
No. A 2-piece body is not designed for in-line rebuild; it is replaced as a unit. Choose a three-piece valve (LFB6800 / S-6800 series) where in-line serviceability matters.

Specifications

  • Type: Ball
  • Size: 3/4"
  • Inlet Size: 3/4"
  • Outlet Size: 3/4"
  • Connection: Press
  • Body Material: Brass
  • Seat / Seal Material: EPDM
  • Max Pressure (psi): 250
  • Application: Domestic Water
  • Port Style: Full
  • Ways: 2-Way
  • Pack Quantity: 40
  • Country of Origin: China
  • Warranty: 1 Year Limited
  • MPN: LFFBV-3 PR x FIP 3/4
  • Certifications: NSF-61, NSF-372, UL
  • Lead-Free: Yes
  • Valve Construction: 2-Piece
  • Blowout-Proof Stem: Yes
  • Handle Type: Lever
  • Actuation: Manual
  • Fuel Gas Rated: No
  • Integral Drain / Waste Port: No

Product Information

SKUUPCCountry of OriginWarrantySpec SheetInstall Sheet
88009019 098268594867 China 1 Year Limited DownloadDownload

Dimensions

Size Nominal 3/4" Inlet Size 3/4"
Outlet Size 3/4" End Connection Press

Details

Series LFFBV-3-PRxFIP Device Type Ball
Lead Free Yes Body Material Brass
Seat Material EPDM Application Domestic Water
Port Style Full Max Pressure PSI 250.0 psi
Pack Qty 40 Valve Ways 2-Way
Body Construction 2-Piece Blowout Proof Stem Yes
Handle Type Lever Actuation Manual

Certifications & Standards

NSF-61 NSF-372
UL —

Compare with similar products

Port Style
Full
Full
Full
Full
Full
—
Valve Ways
2-Way
2-Way
2-Way
2-Way
2-Way
2-Way
Body Construction
2-Piece
2-Piece
2-Piece
2-Piece
2-Piece
2-Piece
Ball Material
—
Stainless Steel
Chrome-Plated Brass
Chrome-Plated Brass
Chrome-Plated Brass
Chrome-Plated Brass
Blowout Proof Stem
Yes
Yes
Yes
Yes
Yes
Yes
Handle Type
Lever
Lever
Lever
Lever
Lever
Lever
Actuation
Manual
Manual
Manual
Manual
Manual
Manual
WSP PSI
—
150.0 psi
150.0 psi
—
—
—
Series
LFFBV-3-PRxFIP
LFB6090-SS
LFFBV-3C
LFFBV-PEX-F1960
LFFBV-PEX-F1960
LFFBV-PEX-F1960
Country Of Origin
China
China
China
China
China
China
Warranty
1 Year Limited
1 Year Limited
1 Year Limited
1 Year Limited
1 Year Limited
1 Year Limited
Spec Sheet
Install Sheet
—
—
Device Type
Ball
Ball
Ball
Ball
Ball
Ball
Size Nominal
3/4"
3/4"
2"
1-1/4"
1-1/2"
1"
Inlet Size
3/4"
3/4"
2"
1-1/4"
1-1/2"
1"
Outlet Size
3/4"
3/4"
2"
1-1/4"
1-1/2"
1"
Lead Free
Yes
Yes
Yes
Yes
Yes
Yes
End Connection
Press
Sweat
Sweat
PEX
PEX
PEX
Body Material
Brass
Bronze
Brass
Brass
Brass
Brass
Seat Material
EPDM
PTFE
PTFE
EPDM
EPDM
EPDM
Application
Domestic Water
—
Domestic Water
Domestic Water
Domestic Water
Domestic Water
Max Pressure PSI
250.0 psi
600.0 psi
600.0 psi
160.0 psi
160.0 psi
160.0 psi
Max Temp °F
—
400.0 °F
400.0 °F
—
—
—
Certifications
NSF-61, NSF-372, UL
NSF-61, NSF-372
UL, FM, NSF-61
NSF-61, NSF-372
NSF-61, NSF-372
NSF-61, NSF-372
Pack Qty
40
48
6
16
16
24
Min Temp °F
—
0.0 °F
0.0 °F
—
—
—
