Specifications
Description

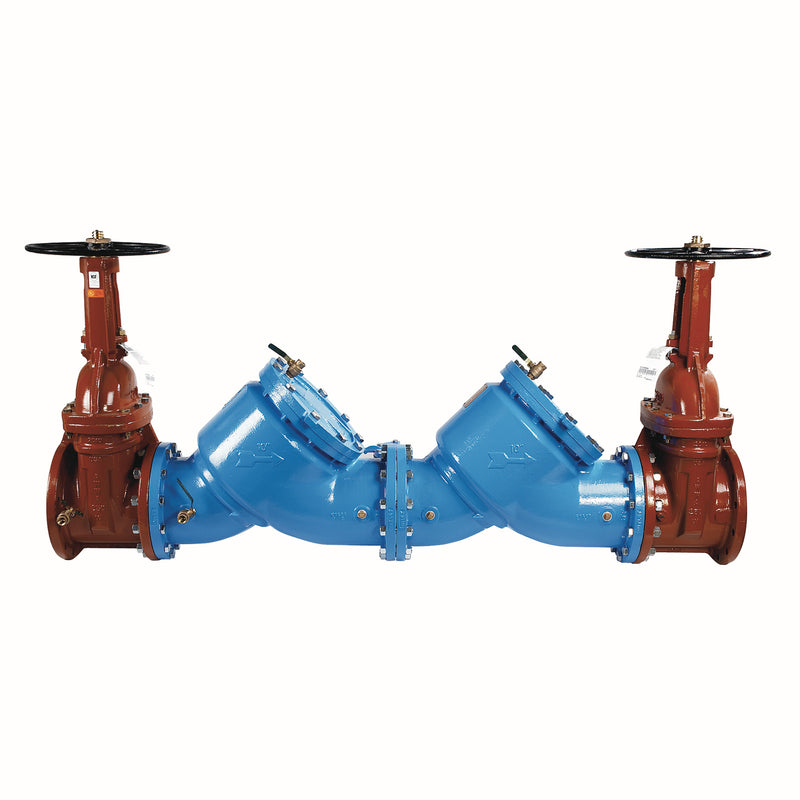

The Watts LF709-OSY NYC 4 is a 4" lead-free double check valve assembly with Flanged connections, approved for low health hazard protection. It features a cast iron body. Rated to 175 psi. This model is certified lead-free for potable-water installations.
This 4 inch lead free double check valve backflow preventer assembly is designed to prevent the reverse flow of contaminated water of non-potable quality from being pumped or siphoned into the potable water supply due to backsiphonage and or backpressure. Ideal for protection at cross-connections identified as non-health hazard applications and contaminants found at the service line. This assembly consists of an fused epoxy coated cast iron body, OSY resilient seated gate valves, test cocks, and a modular check design with center stem guide. The captured spring is accessible through a bolted cover plate. The coating on this backflow assembly uses ArmorTek®, a patented 3-part advanced epoxy coating system designed to limit both microbial induced (MIC) and exposed metal substrate corrosion. This NYC version comes with four sets of 304SS bolts/nuts with a 1/4 inch hole drilled axially through the bolt to properly tag backflow preventers.
Features
- Utilizes advanced ArmorTek coating technology to resist corrosion of internals
- Cast iron body construction with patented 3-part advanced epoxy coating system designed to limit both microbial induced (MIC) and exposed metal substrate corrosion
- Outside stem and yoke gate valves
- Maximum flow at low pressure drop
- Drilled bolts to eliminate flange drilling
- Includes: Test Cocks
Common Questions
- What hazard level is this Double Check approved for?
- It is rated for low health hazard (non-toxic, "pollutant") cross-connections only. Where the substance downstream could be a health hazard, codes require a reduced pressure zone (RPZ) assembly instead. The assembly is listed to ASSE 1015.
- Is this model legal for potable water?
- Yes. It is certified lead-free to NSF/ANSI 372, which is what state plumbing codes require for any device in a drinking-water line.
- Does this assembly have to be tested every year?
- Yes. This is a field-testable assembly with 4 test cocks. Most water authorities require it to be tested and certified by a licensed backflow tester at installation and annually thereafter. It carries USC FCCCHR approval, which many jurisdictions accept as their sole approval list.
- What shutoff valves are included?
- It is supplied with outside screw and yoke (OS&Y) gate valves on the inlet and outlet. OS&Y gates give the visible open/shut indication that fire-line and many water-authority specs require.
- Is this listed for fire protection service?
- Yes — it is UL Classified and FM Approved, the listings normally required for a backflow device on a fire sprinkler supply.
Specifications
- Type: Double Check
- Size: 4"
- Inlet Size: 4"
- Outlet Size: 4"
- Connection: Flanged
- Body Material: Cast Iron
- Max Pressure (psi): 175
- Application: Domestic Water
- Backflow Protection: Both
- Operation: Continuous
- Country of Origin: United States
- Warranty: 1 Year Limited
- MPN: LF709-OSY NYC 4
- Certifications: ASSE-1015, CSA-B64, UL, FM, USC, IAPMO
- Lead-Free: Yes
- Assembly Type: Double Check
- Hazard Protection Level: Low Health Hazard
- ASSE Standard: ASSE 1015
- USC FCCCHR Approved: Yes
- Fire Protection Listing: UL Classified;FM Approved
- Field Testable: Yes
- Number of Test Cocks: 4
- Shutoff Valves: OSY Gate
- Flood Sensor (SentryPlus Alert): No
- Strainer Included: No
- Air Gap Fitting Included: No
Product Information
Dimensions
| Size Nominal | 4" | Inlet Size | 4" |
| Outlet Size | 4" | End Connection | Flanged |
Details
| Series | LF709 | Device Type | Double Check |
| Lead Free | Yes | Body Material | Cast Iron |
| Application | Domestic Water | Operation | Continuous |
| Max Pressure PSI | 175.0 psi | Backflow Protection | Both |
| Options | Test Cocks | Min Temp °F | 33.0 °F |
| Assembly Type | Double Check | Hazard Rating | Low Health Hazard |
| ASSE Standard | ASSE 1015 | USC Approved | Yes |
| Fire Listing | UL Classified, FM Approved | Testable | Yes |
| Test Cocks | 4 | Shutoff Valve Type | OSY Gate |
Certifications & Standards
| ASSE-1015 | CSA-B64 |
| UL | FM |
| USC | IAPMO |
Compare with similar products



| Backflow Protection | Both
| Both
| Both
| Both
| Both
| Both
|
| Assembly Type | Double Check
| Double Check
| Double Check
| Double Check
| Double Check
| Double Check
|
| Hazard Rating | Low Health Hazard
| Low Health Hazard
| Low Health Hazard
| Low Health Hazard
| Low Health Hazard
| Low Health Hazard
|
| ASSE Standard | ASSE 1015
| ASSE 1015
| ASSE 1015
| ASSE 1015
| ASSE 1015
| ASSE 1015
|
| USC Approved | Yes | Yes | Yes | Yes | Yes | Yes |
| Fire Listing | UL Classified, FM Approved
| UL Classified
| UL Classified
| UL Classified
| UL Classified
| UL Classified
|
| Testable | Yes | Yes | Yes | Yes | Yes | Yes |
| Test Cocks | 4
| 4
| 4
| 4
| 4
| 4
|
| Shutoff Valve Type | OSY Gate
| Quarter-Turn Ball
| Quarter-Turn Ball
| Quarter-Turn Ball
| Quarter-Turn Ball
| None
|
| Series | LF709
| LF007
| LF007
| LF007
| LF007
| 007
|
| Country Of Origin | United States
| United States
| United States
| United States
| United States
| United States
|
| Warranty | 1 Year Limited
| 1 Year Limited
| 1 Year Limited
| 1 Year Limited
| 1 Year Limited
| 1 Year Limited
|
| Spec Sheet | ||||||
| Install Sheet | ||||||
| Device Type | Double Check
| Double Check
| Double Check
| Double Check
| Double Check
| Double Check
|
| Size Nominal | 4"
| 2"
| 1/2"
| 1"
| 1-1/2"
| 3/4"
|
| Inlet Size | 4"
| 2"
| 1/2"
| 1"
| 1-1/2"
| 3/4"
|
| Outlet Size | 4"
| 2"
| 1/2"
| 1"
| 1-1/2"
| 3/4"
|
| Lead Free | Yes | Yes | Yes | Yes | Yes | Yes |
| End Connection | Flanged
| NPT
| NPT
| NPT
| NPT
| NPT
|
| Body Material | Cast Iron
| Cast Iron
| Cast Iron
| Cast Iron
| Cast Iron
| Bronze
|
| Seat Material | — | Rubber
| Rubber
| Rubber
| Rubber
| Rubber
|
| Application | Domestic Water
| Domestic Water
| Domestic Water
| Domestic Water
| Domestic Water
| Domestic Water
|
| Operation | Continuous
| Continuous
| Continuous
| Continuous
| Continuous
| Continuous
|
| Max Pressure PSI | 175.0 psi | 175.0 psi | 175.0 psi | 175.0 psi | 175.0 psi | 175.0 psi |
| Certifications | ASSE-1015, CSA-B64, UL, FM, USC, IAPMO
| ASSE-1015, CSA-B64, UL, USC, IAPMO
| ASSE-1015, CSA-B64, UL, USC, IAPMO
| ASSE-1015, CSA-B64, UL, USC, IAPMO
| ASSE-1015, CSA-B64, UL, USC, IAPMO
| ASSE-1015, CSA-B64, UL, USC, IAPMO
|
| Options | Test Cocks
| Test Cocks
| Test Cocks
| Test Cocks
| Test Cocks
| Test Cocks
|
| Min Temp °F | 33.0 °F | 33.0 °F | 33.0 °F | 33.0 °F | 33.0 °F | 33.0 °F |
