Specifications
Description

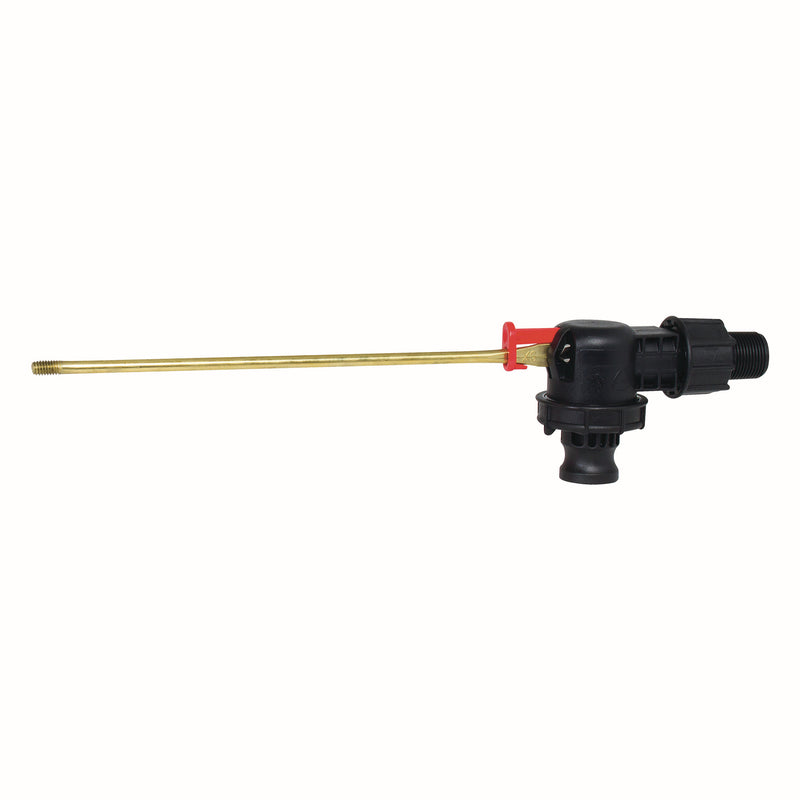

The Watts XS134SA is a piston-operated trough float valve for livestock watering and agricultural water supply, serviceable in place. It features a glass-reinforced nylon body and a buna-n seat. Rated to 70 psi.
This 1 x 3/4 inch short arm float valve is piston operated and is suited for confined spaces. The valve can be fully serviced by hand and in place, it has a male camlock outlet that allows for the water supply to be used for other means such as cleaning down machinery and filling up water storage tanks. The valve also comes with a shut off pin allowing the water supply to valve to be shut off.
Features
- Designed to help control water levels and prevent backflow in high-demand, medium- to large-sized troughs, including those in confined spaces
- Ideal for use in livestock watering, agricultural water supply, ranch, farm and/or hobby farm settings
- The high-volume, plunger-style valve handles flow rates in excess of 80 gpm@70 psi
- Construction of UV-stable fiberglass-reinforced nylon, Acetyl (POM) and brass ensures durability and resistance to both corrosion and dezincification
- Fully serviceable for long-term use
Common Questions
- Does this include the float ball and rod?
- Yes. This valve has an integral float and installs complete; there is no separate float ball or 3/8"-16 rod to buy, unlike the Watts bronze lever-arm float valves.
- Can I use it on drinking water?
- No. This valve is not certified lead-free and is for non-potable service only — cooling tower and refrigeration make-up, irrigation, livestock watering and tank fill. Do not install it on a potable water supply.
- What is the flow capacity?
- 80+ GPM @ 70 psi. Size the valve to how fast the tank or trough has to refill, not just to the pipe it lands on.
Specifications
- Type: Float
- Body Material: Glass-Reinforced Nylon
- Seat / Seal Material: Buna-N
- Max Pressure (psi): 70
- Application: Livestock
- Pack Quantity: 60
- Country of Origin: NZ
- Warranty: 1 Year Limited
- MPN: XS134SA
- Lead-Free: No
- Actuation: Piston
- Float & Rod Included: Yes
- Max Flow (GPM): 80.0
- Flow Capacity: 80+ GPM @ 70 psi
Product Information
| SKU | UPC | Country of Origin | Warranty | Spec Sheet |
|---|---|---|---|---|
| 88005632 | 098268160895 | NZ | 1 Year Limited | Download |
Details
| Series | XS | Device Type | Float |
| Body Material | Glass-Reinforced Nylon | Seat Material | Buna-N |
| Application | Livestock | Max Pressure PSI | 70.0 psi |
| Pack Qty | 60 | Actuation | Piston |
| Float Included | Yes | Max Flow GPM | 80.0 GPM |
| Flow Detail | 80+ GPM @ 70 psi | — | — |
