Specifications
Description

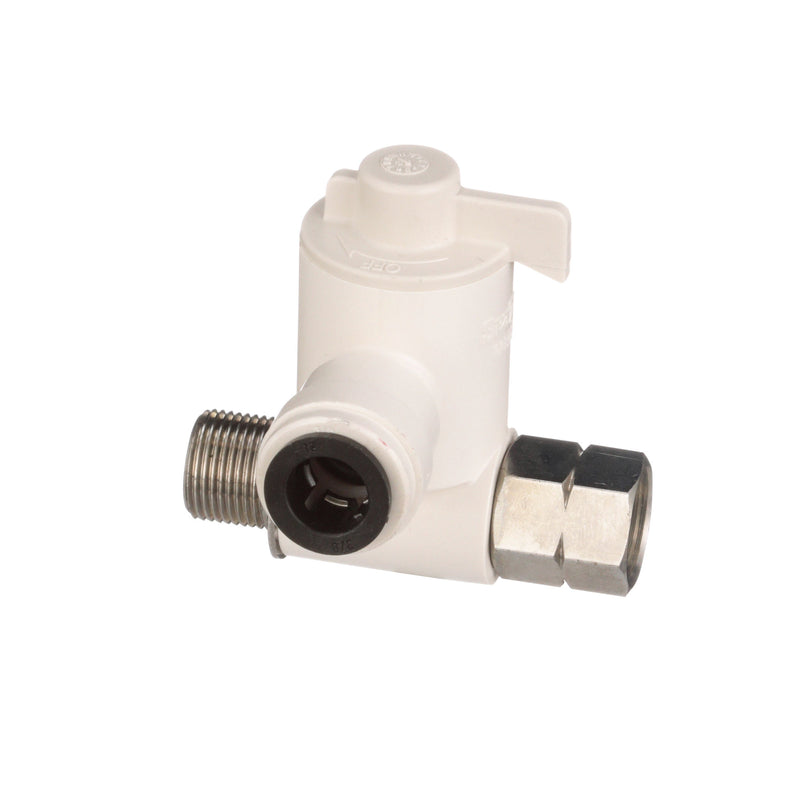

The Watts LF3561-0604CP is a 3/8" lead-free dual outlet valve with a 3/8" Compression inlet and a Compression outlet. It features a polysulfone body. This model is certified lead-free for potable-water installations.
This 1/4" OD x 3/8" Male Compression x 3/8" Female Compression AquaLock™ plastic shutoff valve works with copper, CPVC, PEX, and CTS rated pipe. It is easy to install, no tools or tube inserts are required. The fitting can be used for hot and cold water applications. The unique O-ring guide feature provides a zero-leak connection. Unlike barb fittings, this fitting joins the tubing on the outside, increasing the flow capacity. After a connection has been made even under maximum pressure, the tubing is able to swivel, making the fitting ideal for vibrating and dynamic applications. Available in bulk quantities as contractor pack.
Features
- No tools required for installation or removal
- Rotates under pressure after installed for high flexibility during installation
- Can be used for hot and cold water applications, including behind the wall applications
- Works with copper, CPVC, PEX, and CTS rated pipe
- Zero-leak connections
- 25-year limited warranty
Common Questions
- Is the "CP" version a different valve than the LF3561-0604?
- No. "CP" is Watts' contractor/bulk pack code, not a finish or a design change — the LF3561-0604CP and the LF3561-0604 are the same valve with the same size, connection, dimensions and weight. CP simply ships in a bulk carton rather than a single pack, which is why the per-unit price is lower.
Specifications
- Size: 3/8"
- Inlet Size: 3/8"
- Connection: Push-to-Connect (CTS)
- Body Material: Polysulfone
- Pack Quantity: 100
- Country of Origin: United States
- Warranty: 1 Year Limited
- MPN: LF3561-0604CP
- Lead-Free: Yes
- Body Pattern: Dual Outlet
- Inlet Connection: Compression
- Outlet Connection: Compression
- Outlets: 2
- Automatic Shutoff: No
- Leak Sensor: No
- Hot & Cold Rated: Yes
- Contractor (Bulk) Pack: Yes
Please note: this item is sold in multiples of 10 units. Orders must be placed in quantities of 10, 20, 30, etc.
Product Information
| SKU | UPC | Country of Origin | Warranty |
|---|---|---|---|
| 81902858 | 098268806908 | United States | 1 Year Limited |
Dimensions
| Size Nominal | 3/8" | Inlet Size | 3/8" |
| End Connection | Push-to-Connect (CTS) | — | — |
Details
| Series | Shutoff Valve LF3561 | Lead Free | Yes |
| Body Material | Polysulfone | Pack Qty | 100 |
| Body Pattern | Dual Outlet | Inlet Connection Type | Compression |
| Outlet Connection Type | Compression | Outlet Count | 2 |
| Hot Cold Rated | Yes | Contractor Pack | Yes |
