Specifications
Description

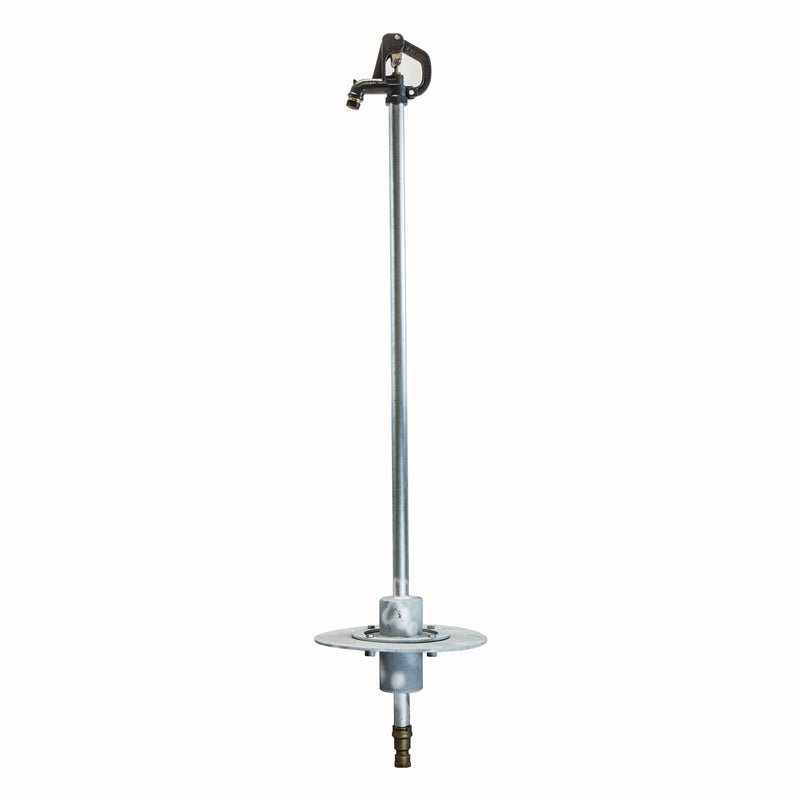

The Watts HY-900 is a 3/4" roof hydrant for commercial installations. It mounts through the roof deck. The inlet is NPT. It features a cast iron body.
This Watts non-freeze roof hydrant is engineered with an epoxy coated cast iron head with lift handle and lock option, a galvanized casing, and bronze internal working parts and valve housing. It features an 1/8" NPT drain port and an integral epoxy coated cast iron roof mounting plate with clamping collar for quick and easy installation.
Features
- Non-Freeze
- Epoxy coated CI head
- Galvanized casing
- CI Roof mounting plate
Common Questions
- How does it mount?
- It is a roof hydrant, not a wall hydrant. The cast-iron mounting plate and clamping collar set into the roof deck and the casing runs down through the structure, so there is no wall thickness to match.
- Is it freeze-proof, and will it drain itself?
- Yes on both. It is a non-freeze design: the valve sits down in the casing below the roof line where it stays warm, and the casing empties through the 1/8" NPT drain port each time you shut it off. Pull the hose off before winter so nothing traps water above the valve.
- Does it have a built-in vacuum breaker (anti-siphon)?
- No, this model has no vacuum breaker. Where the code requires backflow protection on a hose connection, plan on an add-on breaker at the outlet, or choose a model with an integral vacuum breaker.
- Do I need a key to operate it?
- No key. The cast-iron head has a lift handle, and the head accepts a padlock if you need to keep the roof supply secured.
Specifications
- Size: 3/4"
- Outlet Size: 3/4"
- Connection: NPT
- Body Material: Cast Iron
- Country of Origin: China
- Warranty: 1 Year Limited
- MPN: HY-900
- Lead-Free: No
- Hydrant Type: Roof Hydrant
- Freeze Proof: Yes
- Anti-Siphon (Integral Vacuum Breaker): No
- Mounting: Roof Mount
- Operation: Lift Handle
- Grade: Commercial
- Self-Draining: Yes
- Face Finish: Epoxy Coated Cast Iron
Product Information
| SKU | UPC | Country of Origin | Warranty | Spec Sheet |
|---|---|---|---|---|
| 8188208 | 098268278347 | China | 1 Year Limited | Download |
Dimensions
| Size Nominal | 3/4" | Outlet Size | 3/4" |
| End Connection | NPT | — | — |
Details
| Series | HY-900 | Body Material | Cast Iron |
| Hydrant Type | Roof Hydrant | Freeze Proof | Yes |
| Mounting | Roof Mount | Operation Type | Lift Handle |
| Grade | Commercial | Self Draining | Yes |
| Face Finish | Epoxy Coated Cast Iron | — | — |
