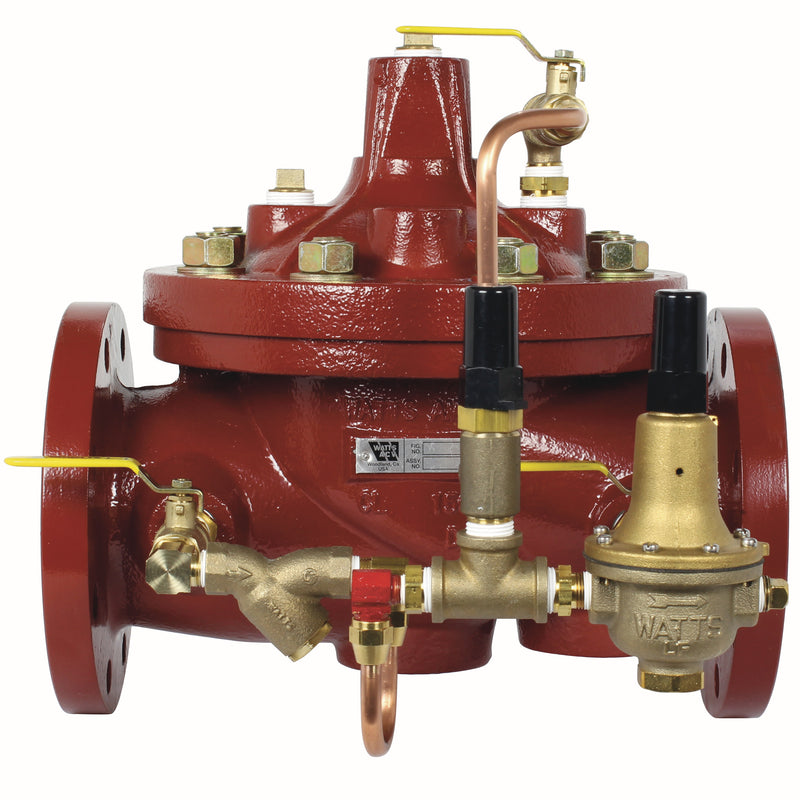

The Watts LFM115-2 FC AOS 2 is a 2" lead-free globe-pattern pilot-operated pressure reducing & sustaining control valve. It features a ductile iron body and a epdm seat. Rated to 600 psi and up to 300°F. This model is certified lead-free for potable-water installations.
Common Questions
- What fluid temperature can the EPDM trim handle?
- This valve is built with EPDM elastomers, good to about 300°F. Watts offers the same body with Buna-N (to 160°F), FKM/Viton (to 250°F) or EPDM (to 300°F) — pick the elastomer for your fluid temperature, not the body.
- Is this valve certified lead-free for potable water?
- Yes. The "LF" prefix denotes Watts lead-free construction, compliant with the weighted-average 0.25% lead requirement of the Safe Drinking Water Act (NSF/ANSI 372) for potable-water service.
Specifications
-
Type: Pressure Regulator
-
Size: 2"
-
Inlet Size: 2"
-
Outlet Size: 2"
-
Body Material: Ductile Iron
-
Seat / Seal Material: EPDM
-
Max Pressure (psi): 600
-
Operation: Pilot-Operated Diaphragm
-
Country of Origin: United States
-
Warranty: 1 Year Limited
-
MPN: LFM115-2 FC AOS 2
-
Temperature: up to 300°F
-
Lead-Free: Yes
-
Item Type: Valve
-
Control Function: Pressure Reducing & Sustaining
-
Valve Platform: Mustang (M-Series)
-
Body Pattern: Globe
-
Coating: Fusion-Bonded Epoxy
