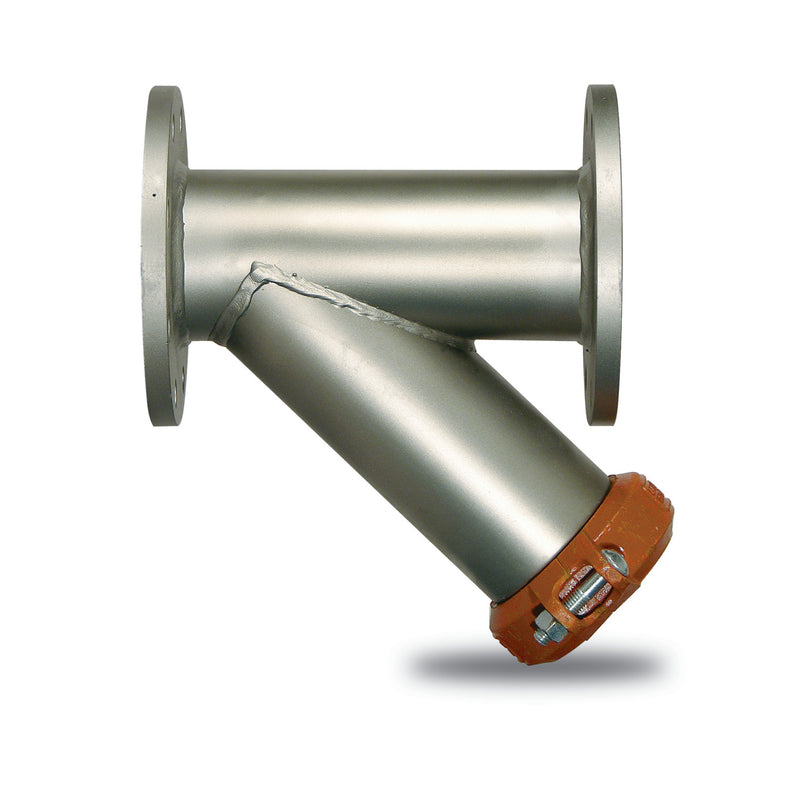

Watts 77F-SS 3 Strainer, Stainless, Flanged

The Watts 77F-SS 3 is a 3" wye-pattern strainer with Flanged connections that removes pipeline debris and particulates to protect downstream equipment. It features a stainless body and a epdm seat. Rated to 200 psi.

This stainless steel flanged wye pattern strainer, 3 inch Watts Model 77F-SS, is a lightweight fabricated strainer designed to remove dirt and other debris from fluid systems. A simple cover and coupling design permits easy cleaning or replacement of the screen.

Features

• Wye pattern
• Stainless steel body
• 304 stainless steel screen
• Flanged
• Includes: Strainer

Common Questions

Does it have a blowoff / blowdown port?

Yes. The retainer cap/cover is tapped for a blowoff connection, so you can flush accumulated debris by pulling the plug or piping a blowdown valve to it -- no need to break the strainer apart.

What is the "seat material" on a strainer?

A strainer has no seat -- nothing closes against anything. The EPDM called out here is the retainer-cap seal (the gasket between the cap and the body), which is what limits the temperature and chemical compatibility of the closure.

Specifications

• Type: Strainer
• Size: 3"
• Connection: Flanged
• Body Material: Stainless
• Cap Seal / Gasket Material: EPDM
• Max Pressure (WOG, psi): 200
• Application: Domestic Water
• Country of Origin: United States
• Warranty: 1 Year Limited
• MPN: 77F-SS 3
• Certifications: NSF-61
• Lead-Free: No
• Strainer Pattern: Wye
• Screen Material: 304 Stainless Steel
• Blowoff / Drain Tapping: Yes
• Body Coating: None
