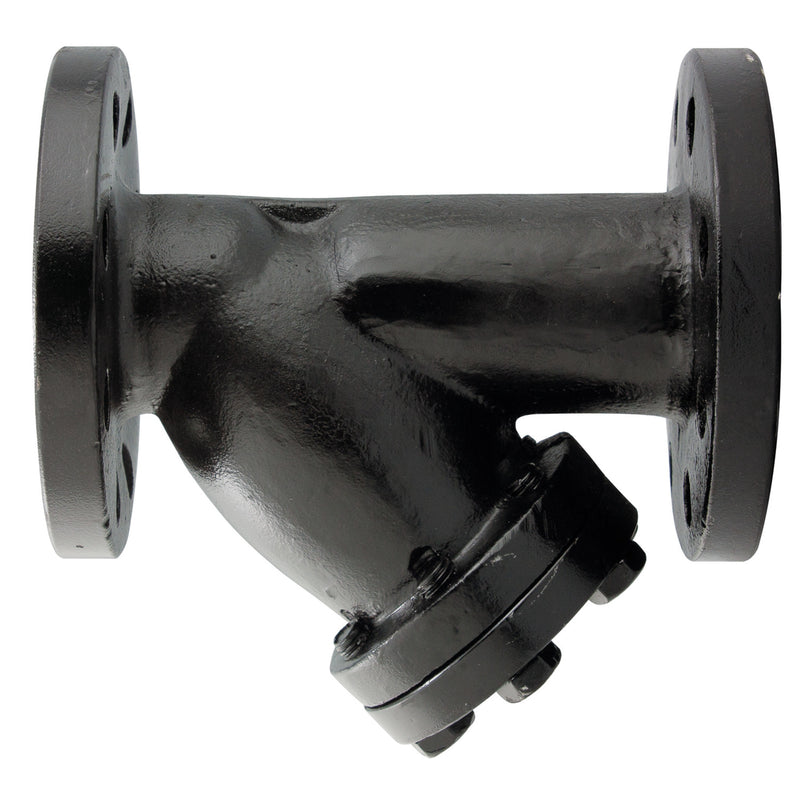

Watts 77F-DI-250 6 Strainer, Flanged

The Watts 77F-DI-250 6 is a 6" wye-pattern strainer with Flanged connections that removes pipeline debris and particulates to protect downstream equipment. It is rated to 500 psi.

This ductile iron flanged wye pattern strainer, 6 inch Watts Model 77F-DI-250, has a one piece cast body, bolted cover flange with flat gasket seal, 304 stainless steel perforated screens and a drain blow off connection plug.

Features

• One piece cast body
• Wye pattern
• Class 250 flanged connections
• Iron blow down plug
• Includes: Strainer

Common Questions

What screen does it come with?

77F-DI-250 6 uses a perforated 304 Stainless Steel screen. Watts does not publish a single hole size for this series -- confirm the opening against the spec sheet before ordering.

Does it have a blowoff / blowdown port?

Yes. The retainer cap/cover is tapped for a blowoff connection, so you can flush accumulated debris by pulling the plug or piping a blowdown valve to it -- no need to break the strainer apart. The closure plug is included.

Specifications

• Type: Strainer
• Size: 6"
• Connection: Flanged
• Pressure Class: Class 250
• Max Pressure (WOG, psi): 500
• Country of Origin: China
• Warranty: 1 Year Limited
• MPN: 77F-DI-250 6
• Lead-Free: No
• Strainer Pattern: Wye
• Screen Type: Perforated
• Screen Material: 304 Stainless Steel
• Blowoff / Drain Tapping: Yes
• Blowoff Plug Included: Yes
• Body Coating: None
