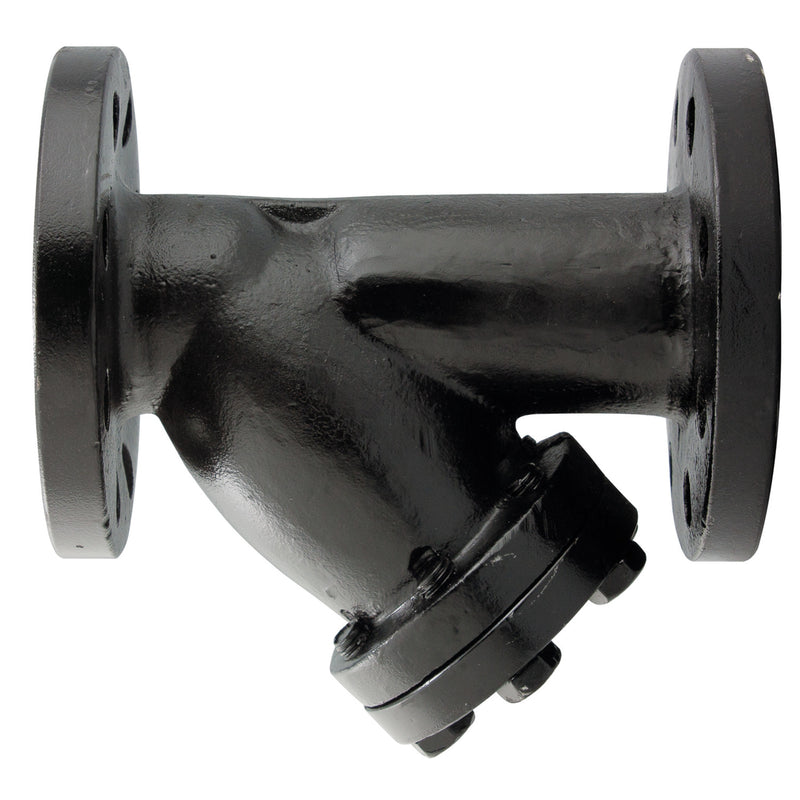

Watts 77F-DI-250 12 Strainer, Flanged

The Watts 77F-DI-250 12 is a 12" wye-pattern strainer with Flanged connections that removes pipeline debris and particulates to protect downstream equipment. It is rated to 500 psi.

This ductile iron flanged wye pattern strainer, 12 inch Watts Model 77F-DI-250, has a one piece cast body, bolted cover flange with flat gasket seal, 304 stainless steel perforated screens and a drain blow off connection plug.

Features

• One piece cast body
• Wye pattern
• Class 250 flanged connections
• Iron blow down plug
• Includes: Strainer

Common Questions

What screen does it come with?

77F-DI-250 12 uses a perforated 304 Stainless Steel screen. Watts does not publish a single hole size for this series -- confirm the opening against the spec sheet before ordering.

Does it have a blowoff / blowdown port?

Yes. The retainer cap/cover is tapped for a blowoff connection, so you can flush accumulated debris by pulling the plug or piping a blowdown valve to it -- no need to break the strainer apart. The closure plug is included.

Specifications

• Type: Strainer
• Size: 12"
• Connection: Flanged
• Pressure Class: Class 250
• Max Pressure (WOG, psi): 500
• Country of Origin: China
• Warranty: 1 Year Limited
• MPN: 77F-DI-250 12
• Lead-Free: No
• Strainer Pattern: Wye
• Screen Type: Perforated
• Screen Material: 304 Stainless Steel
• Blowoff / Drain Tapping: Yes
• Blowoff Plug Included: Yes
• Body Coating: None
