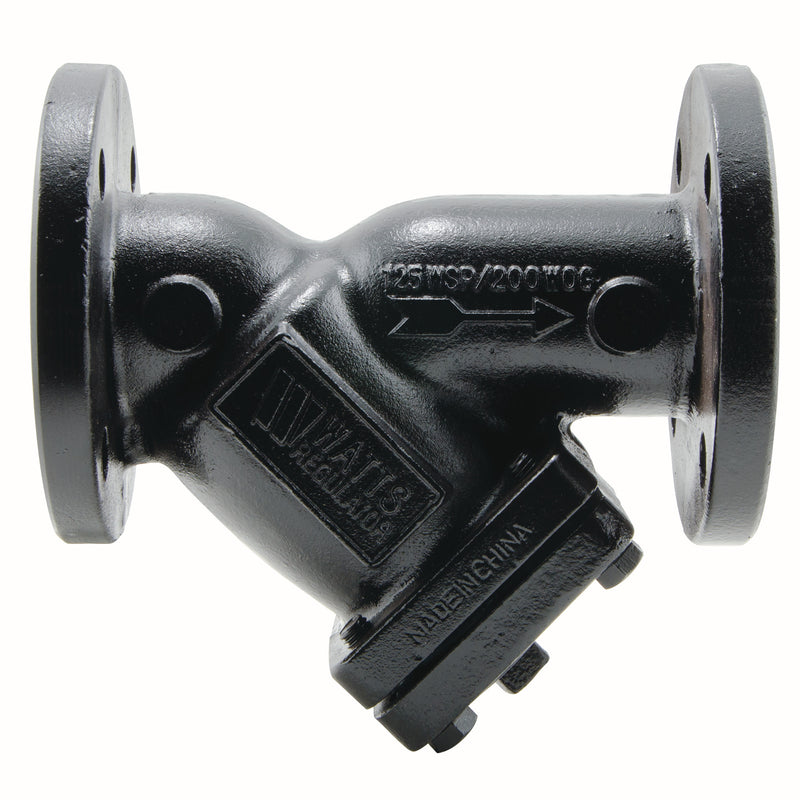

Watts 77F-DI-125 6 Strainer, Cast Iron, Flanged

The Watts 77F-DI-125 6 is a 6" wye-pattern strainer with Flanged connections that removes pipeline debris and particulates to protect downstream equipment. It features a cast iron body. Rated to 200 psi.

This Cast Iron Flanged Wye Pattern Strainer, 6" Watts Model 77F-DI-125, has 304 stainless steel perforated screens, a cast iron flanged retainer cap and a drain/blow off connection furnished with a closure plug.

Features

• Wye pattern
• Cast iron body
• 304 stainless steel perforated screens
• Flanged
• Includes: Strainer

Common Questions

What screen does it come with?

77F-DI-125 6 uses a perforated 304 Stainless Steel screen. Watts does not publish a single hole size for this series -- confirm the opening against the spec sheet before ordering.

Can I use this on steam?

Yes. 77F-DI-125 6 is rated 125 psi WSP on steam, which is a separate and much lower limit than its 200 psi WOG (cold water, oil, gas) rating. Do not size steam service off the WOG number.

Does it have a blowoff / blowdown port?

Yes. The retainer cap/cover is tapped for a blowoff connection, so you can flush accumulated debris by pulling the plug or piping a blowdown valve to it -- no need to break the strainer apart. The closure plug is included.

Specifications

• Type: Strainer
• Size: 6"
• Connection: Flanged
• Body Material: Cast Iron
• Pressure Class: Class 125
• Max Pressure (WOG, psi): 200
• Country of Origin: China
• Warranty: 1 Year Limited
• MPN: 77F-DI-125 6
• Lead-Free: No
• Strainer Pattern: Wye
• Screen Type: Perforated
• Screen Material: 304 Stainless Steel
• Blowoff / Drain Tapping: Yes
• Blowoff Plug Included: Yes
• Max Steam Pressure (WSP, psi): 125
• Body Coating: None
