The Watts 774-OSY 10 is a 10" lead-free double check valve assembly with Grooved connections, approved for low health hazard protection. It features a stainless body. Rated to 175 psi and 33°F to 110°F. This model is certified lead-free for potable-water installations.

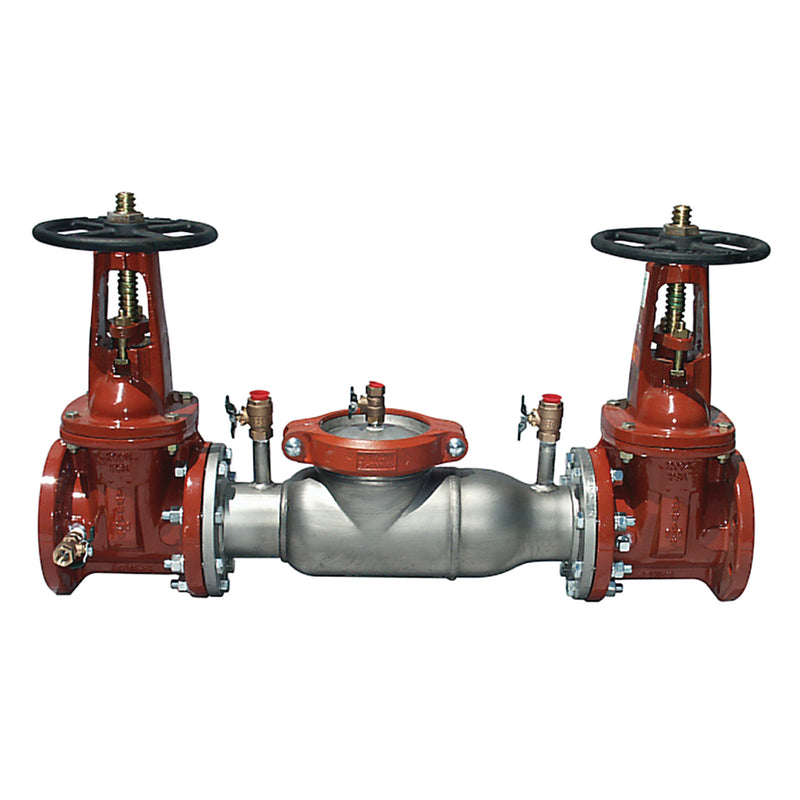

This lead free double check valve assembly backflow preventer, 10 inch, is designed to prevent the reverse flow of contaminated water of non-potable quality from being pumped or siphoned into the potable water supply due to backsiphonage and or backpressure in accordance with national plumbing codes and water authority requirements. It is ideal for protection at cross-connections identified as non-health hazard applications and from other contaminants found at the service line entrance. This compact and short lay length design with a single access cover for easy maintenance is approved with the arrow on the valve body pointing in the direction of the flow for vertical, horizontal, and retrofit installations. This assembly consists of a lightweight stainless steel body, resilient seated outside stem and yoke gate valves, spring loaded cam-check valves, and test cocks.
Features
- Stainless steel construction provides long term corrosion protection and maximum strength
- Single top access cover with two-bolt grooved style coupling for easy maintenance
- Thermoplastic and stainless steel check valves for trouble free operation
- Compact construction allows for smaller vaults and enclosures
- Includes: Test Cocks
Common Questions
- What hazard level is this Double Check approved for?
- It is rated for low health hazard (non-toxic, "pollutant") cross-connections only. Where the substance downstream could be a health hazard, codes require a reduced pressure zone (RPZ) assembly instead. The assembly is listed to ASSE 1015.
- Is this model legal for potable water?
- Yes. It is certified lead-free to NSF/ANSI 372, which is what state plumbing codes require for any device in a drinking-water line.
- Does this assembly have to be tested every year?
- Yes. This is a field-testable assembly with 4 test cocks. Most water authorities require it to be tested and certified by a licensed backflow tester at installation and annually thereafter.
- What shutoff valves are included?
- It is supplied with outside screw and yoke (OS&Y) gate valves on the inlet and outlet. OS&Y gates give the visible open/shut indication that fire-line and many water-authority specs require.
- Is this listed for fire protection service?
- Yes — it is UL Classified and FM Approved, the listings normally required for a backflow device on a fire sprinkler supply.
- How does this have to be installed?
- It is approved for either horizontal or vertical installation, with the flow arrow on the body pointing in the direction of flow.
Specifications
-
Type: Double Check
-
Size: 10"
-
Inlet Size: 10"
-
Outlet Size: 10"
-
Connection: Grooved
-
Body Material: Stainless
-
Max Pressure (psi): 175
-
Application: Domestic Water
-
Backflow Protection: Both
-
Operation: Continuous
-
Country of Origin: United States
-
Warranty: 1 Year Limited
-
MPN: 774-OSY 10
-
Temperature: 33°F to 110°F
-
Certifications: CSA-B64, UL, FM
-
Lead-Free: Yes
-
Assembly Type: Double Check
-
Hazard Protection Level: Low Health Hazard
-
ASSE Standard: ASSE 1015
-
USC FCCCHR Approved: No
-
Fire Protection Listing: UL Classified;FM Approved
-
Field Testable: Yes
-
Number of Test Cocks: 4
-
Shutoff Valves: OSY Gate
-
Approved Orientation: Horizontal & Vertical
-
Flood Sensor (SentryPlus Alert): No
-
Strainer Included: No
-
Air Gap Fitting Included: No
