Specifications
Description

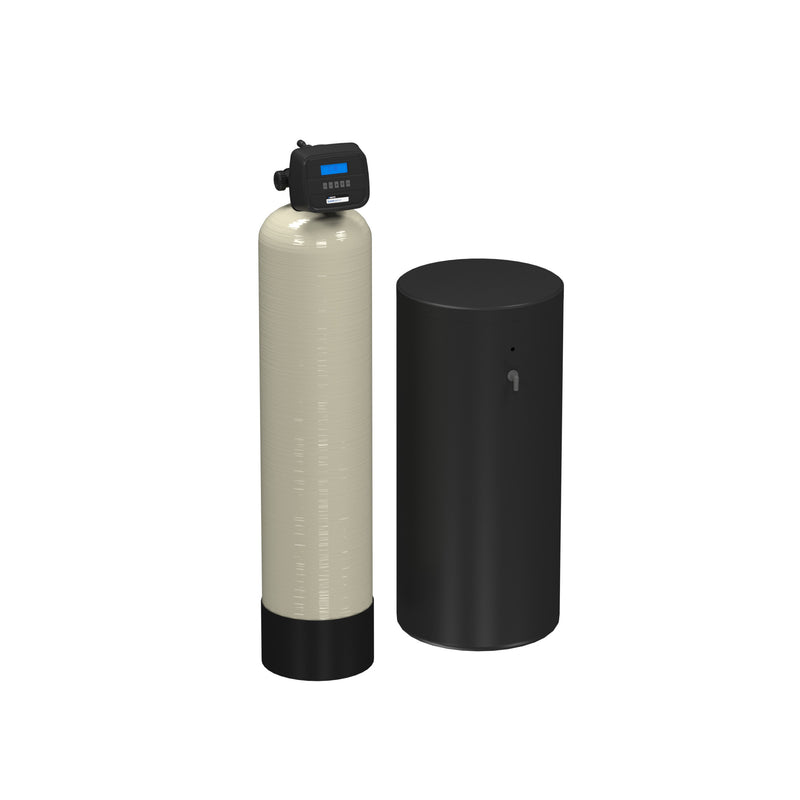

The Watts PWSL12590 is a cation resin complete system. It is rated to 125 psi.
This simplex water softening system, model PWSL12590, is a high efficient conventional cation exchange type water softener featuring the Watts LOCKSMITH™ control valve. It is designed for the point of use or point of entry applications where the benefits of softened water is required. The system has a 14 inch diameter mineral tank, contains 3 cubic feet of high capacity ion exchange resin, and has a peak flow rate of up to 23 gallons per minute. It has a 1.25" MNPT inlet and outlet and a 1/2" FNPT drain connection. This unit exchanges scale forming calcium and magnesium ions with non-scale forming sodium ions to create soft water for a variety of applications. The resin in this system is NSF and ANSI certified. The corrosion resistant brass control valve is operated by an electronic controller that stores key operational history that can be accessed by the user. The system is metered demand initiated so regeneration only occurs when necessary which saves time, water, and salt.
Features
- Watts LOCKSMITH exclusive controller with a visual color screen for at-a-glance status offers advanced programmable features
- High capacity blonde resin for reduced color throw
- Resin tank features a non-corrosive fiberglass tank with a thermoplastic inner liner, brine tank is a combination brine maker and salt storage vessel and is made of tough, corrosion free, high-density polyethylene
- 2-12V relay outputs for increased configurability and ability to energize external equipment
Common Questions
- What does it filter out?
- It uses cation resin media.
- What flow rate does it support?
- Rated service flow is 23 GPM.
Specifications
- Size: 1-1/4"
- Inlet Size: 1-1/4"
- Outlet Size: 1-1/4"
- Connection: FNPT
- Connection Gender: Female
- Max Pressure (psi): 125
- Application: Water Treatment
- Country of Origin: United States
- Warranty: 1 Year Limited
- MPN: PWSL12590
- Lead-Free: No
- System Role: Complete System
- Media Type: Cation Resin
- Service Flow (GPM): 23
Product Information
| SKU | UPC | Country of Origin | Warranty | Spec Sheet |
|---|---|---|---|---|
| 7101336 | 737733062691 | United States | 1 Year Limited | Download |
Dimensions
| Size Nominal | 1-1/4" | Inlet Size | 1-1/4" |
| Outlet Size | 1-1/4" | End Connection | FNPT |
| Connection Gender | Female | — | — |
Details
| Series | PWSL125 | Application | Water Treatment |
| Max Pressure PSI | 125.0 psi | Flow rate gpm | 23 GPM |
| Media type | Cation Resin | System role | Complete System |
