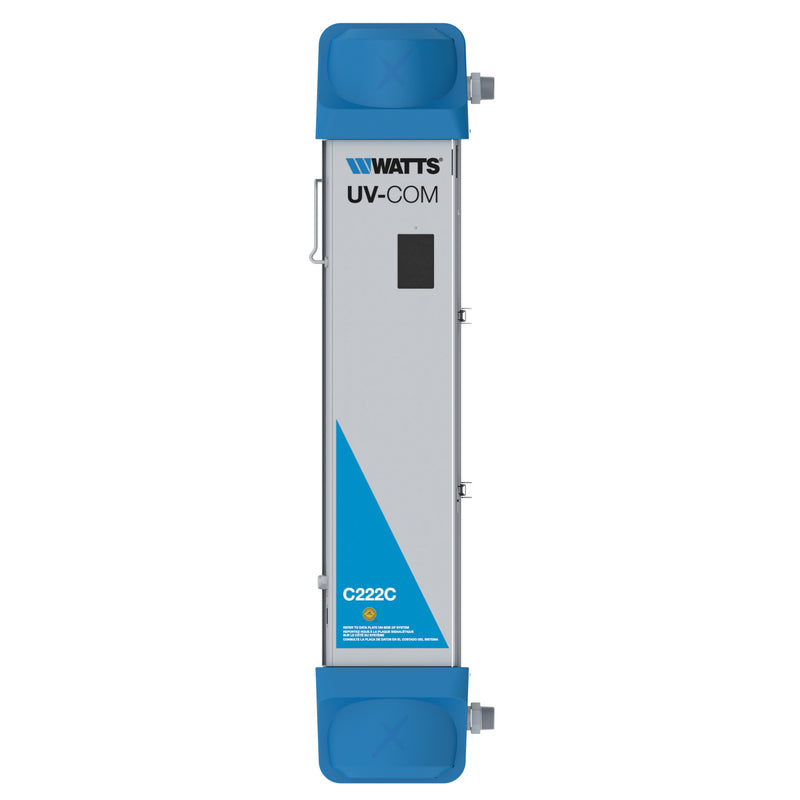

Watts C222C 1" Water Filtration System

The Watts C222C is a uv complete system. It is rated to 10 psi.

This UV disinfection solution treats inlet water to mitigate the presence of Legionella and its colonization in biofilm to protect building occupant health and improve the longevity of the water system. Watts model C222C, part of the UV-COM series, provides an advanced, effective, and virtually maintenance free system. The proprietary reactor design, built-in automatic self-cleaning wipers, and easily replaceable lamps set it apart in terms of both disinfection performance and ease of maintenance. Through a state-of-the-art 360-degree UV light emission provided by Crossfire™ Technology and a two-lamp design, the reactor significantly reduces Legionella being blocked from the UV light by particles. It remains effective at hardness levels as high as 50 grains per gallon and iron levels up to 3 mg/L. The UV-C222C unit is NSF 55A certified, and offers a flow rating of 27.4 GPM with a dual lamp design. The lamp power is 222 watts.

Features

• Dual lamp 222 watts, rated at 27.4 GPM
• 40mJ/cm2 UV dose with min 75 UVT, lamp life 12 months, NSF 55A certified
• Safe and easy maintenance with easy lamp change out smart sensors with self-cleaning function
• 360 degree coverage with Crossfire Technology

Common Questions

What does it filter out?

It uses uv media.

How much hardness will it remove between regenerations?

It is rated at 50 grains of capacity.

What flow rate does it support?

Rated service flow is 27 GPM.

Specifications

• Size: 1"
• Outlet Size: 1"
• Max Pressure (psi): 10
• Application: Water Treatment
• Country of Origin: Canada
• Warranty: 1 Year Limited
• MPN: C222C
• Lead-Free: No
• System Role: Complete System
• Media Type: UV
• Softener Capacity (grains): 50
• Service Flow (GPM): 27
