Specifications
Description

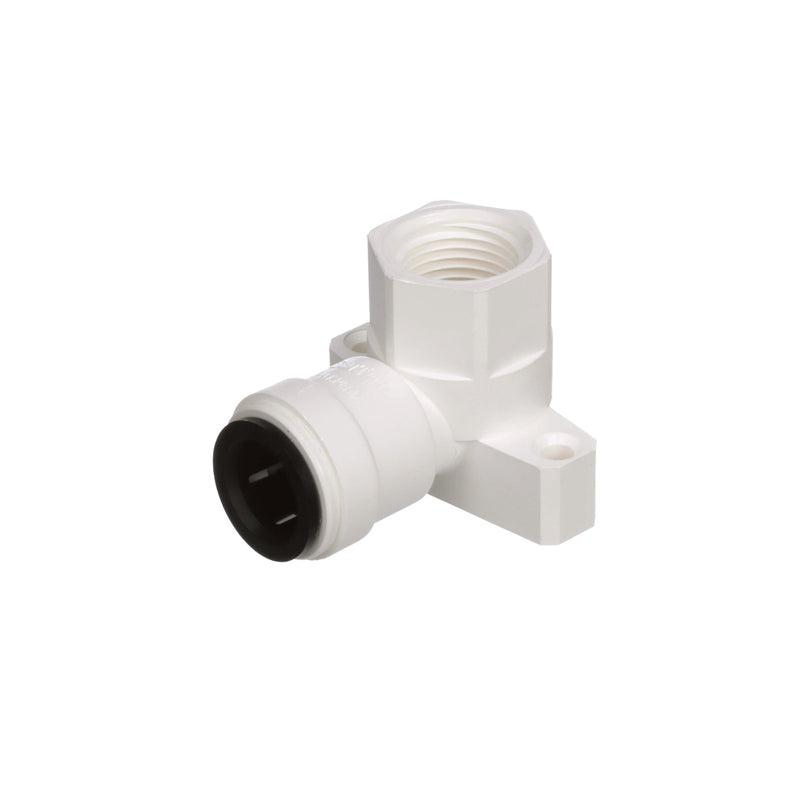

The Watts 3521-1008 is a polyethylene Push-to-Connect (CTS) elbow in 1/2" x 1". It features a polyethylene body.
This 1/2 inch CTS x 1/2 inch NPT AquaLock™ plastic drop ear elbow works with copper, CPVC, PEX, and CTS rated pipe. It is easy to install, no tools or tube inserts are required. The fitting can be used for hot and cold water applications. The unique O-ring guide feature provides a zero-leak connection. Unlike barb fittings, this fitting joins the tubing on the outside, increasing the flow capacity. After a connection has been made even under maximum pressure, the tubing is able to swivel, making the fitting ideal for vibrating and dynamic applications.
Features
- No tools required for installation or removal
- Rotates under pressure after installed for high flexibility during installation
- Can be used for hot and cold water applications, including behind the wall applications
- Works with copper, CPVC, PEX, and CTS rated pipe
- Zero-leak connections
- 25-year limited warranty
Common Questions
- How does it join the pipe?
- It is a Push-to-Connect (CTS) fitting. The port configuration is 1/2" x 1".
- What is it made of?
- The body is polyethylene.
- Is this a reducing fitting?
- The ports are 1/2" x 1". Match this against the run before ordering.
Specifications
- Size: 1/2"
- Inlet Size: 1/2"
- Outlet Size: 1/2"
- Connection: PEX
- Body Material: Polyethylene
- Pack Quantity: 30
- Country of Origin: China
- Warranty: 1 Year Limited
- MPN: 3521-1008
- Certifications: NSF-61, NSF-14, CSA-B137.5, CSA
- Lead-Free: No
- Fitting Type: Elbow
- Connection System: Push-to-Connect (CTS)
- Port Configuration: 1/2" x 1"
Please note: this item is sold in multiples of 5 units. Orders must be placed in quantities of 5, 10, 15, etc.
Product Information
| SKU | UPC | Country of Origin | Warranty | Spec Sheet |
|---|---|---|---|---|
| 0959092 | 098268299397 | China | 1 Year Limited | Download |
Dimensions
| Size Nominal | 1/2" | Inlet Size | 1/2" |
| Outlet Size | 1/2" | End Connection | PEX |
Details
| Series | Drop Ear Elbow 3521 | Body Material | Polyethylene |
| Pack Qty | 30 | Configuration | 1/2" x 1" |
| Connection system | Push-to-Connect (CTS) | Fitting type | Elbow |
Certifications & Standards
| NSF-61 | NSF-14 |
| CSA-B137.5 | CSA |
Compare with similar products
| Series | Drop Ear Elbow 3521
| Male Elbow 3519
| Stackable Elbow 3518
| Elbow 3517
| Stackable Elbow 3518
| Male Elbow 3519
|
| Country Of Origin | China
| China
| China
| United States
| China
| China
|
| Warranty | 1 Year Limited
| 1 Year Limited
| 1 Year Limited
| 1 Year Limited
| 1 Year Limited
| 1 Year Limited
|
| Spec Sheet | ||||||
| Size Nominal | 1/2"
| 3/4"
| 3/8"
| 3/8"
| 1"
| 1"
|
| Inlet Size | 1/2"
| 3/4"
| 3/8"
| 3/8"
| 1"
| 1"
|
| Outlet Size | 1/2"
| 3/4"
| 3/8"
| 3/8"
| 1"
| 1"
|
| End Connection | PEX
| PEX
| PEX
| PEX
| PEX
| PEX
|
| Body Material | Polyethylene
| Polyethylene
| Polyethylene
| Polyethylene
| Polyethylene
| Polyethylene
|
| Certifications | NSF-61, NSF-14, CSA-B137.5, CSA
| NSF-61, NSF-14, CSA-B137.5, CSA
| NSF-61, NSF-14, CSA-B137.5, CSA
| NSF-61, NSF-14, CSA-B137.5, CSA
| NSF-61, NSF-14, CSA-B137.5, CSA
| NSF-61, NSF-14, CSA-B137.5, CSA
|
| Pack Qty | 30
| 30
| 60
| 60
| 15
| 15
|
