Specifications
Description

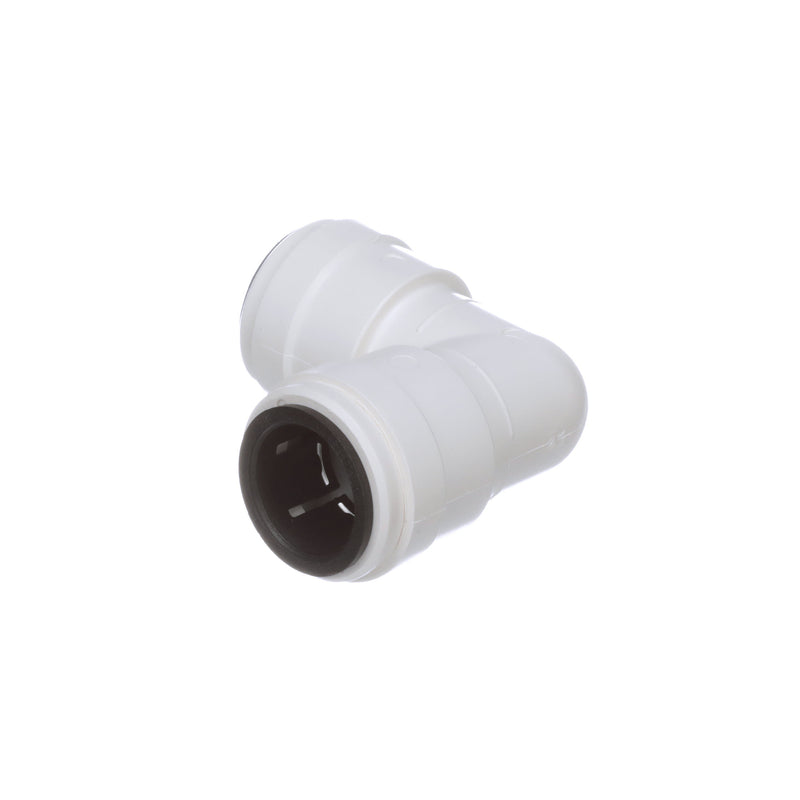

The Watts 3517 14CP is a polyethylene Push-to-Connect (CTS) elbow. It features a polyethylene body.
This 3/4 inch CTS AquaLock™ plastic elbow works with copper, CPVC, PEX, and CTS rated pipe. It is easy to install, no tools or tube inserts are required. The fitting can be used for hot and cold water applications. The unique O-ring guide feature provides a zero-leak connection. Unlike barb fittings, this fitting joins the tubing on the outside, increasing the flow capacity. After a connection has been made even under maximum pressure, the tubing is able to swivel, making the fitting ideal for vibrating and dynamic applications. Available in bulk quantities as contractor pack.
Features
- No tools required for installation or removal
- Rotates under pressure after installed for high flexibility during installation
- Can be used for hot and cold water applications, including behind the wall applications
- Works with copper, CPVC, PEX, and CTS rated pipe
- Zero-leak connections
- 25-year limited warranty
Common Questions
- How does it join the pipe?
- It is a Push-to-Connect (CTS) fitting.
- What is it made of?
- The body is polyethylene.
Specifications
- Size: 3/4"
- Inlet Size: 3/4"
- Outlet Size: 3/4"
- Connection: PEX
- Body Material: Polyethylene
- Pack Quantity: 50
- Country of Origin: United States
- Warranty: 1 Year Limited
- MPN: 3517 14CP
- Certifications: NSF-61, NSF-14, CSA-B137.5, CSA
- Lead-Free: No
- Fitting Type: Elbow
- Connection System: Push-to-Connect (CTS)
Please note: this item is sold in multiples of 10 units. Orders must be placed in quantities of 10, 20, 30, etc.
Product Information
| SKU | UPC | Country of Origin | Warranty | Spec Sheet |
|---|---|---|---|---|
| 81902936 | 840213003005 | United States | 1 Year Limited | Download |
Dimensions
| Size Nominal | 3/4" | Inlet Size | 3/4" |
| Outlet Size | 3/4" | End Connection | PEX |
Details
| Series | Elbow 3517 | Body Material | Polyethylene |
| Pack Qty | 50 | Connection system | Push-to-Connect (CTS) |
| Fitting type | Elbow | — | — |
Certifications & Standards
| NSF-61 | NSF-14 |
| CSA-B137.5 | CSA |
Compare with similar products
| Series | Elbow 3517
| Male Elbow 3519
| Stackable Elbow 3518
| Elbow 3517
| Stackable Elbow 3518
| Male Elbow 3519
|
| Country Of Origin | United States
| China
| China
| United States
| China
| China
|
| Warranty | 1 Year Limited
| 1 Year Limited
| 1 Year Limited
| 1 Year Limited
| 1 Year Limited
| 1 Year Limited
|
| Spec Sheet | ||||||
| Size Nominal | 3/4"
| 3/4"
| 3/8"
| 3/8"
| 1"
| 1"
|
| Inlet Size | 3/4"
| 3/4"
| 3/8"
| 3/8"
| 1"
| 1"
|
| Outlet Size | 3/4"
| 3/4"
| 3/8"
| 3/8"
| 1"
| 1"
|
| End Connection | PEX
| PEX
| PEX
| PEX
| PEX
| PEX
|
| Body Material | Polyethylene
| Polyethylene
| Polyethylene
| Polyethylene
| Polyethylene
| Polyethylene
|
| Certifications | NSF-61, NSF-14, CSA-B137.5, CSA
| NSF-61, NSF-14, CSA-B137.5, CSA
| NSF-61, NSF-14, CSA-B137.5, CSA
| NSF-61, NSF-14, CSA-B137.5, CSA
| NSF-61, NSF-14, CSA-B137.5, CSA
| NSF-61, NSF-14, CSA-B137.5, CSA
|
| Pack Qty | 50
| 30
| 60
| 60
| 15
| 15
|
