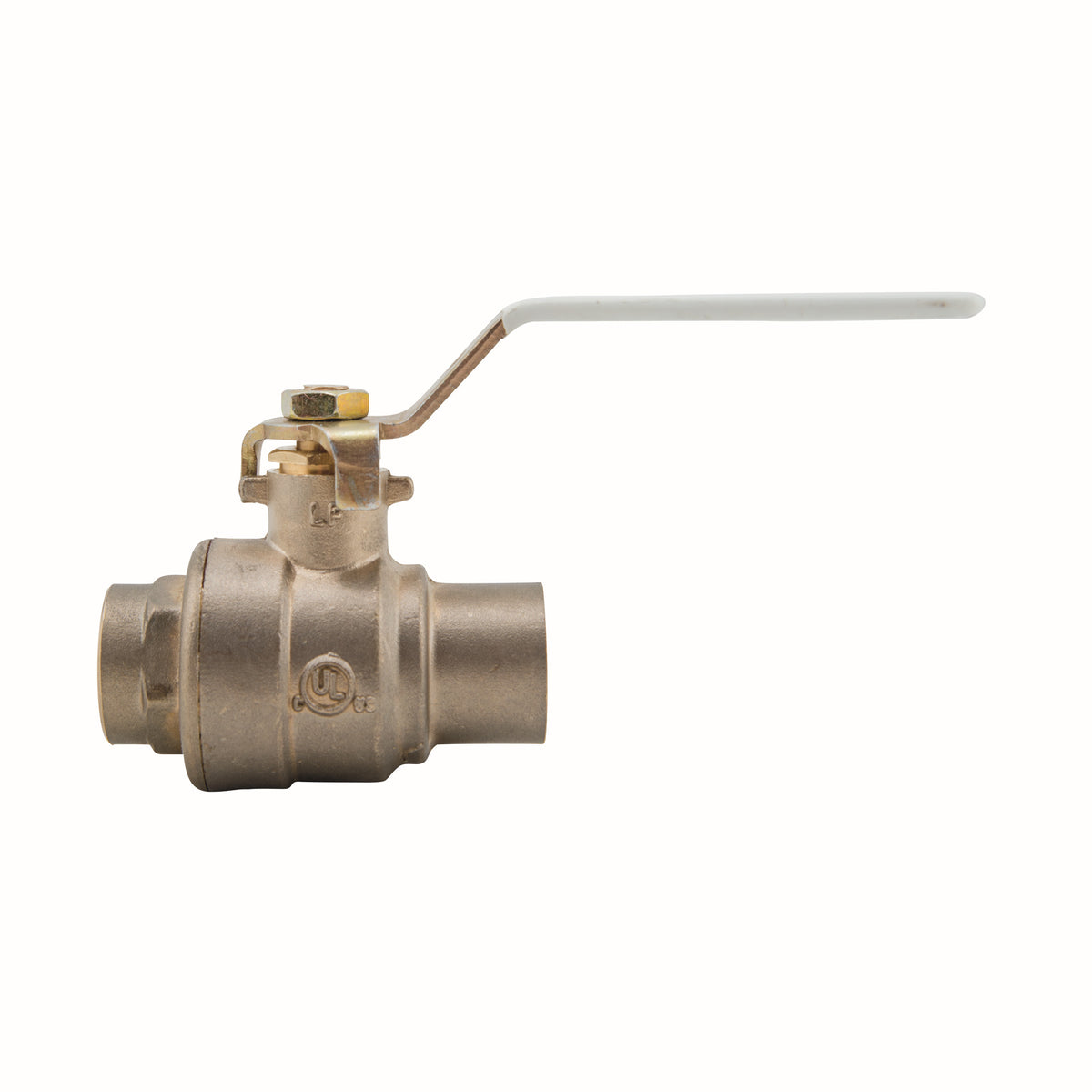

Watts 3 LFFBVS-3C-M1 Lead-Free Ball Valve, Brass, Sweat

The Watts 3 LFFBVS-3C-M1 is a 3" lead-free 2-piece full port ball valve with Sweat connections. It features a brass body and a ptfe seat. Rated to 600 psi and 0°F to 400°F. This model is certified lead-free for potable-water installations.

This 3 inch 2-piece full port lead free ball valve is used in residential, commercial, and industrial applications for potable water and a full range of liquids and gases. It features a lead free brass body with solder end connections, bottom-loaded blowout-proof stem, virgin PTFE seat, thrust washer, and adjustable stem packing gland, stem packing nut, chrome plated lead free brass ball, lead free brass adapter and steel handle. Certified NSF-61/ANSI 8.

Features

• Lead free brass body and adapter
• Machined chrome plated lead free brass ball
• Fluorocarbon elastomer stem O-ring prevents stem leaks
• Certified to NSF standard 61/ANSI 8

Common Questions

Is this full port or standard port?

Full port. The ball bore matches the 3" pipe ID, so the valve adds almost no restriction — the right choice for pump suction, main shutoffs, and any run where you cannot give up head.

Can I use this on natural gas or propane?

Yes. This model is CSA certified for fuel gas (ANSI Z21.15 / CSA 9.1) and is intended for natural gas and LP service on indoor piping. Install per local fuel-gas code.

Is this rated for potable water?

Yes. It is a lead-free model certified to NSF/ANSI 61 and NSF/ANSI 372, so it meets the Safe Drinking Water Act limit for potable-water service.

Can it be serviced without cutting it out?

No. A 2-piece body is not designed for in-line rebuild; it is replaced as a unit. Choose a three-piece valve (LFB6800 / S-6800 series) where in-line serviceability matters.

Specifications

• Type: Ball
• Size: 3"
• Inlet Size: 3"
• Outlet Size: 3"
• Connection: Sweat
• Body Material: Brass
• Seat / Seal Material: PTFE
• Max Pressure (psi): 600
• Application: Domestic Water
• Port Style: Full
• Ways: 2-Way
• Pack Quantity: 5
• Country of Origin: Mexico
• Warranty: 1 Year Limited
• MPN: 3 LFFBVS-3C-M1
• Temperature: 0°F to 400°F
• Certifications: UL, FM, NSF-61, CSA
• Lead-Free: Yes
• Valve Construction: 2-Piece
• Ball Material: Chrome-Plated Brass
• Blowout-Proof Stem: Yes
• Handle Type: Lever
• Actuation: Manual
• Fuel Gas Rated: Yes
• Integral Drain / Waste Port: No
